Bussmann 175SFMSJ50 - Medium Voltage Fuse 50A (17.5kV, 65kA AIC)
Bussmann 175SFMSJ50 - Medium Voltage Fuse 50A (17.5kV, 65kA AIC)
Bussmann 175SFMSJ50 - Medium Voltage Fuse 50A (17.5kV, 65kA AIC)
Bussmann 175SFMSJ50 - Medium Voltage Fuse 50A (17.5kV, 65kA AIC)

Bussmann 175SFMSJ50 - Medium Voltage Fuse 50A (17.5kV, 65kA AIC)

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

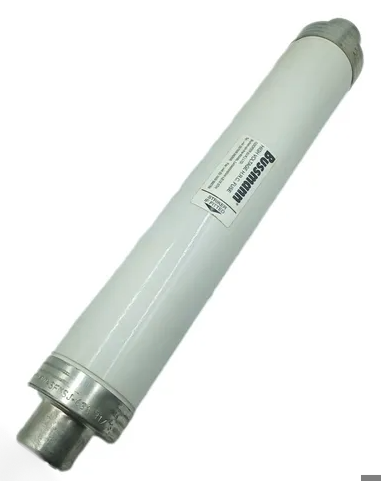

Bussmann 175SFMSJ50 is a medium-voltage current-limiting fuse designed for protecting electrical distribution equipment from short-circuit faults. It features a 17.5kV voltage rating and 50A current rating, providing reliable circuit interruption in demanding industrial environments. The fuse is constructed with a single-barrel design measuring 3.35 inches in diameter and features a 17.4-inch clip center spacing for standardized mounting. It complies with Class E fuse standards and delivers a 65kA interrupting capacity at 17.5kV for robust fault protection. Typical applications include motor control centers, transformers, and switchgear in industrial power distribution systems.

Key Features & Specifications
  • Type: Medium-voltage current-limiting fuse, single-barrel construction
  • Voltage Rating: 17500V AC
  • Current Rating: 50A
  • Dimensions: 3.35" diameter, 17.4" clip center spacing
  • Standards: Class E fuse rating
  • Applications: Industrial power distribution, motor control centers, transformers, switchgear
  • AIC rating: [email protected]
  • Weight: 11 lb
  • Barrels: 1
  • Class Rating: E
  • Item Subcategory: Medium Voltage
