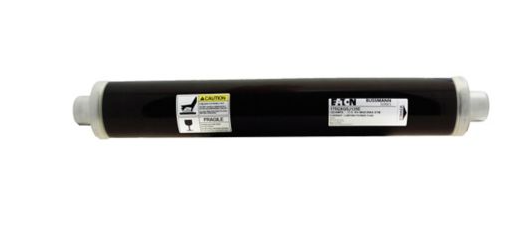

Bussmann 175GXQSJ150E - Class E Medium Voltage Fuse 150A 17.5kV

Bussmann
Price
Save $-4,035.55
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 175GXQSJ150E is a medium voltage fuse designed for high-current circuit protection in industrial power distribution systems. It provides reliable overcurrent protection with a 150A current rating and a 17.5kV voltage rating, suitable for medium-voltage applications. The fuse features a robust single-barrel construction with a 20.078-inch length and a DIN-style connection, ensuring secure mounting with a 537mm clip center spacing. It complies with industry standards for Class E fuses and offers an interrupting rating of 65kA at 17.5kV for effective fault current protection. Typical applications include protecting transformers, motors, and feeders in utility and industrial power networks.

Key Features & Specifications
  • Type: Medium Voltage Fuse, Class E, Single Barrel
  • Voltage Rating: 17500V
  • Current Rating: 150A
  • Dimensions: 20.078 in x 3.464 in x 3.464 in (Length x Height x Width)
  • Weight: 15.992 lb
  • Diameter: 89 mm
  • Standards: Class E Rating
  • Applications: Industrial Power Distribution, Transformer & Feeder Protection
  • AIC rating: [email protected]
  • Connection: DIN
  • Clip Center: 537 mm
  • Barrels: 1


Product Identification
  • UPC: 05171269190
  • GTIN: 00051712691901
