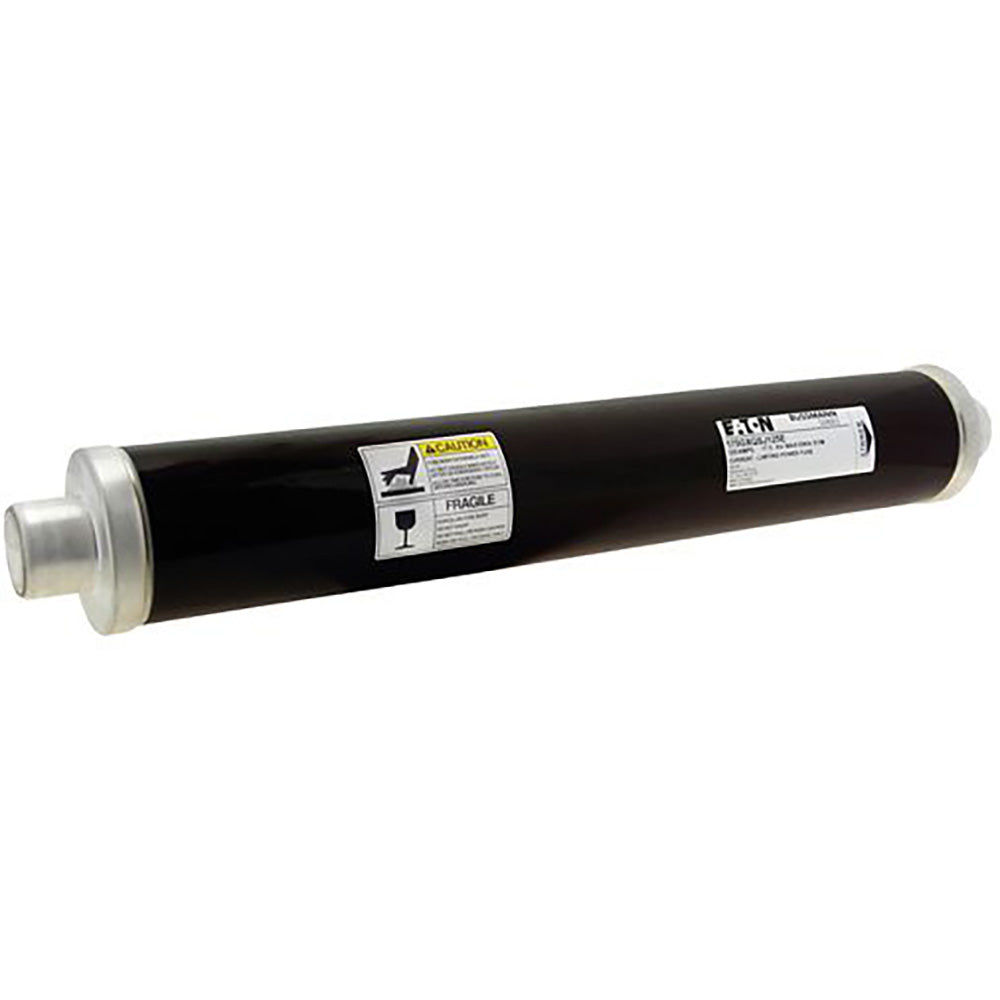

Bussmann 175GXQSJ125E - Class E Fuse 125A 17.5kV

Bussmann
Price
Save $-3,141.44
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 175GXQSJ125E is a medium voltage power distribution fuse designed for high-current protection in industrial electrical systems. It features a 125A current rating and a 17.5kV voltage rating, providing robust overcurrent protection for demanding applications. The fuse is constructed as a single-barrel, Class E device with DIN-style connections, measuring 20.078 inches in length with a 3.464-inch square cross-section and a clip center spacing of 537 mm. It is engineered to meet industry standards with an interrupting rating of 65kA at 17.5kV, ensuring reliable performance in medium-voltage switchgear, motor circuits, and transformer protection.

Key Features & Specifications
  • Type: Medium Voltage Power Distribution Fuse, Class E, single-barrel construction
  • Voltage Rating: 17500V AC
  • Current Rating: 125A
  • Dimensions: 20.078 in (L) x 3.464 in (H) x 3.464 in (W)
  • Standards: Designed to meet industry standards for medium voltage protection
  • Applications: Protection for medium-voltage switchgear, motors, and transformers
  • AIC rating: 65kA @ 17.5kV
  • Connection: DIN
  • Barrels: 1
  • Clip Center: 537 mm
  • Diameter: 89 mm
  • Class Rating: E
  • Weight: 15.804 lb


Product Identification
  • UPC: 05171269189
  • GTIN: 00051712691895
