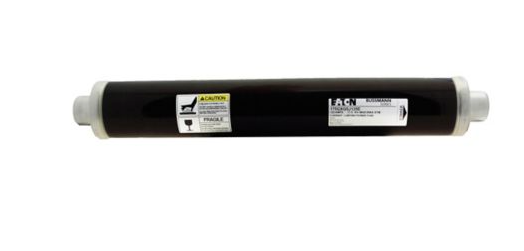

Bussmann 175GXMSJ80E - Medium Voltage DIN Fuse 17.5kV/80A (65kA AIC)

Bussmann 175GXMSJ80E is a medium voltage DIN fuse designed for high-voltage circuit protection in industrial applications. It features a 17.5kV voltage rating and 80A current capacity, with a compact 89mm diameter DIN-style construction for secure panel mounting. The fuse meets Class E standards with a 65kA interrupting capacity at 17.5kV, ensuring reliable protection against short circuits. Its 442mm clip center spacing and single-barrel design facilitate standardized installations. Typical applications include transformer protection, motor circuits, and medium-voltage distribution systems in utility and industrial environments.

Key Features & Specifications

• Type: Medium voltage DIN fuse with ceramic body
• Voltage Rating: 17500V AC
• Current Rating: 80A
• Dimensions: 89mm diameter
• Standards: Class E protection
• Applications: Industrial power distribution, transformer protection
• AIC rating: [email protected]
• Connection: DIN mounting
• Barrels: 1
• Clip Center: 442mm
• Weight: 15 lb

Product Identification

• UPC: 05171269188
• GTIN: 00051712691888
