Bussmann 175GFMSJ50E - Medium Voltage Fuse 17.5kV 65kA AIC
Bussmann 175GFMSJ50E - Medium Voltage Fuse 17.5kV 65kA AIC

Bussmann 175GFMSJ50E - Medium Voltage Fuse 17.5kV 65kA AIC

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

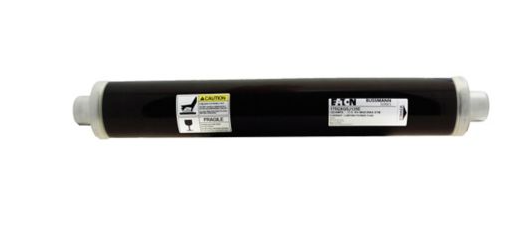

The Bussmann 175GFMSJ50E is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power distribution systems. It features a 17.5kV voltage rating and a 65kA interrupting capacity at its rated voltage, providing reliable protection against short-circuit faults. The fuse is constructed with a DIN-style connection and a single-barrel design, measuring 20.078 inches in length with a 76mm diameter and a weight of 10.449 lb. It complies with industry standards for medium voltage applications, making it suitable for use in motor control centers, transformers, and feeder circuits within utility and industrial settings.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, DIN-Style Fuse
  • Voltage Rating: 17500V AC
  • Interrupting Rating (AIC): 65kA @ 17.5kV
  • Dimensions: 20.078 in x 2.992 in x 2.992 in (L x H x W)
  • Diameter: 76 mm
  • Connection Type: DIN
  • Barrels: 1
  • Weight: 10.449 lb


Product Identification
  • UPC: 05171269185
  • GTIN: 00051712691857
