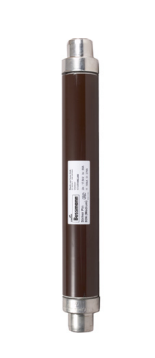

Bussmann 175GDMSJ30E - Medium Voltage Fuse 30A 17.5kV (65kA AIC)

Bussmann
Price
Save $-2,123.80
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 175GDMSJ30E is a medium voltage fuse designed for high-voltage circuit protection in industrial power distribution systems. It provides reliable overcurrent protection with a voltage rating of 17.5kV and a continuous current rating of 30A, featuring a DIN-style connection and a single-barrel construction with a diameter of 51mm. The fuse is built to withstand high fault currents, offering an interrupting rating of 65kA at 17.5kV, and complies with Class E standards for consistent performance. Its physical dimensions are 20.078 in x 2.106 in x 2.007 in (L x H x W) with a weight of 14.79 lb and a clip center spacing of 442mm, making it suitable for switchgear, motor control centers, and transformer protection applications.

Key Features & Specifications
  • Type: DIN-style, single-barrel medium voltage fuse
  • Voltage Rating: 17500V AC
  • Current Rating: 30A
  • Dimensions: 20.078 in x 2.106 in x 2.007 in (Length x Height x Width)
  • Standards: Class E rating
  • Applications: Industrial power distribution, switchgear, motor control centers, transformer protection
  • AIC rating: 65kA @ 17.5kV
  • Connection: DIN
  • Barrels: 1
  • Diameter: 51 mm
  • Clip Center: 442 mm
  • Weight: 14.79 lb


Product Identification
  • UPC: 005171269183
  • GTIN: 00051712691833
