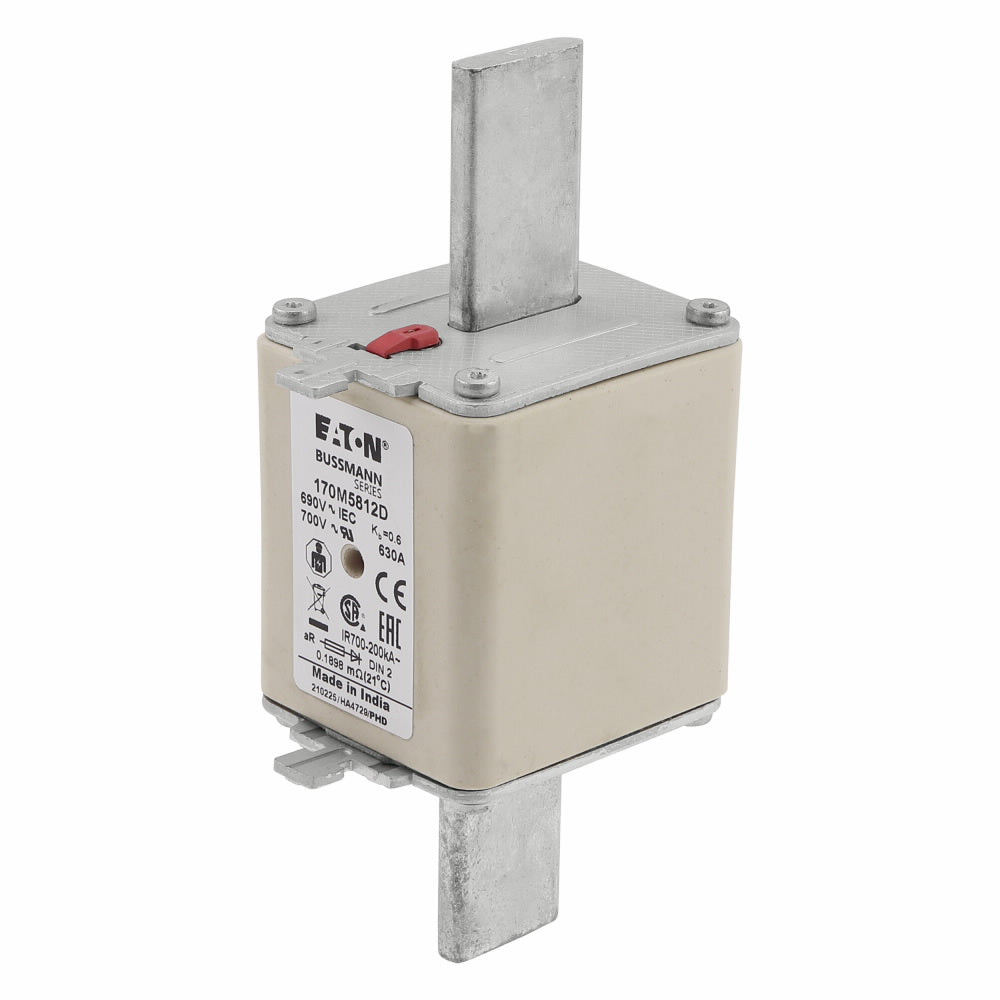

Bussmann 170M5812D - DIN Fuse 630A (200kA AIC @ 690V)

Bussmann
Price
Save $1,205.31
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 170M5812D is a low voltage fuse designed for providing high-performance short-circuit protection in industrial power distribution systems. It features a 630A current rating and a 690V voltage rating, engineered to safely interrupt faults up to 200kA. The fuse is constructed with a DIN-type (DINTYPET) body measuring 150 mm x 72 mm x 54 mm and utilizes a knife blade connection for secure installation. It complies with the aR (partial range) fuse class standard for motor circuit protection. Typical applications include safeguarding motor circuits, feeders, and busbars within industrial control panels and switchgear.

Key Features & Specifications
  • Type: DINTYPET, Low Voltage Fuse, partial range (aR) protection class
  • Voltage Rating: 690V
  • Current Rating: 630A
  • Dimensions: 150 mm (Length/Depth) x 72 mm (Height) x 54 mm (Width)
  • Weight: 1.5617 lb
  • Standards: aR Class Rating
  • Applications: Industrial motor circuit protection, feeder protection, busbar protection
  • Connection: Knife Blade
  • AIC rating: 200kA @ 690V


Product Identification
  • UPC: 05171233452
  • GTIN: 00051712334525
