Bussmann 170M4417 - Type B Fuse 700A 690V (200kA AIC)

Bussmann
Price
Save $-597.75
/
Title
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

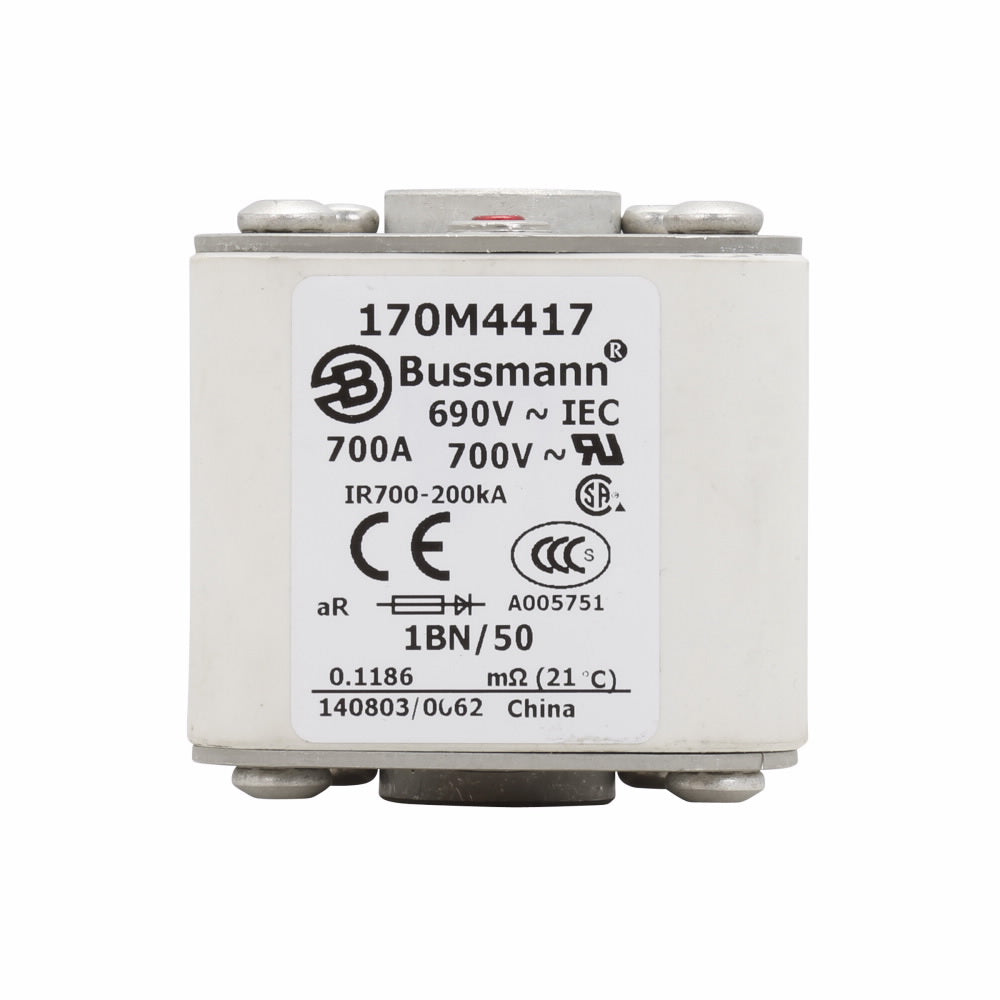

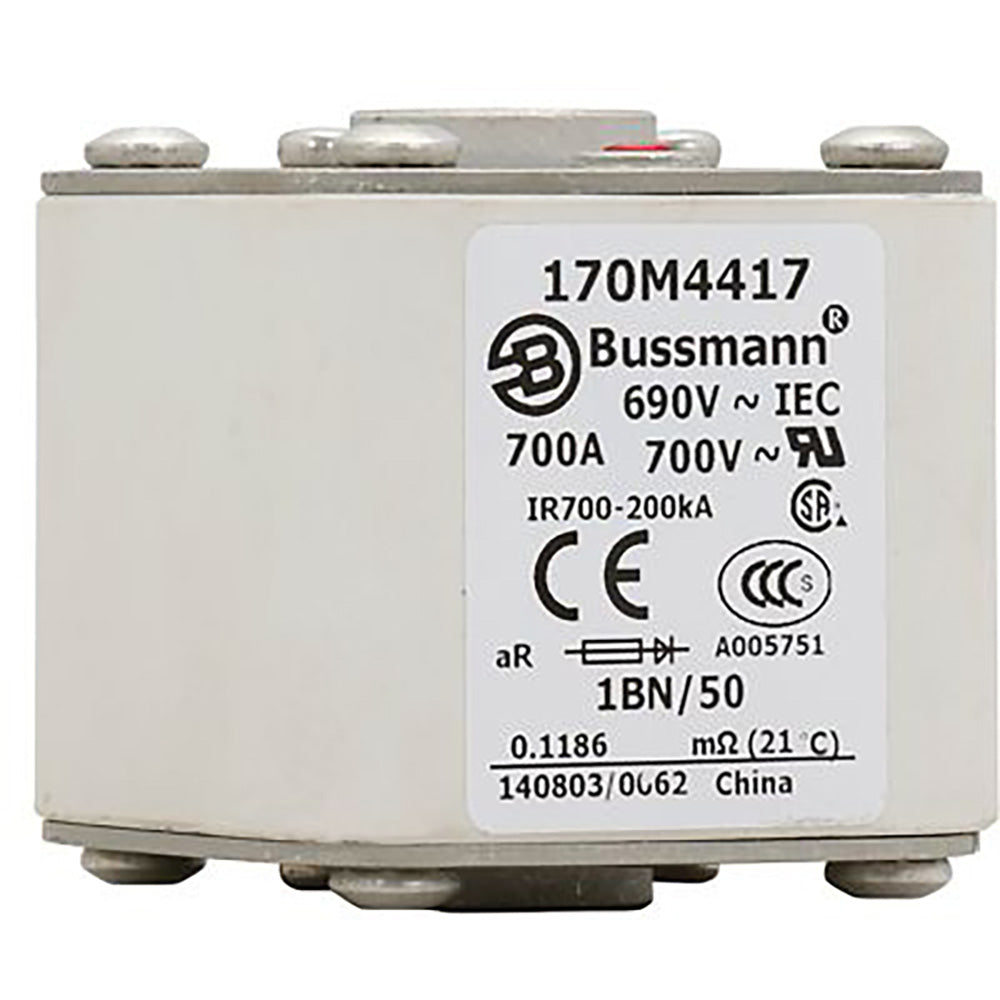

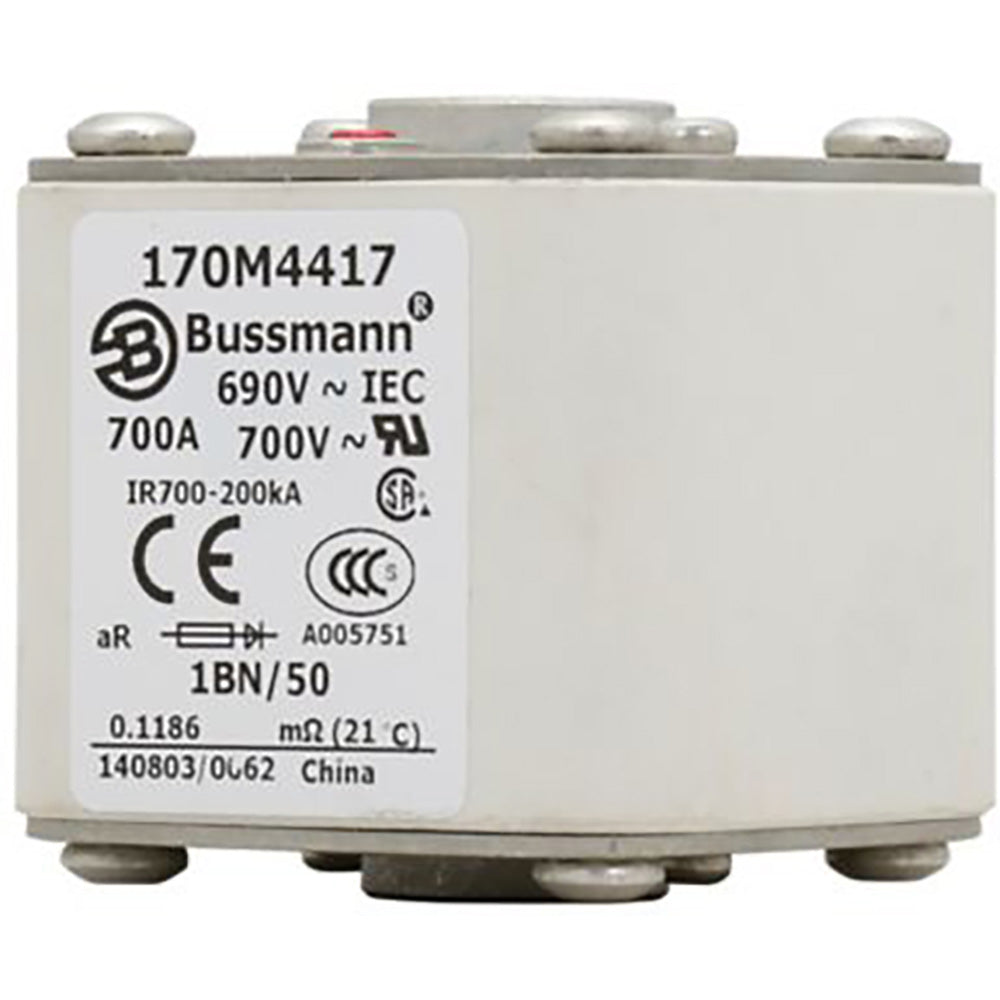

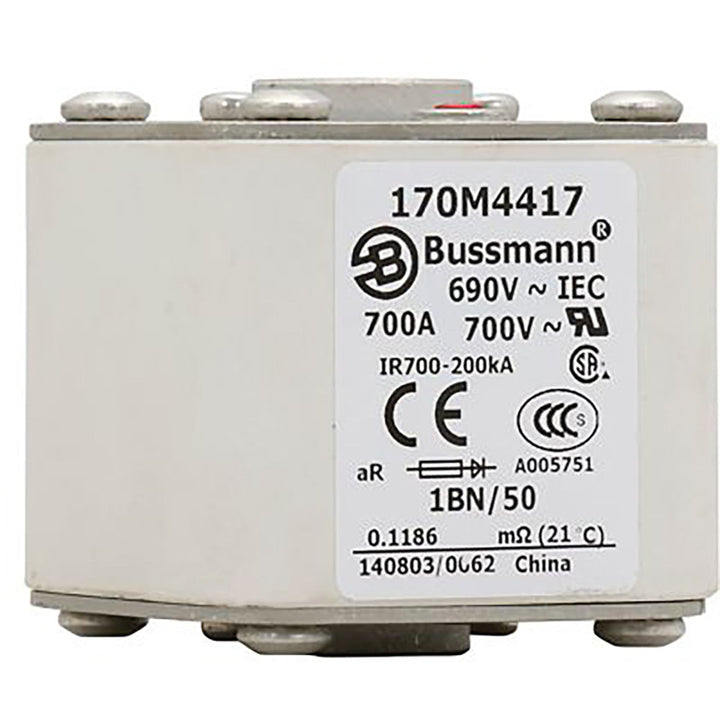

The Bussmann 170M4417 is a Type B low-voltage fuse designed for high-current circuit protection in industrial power distribution systems. It features a 700A current rating and a 690V voltage rating, providing robust protection for demanding applications. The fuse is constructed with a compact form factor measuring 107 mm x 63 mm x 53 mm and utilizes a tapped metric connection for secure installation. It complies with the aR (partial range) fuse class standard, offering a high interrupting capacity of 200kA at 690V to safely clear severe short-circuits. This fuse is typically applied in motor protection, feeder circuits, and main service entrances where reliable high-breaking capacity is critical.

Key Features & Specifications
  • Type: Type B, Low Voltage Fuse, aR (partial range) class
  • Voltage Rating: 690V AC
  • Current Rating: 700A
  • Dimensions: 107 mm (L) x 63 mm (H) x 53 mm (W)
  • Weight: 0.8763 lb
  • Standards: aR Class Rating
  • Applications: Industrial power distribution, motor protection, feeder circuits
  • Connection: Tapped Metric
  • AIC Rating: 200kA @ 690V


Product Identification
  • UPC: 051712258760
  • GTIN: 00051712258760
