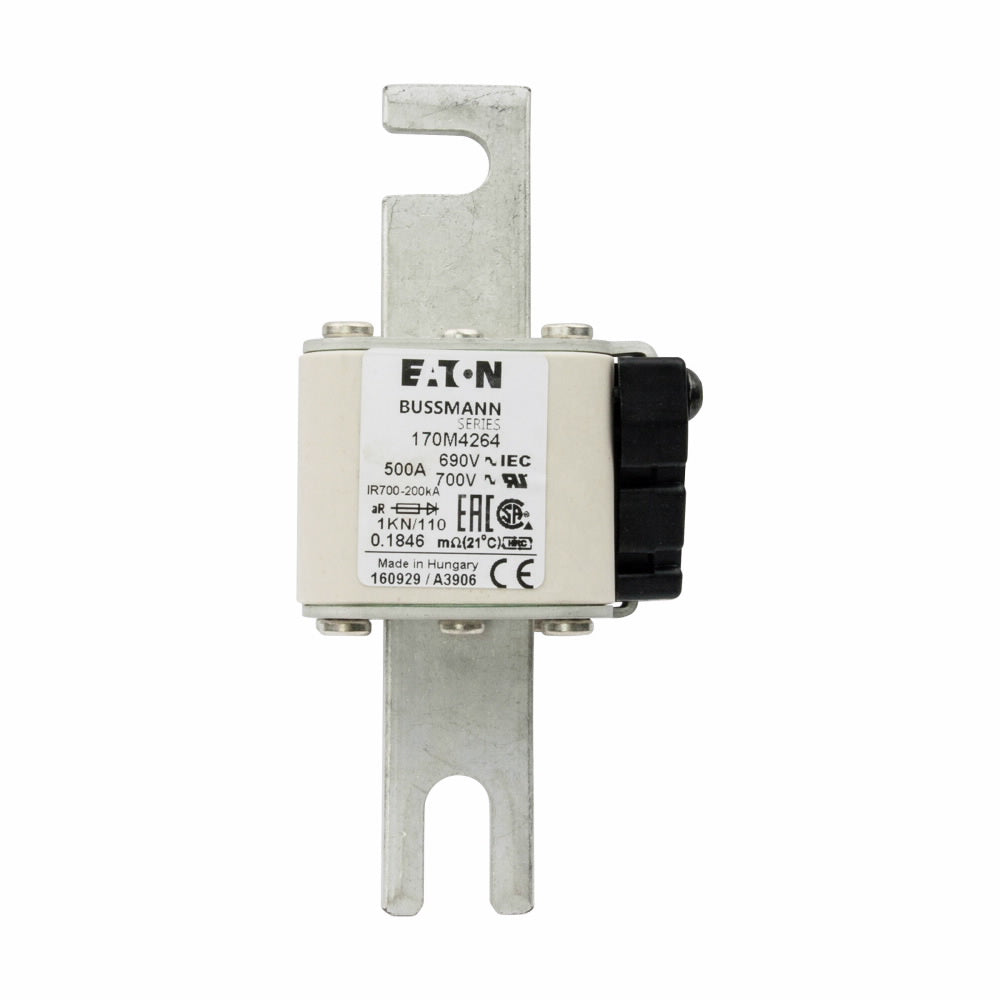

Bussmann 170M4264 - DIN43653 Fuse 500A 690V (200kA AIC)

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann 170M4264 is a DIN43653 low-voltage fuse designed for high-performance short-circuit protection in industrial power distribution systems. It features a 500A current rating and a 690V voltage rating, providing robust protection for demanding applications. The fuse is constructed with a knife-blade connection type and measures 245 mm x 62 mm x 142 mm (Length/Depth x Height x Width), weighing 1.1477 lb. It complies with the aR (partial-range) fuse class standard and offers an interrupting capacity of 200kA at 690V, ensuring reliable operation under severe fault conditions. Typical applications include protecting motor circuits, transformers, and capacitor banks within industrial control panels and switchgear.

Key Features & Specifications
  • Type: DIN43653 low-voltage fuse with partial-range (aR) protection class
  • Voltage Rating: 690V
  • Current Rating: 500A
  • Dimensions: 245 mm x 62 mm x 142 mm (Length/Depth x Height x Width)
  • Weight: 1.1477 lb
  • Standards: aR fuse class
  • Applications: Industrial power distribution, motor circuit protection, transformer protection
  • Connection: Knife Blade
  • AIC rating: 200kA@690V


Product Identification
  • UPC: 05171225832
  • GTIN: 00051712258326
