Bussmann 170M3907 - SB-0 Class Fuse 350A (200kA@690V AIC)

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

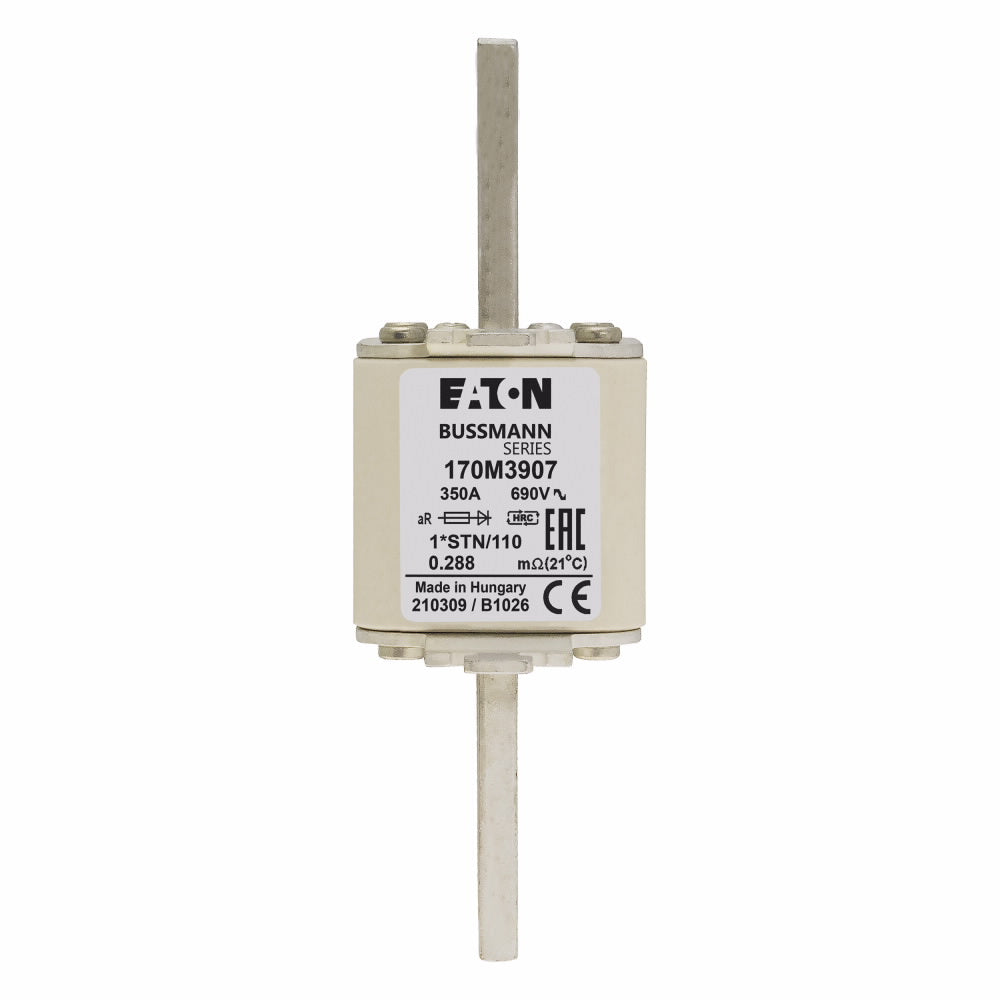

The Bussmann 170M3907 is a low-voltage, high-interrupting capacity fuse designed to provide reliable overcurrent protection in demanding industrial power distribution systems. It features a 350A current rating and a 690V voltage rating, with a robust 200kA interrupting rating at 690V to safely clear high-level faults. The fuse is constructed with a European blade connection style and conforms to the SB-0 class rating, housed within a compact form factor measuring 305 mm in length, 65 mm in height, and 145 mm in width with a weight of 0.7337 lb. It is engineered to meet stringent industry standards for performance and safety in high-voltage applications. Typical applications include protecting motor circuits, transformers, and feeder lines within industrial control panels and switchgear.

Key Features & Specifications
  • Type: Low Voltage Fuse, European Blade Connection, SB-0 Class
  • Voltage Rating: 690V
  • Current Rating: 350A
  • Dimensions: 305 mm x 65 mm x 145 mm (L x H x W)
  • Weight: 0.7337 lb
  • Standards: SB-0 Class Rating
  • Applications: Industrial power distribution, motor protection, feeder protection
  • AIC rating: 200kA @ 690V
  • Connection: European Blade
  • Class Rating: SB-0


Product Identification
  • UPC: 051712562577
  • GTIN: 00051712562577
