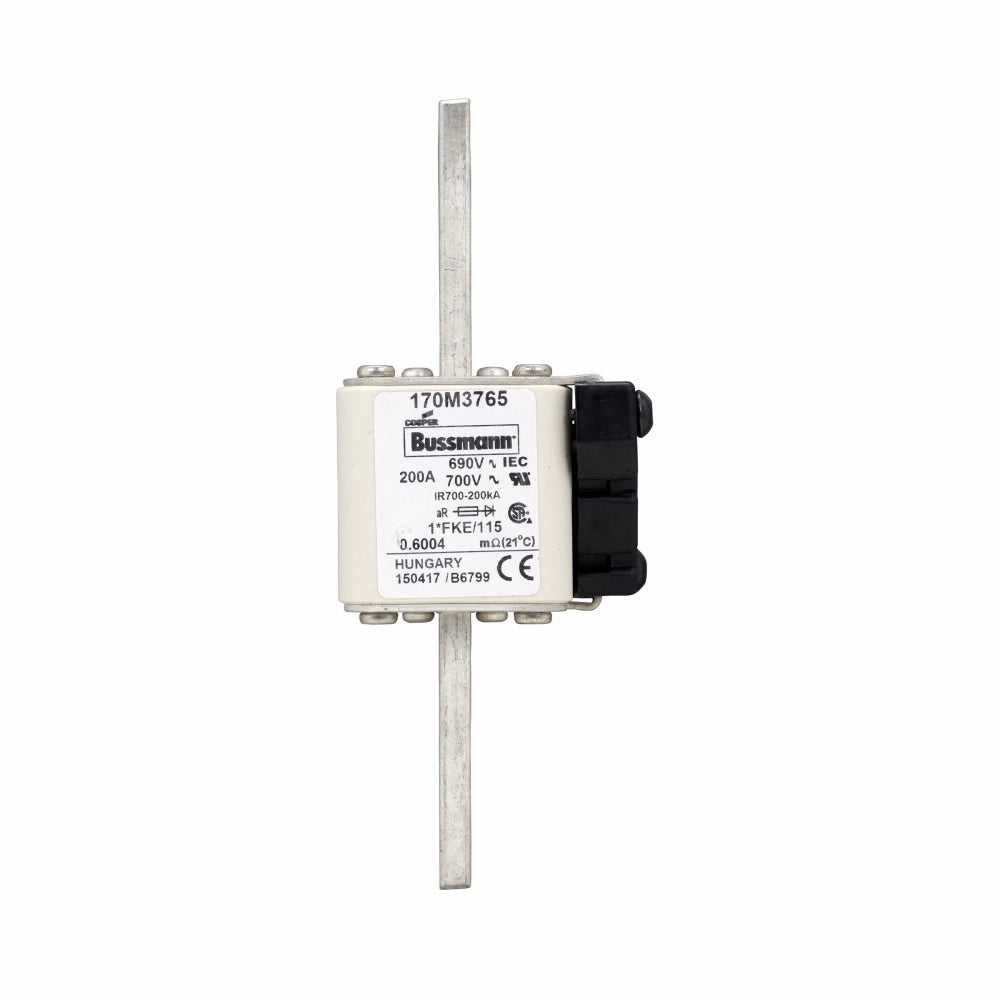

Bussmann 170M3765 - USSTYLE Fuse 200A (200kA AIC, 690V)

Bussmann
Price
Save $422.23
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 170M3765 is a low voltage fuse designed for providing high-performance, partial-range (aR class) short-circuit protection in industrial electrical systems. It is rated for 200A at 690V AC and features a bolt-on connection for secure installation in compatible fuse holders or disconnects. The fuse is constructed in a USSTYLE form factor with dimensions of 92 mm x 60 mm x 163 mm (Length/Depth x Height x Width) and a weight of 0.4048 lb, engineered to interrupt faults with an impressive 200kA AIC rating at 690V AC to protect downstream equipment.

Key Features & Specifications
  • Type: USSTYLE, Low Voltage Fuse, Partial-Range (aR) Short-Circuit Protection
  • Voltage Rating: 690V AC
  • Current Rating: 200A
  • Dimensions: 92 mm x 60 mm x 163 mm (L/D x H x W)
  • Class Rating: aR
  • Connection: Bolt On
  • AIC Rating: 200kA @ 690V AC
  • Weight: 0.4048 lb


Product Identification
  • UPC: 051712257220
  • GTIN: 00051712257220
