Bussmann 170M3665 - USSTYLE Fuse 200A (200kA AIC, 690V)

Bussmann
Price
Save $325.84
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

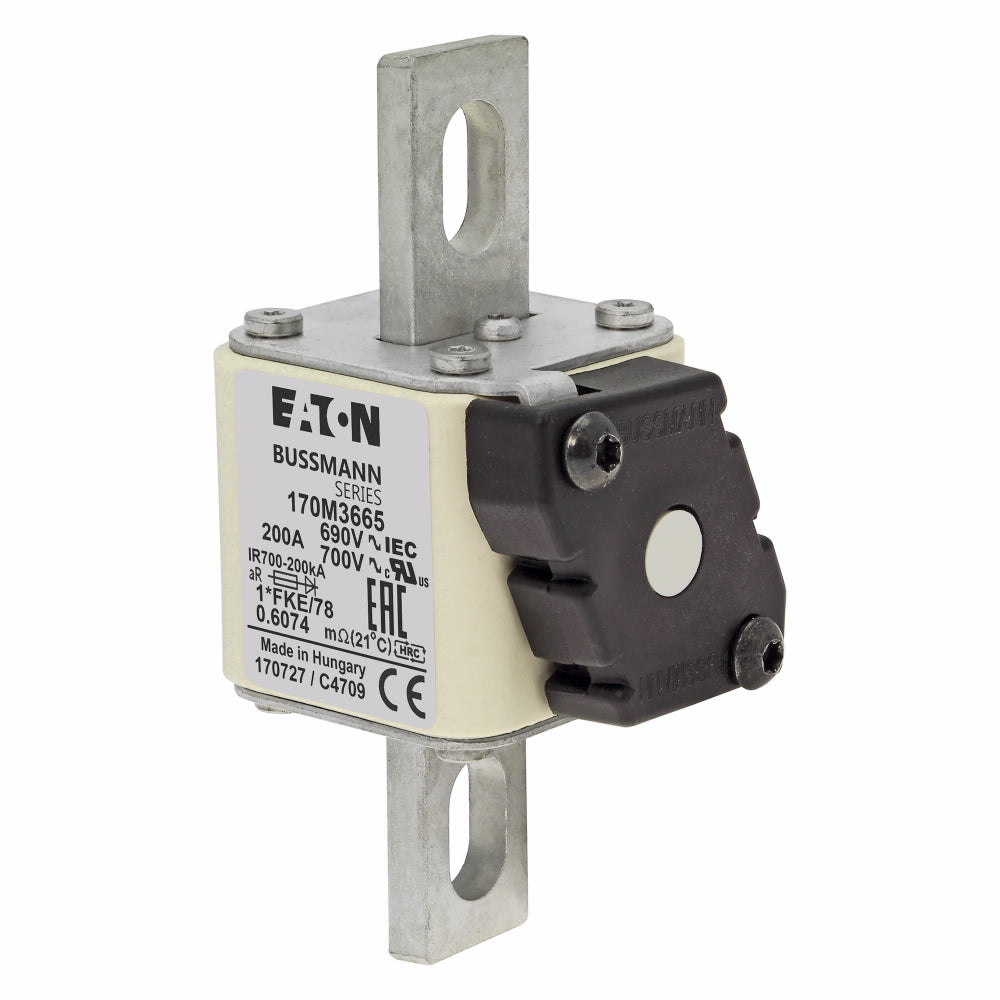

The Bussmann 170M3665 is a low-voltage, current-limiting fuse designed to provide high-performance short-circuit protection for industrial electrical systems. It features a 200A current rating and a 690V AC voltage rating, with a high interrupting capacity of 200kA at its rated voltage. The fuse is constructed in a USSTYLE form factor with bolt-on connections and measures 305 mm in length, 65 mm in height, and 145 mm in width, with a weight of 0.7337 lb. Its Class aR rating indicates it is specifically intended for the backup protection of semiconductor devices, ensuring compliance with relevant industry standards for safeguarding sensitive power conversion equipment like drives and rectifiers.

Key Features & Specifications
  • Type: Low-voltage, current-limiting, USSTYLE fuse for backup protection (Class aR)
  • Voltage Rating: 690V AC
  • Current Rating: 200A
  • Dimensions: 305 mm (L) x 65 mm (H) x 145 mm (W)
  • Weight: 0.7337 lb
  • Connection: Bolt On
  • AIC Rating: 200kA @ 690V AC
  • Class Rating: aR
  • Standards: Designed for industrial protection standards
  • Applications: Backup protection for semiconductors in drives, rectifiers, and power conversion systems


Product Identification
  • UPC: 051712815161
  • GTIN: 00051712815161
