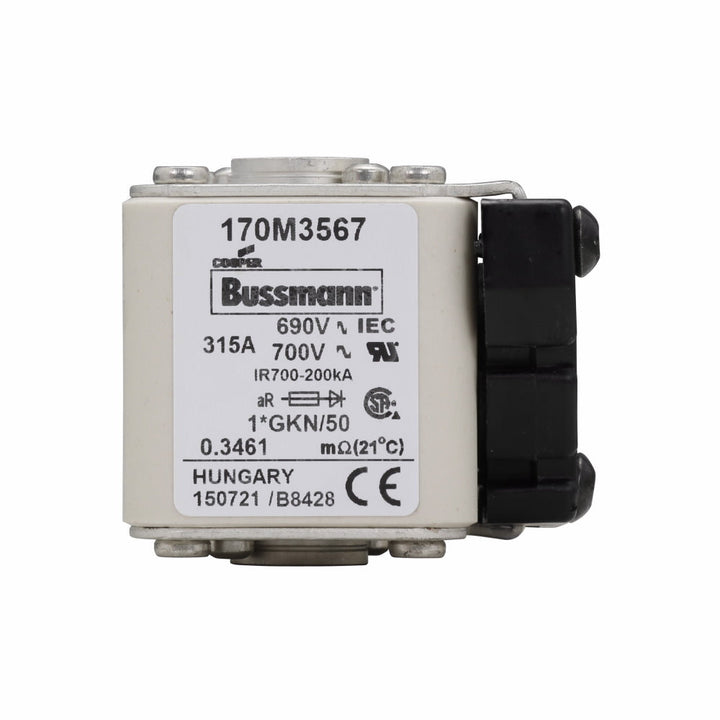

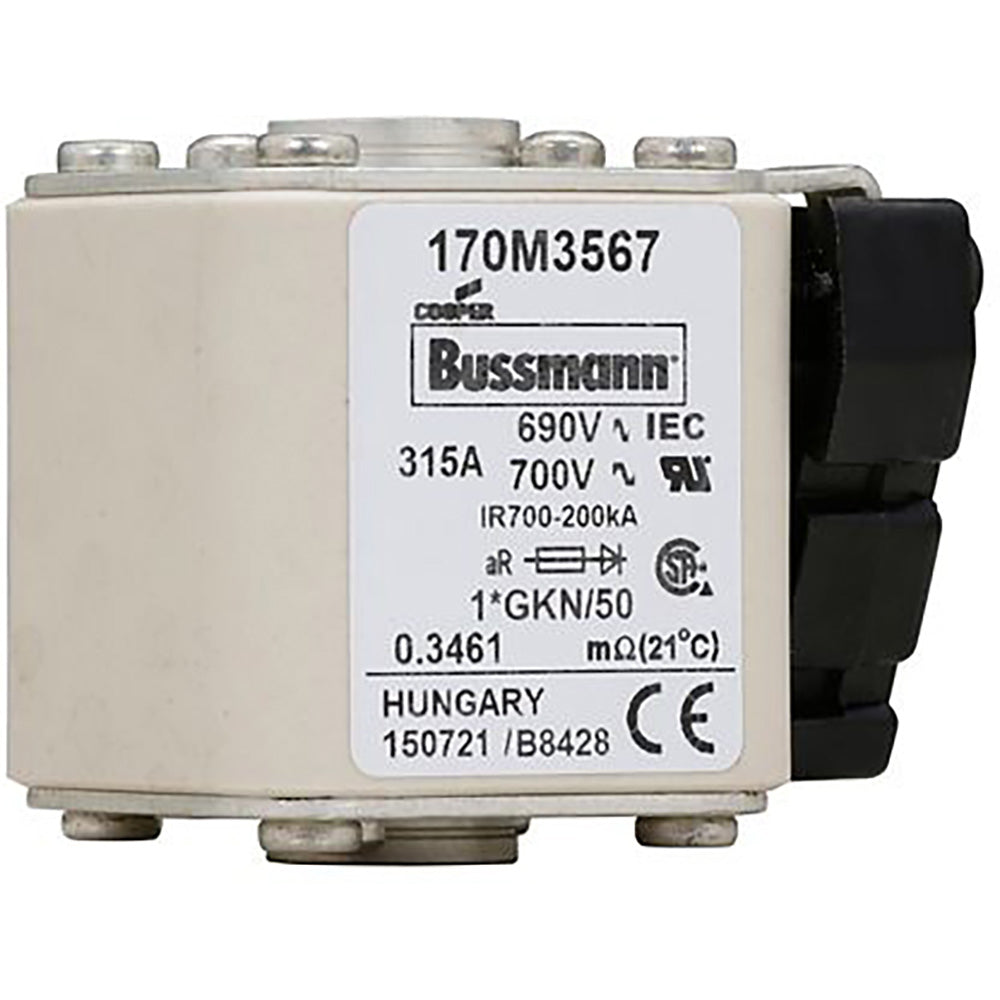

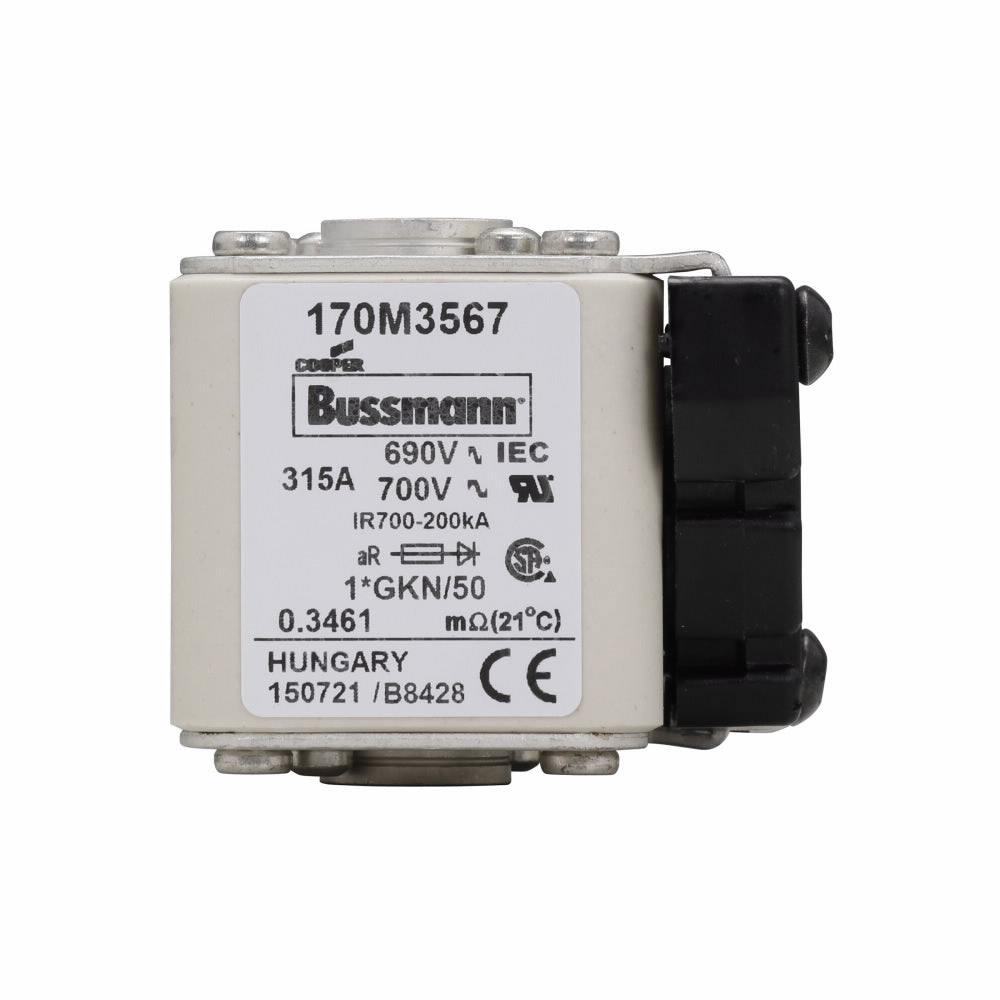

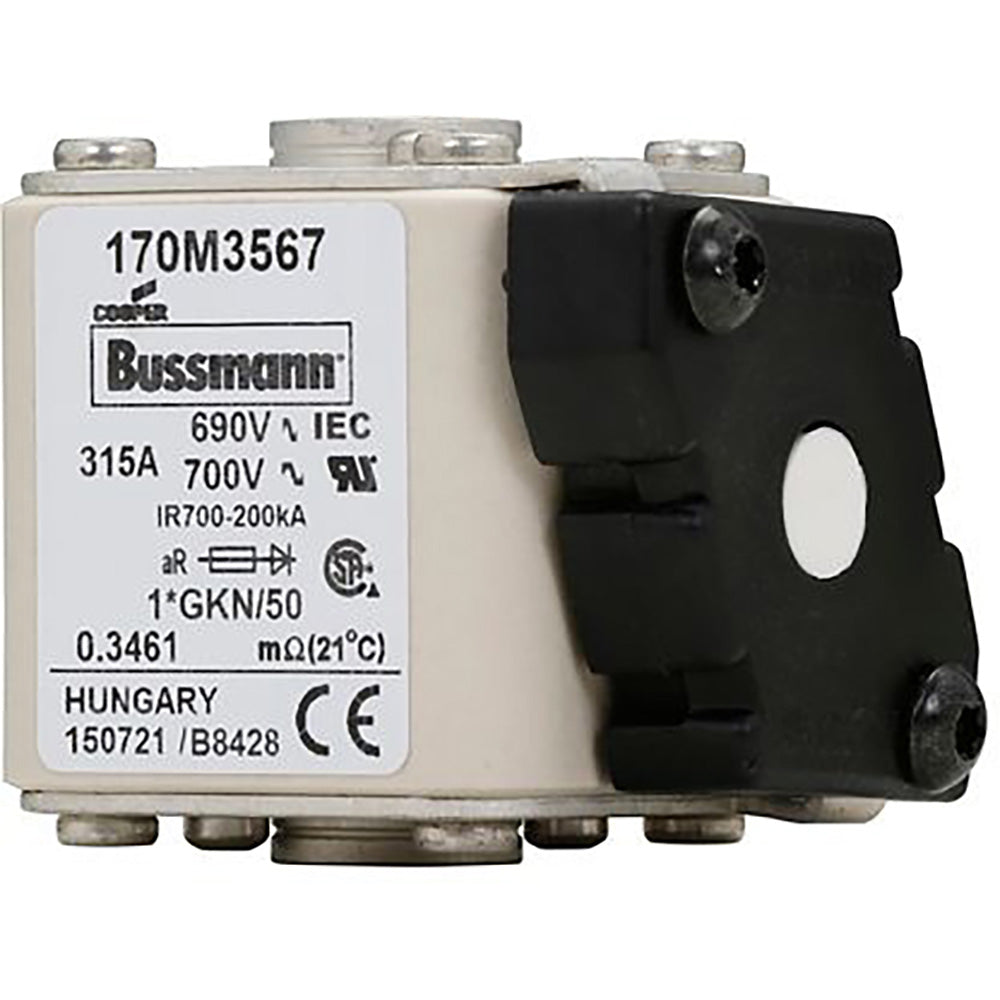

Bussmann 170M3567 - NH Fuse 315A 700V (200kA AIC)

Bussmann 170M3567 is a medium voltage NH fuse designed for high-current circuit protection in industrial power systems. Rated for 700V AC with a 315A current capacity, it features a flush connection design and robust construction for reliable operation in demanding environments. The fuse meets aR class standards with an interrupting capacity of 200kA@690Vac, ensuring protection against short circuits and overloads. Its 10 lb weight reflects durable construction suitable for medium voltage applications. Typical uses include motor protection, transformer circuits, and industrial power distribution systems requiring high breaking capacity.

Key Features & Specifications

• Type: NH medium voltage fuse with ceramic body and sand-filled arc quenching
• Voltage Rating: 700V AC
• Current Rating: 315A
• Class Rating: aR (partial range breaking capacity)
• AIC Rating: 200kA@690Vac
• Connection: Flush termination
• Weight: 10 lb
• Standards: IEC 60269, UL 248
• Applications: Industrial motor protection, transformer circuits, power distribution

Product Identification

• GTIN: 00051712256582
