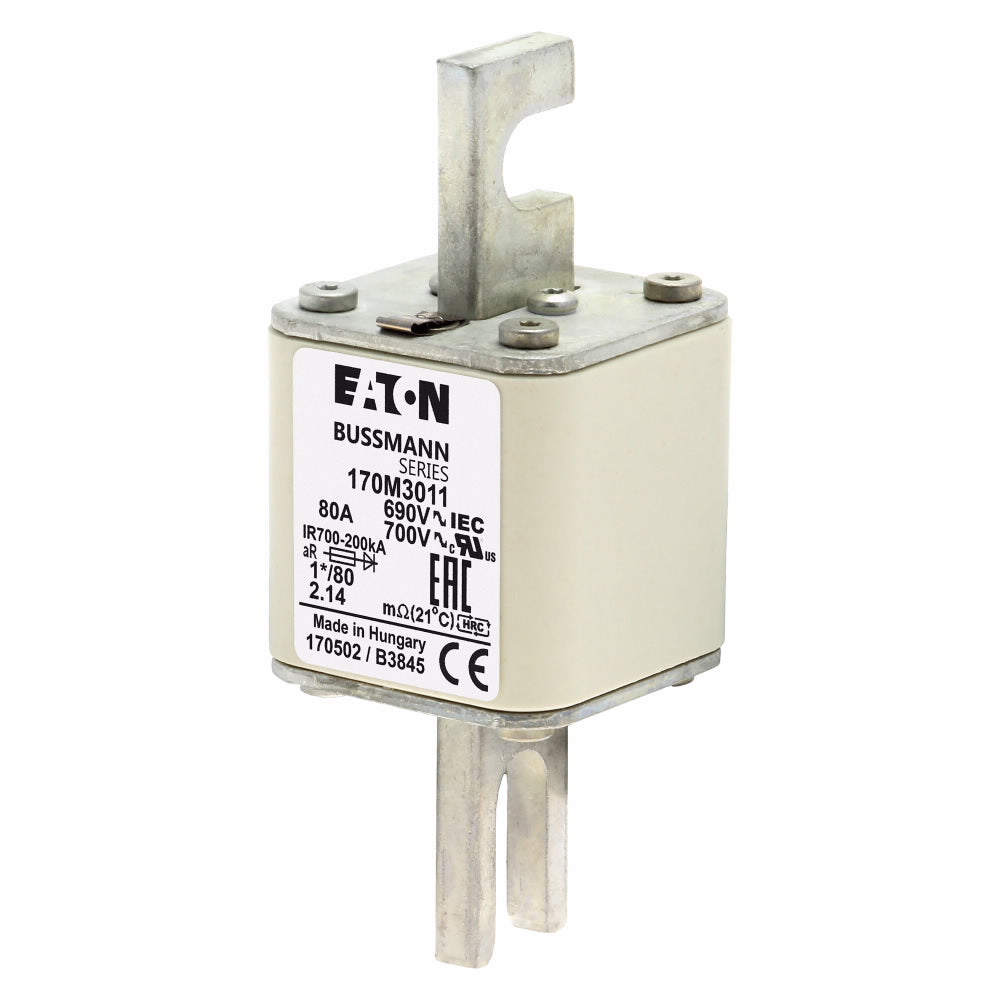

Bussmann 170M3011 - NH Fuse 80A (200kA AIC, 690V)

Bussmann
Price
Save $4,397.22
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann 170M3011 is a low-voltage NH-type fuse designed for providing high-performance short-circuit protection in industrial power distribution systems. It features a 690V AC voltage rating and an 80A current rating, housed within a robust 305 mm x 65 mm x 145 mm (L x H x W) body with knife blade connections for secure mounting. Constructed to meet aR (partial-range) class standards, it offers an interrupting capacity of 200kA at 690V AC to safely clear high-level faults. This fuse is typically applied in motor protection circuits, feeder protection, and industrial control panels where reliable protection against short-circuits is critical.

Key Features & Specifications
  • Type: Low-voltage NH (knife blade) fuse, aR class for partial-range short-circuit protection
  • Voltage Rating: 690V AC
  • Current Rating: 80A
  • Dimensions: 305 mm (Length/Depth) x 65 mm (Height) x 145 mm (Width)
  • Connection: Knife Blade
  • AIC Rating: 200kA @ 690V AC
  • Class Rating: aR
  • Weight: 0.81 lb


Product Identification
  • UPC: 05171225456
  • GTIN: 00051712254564
