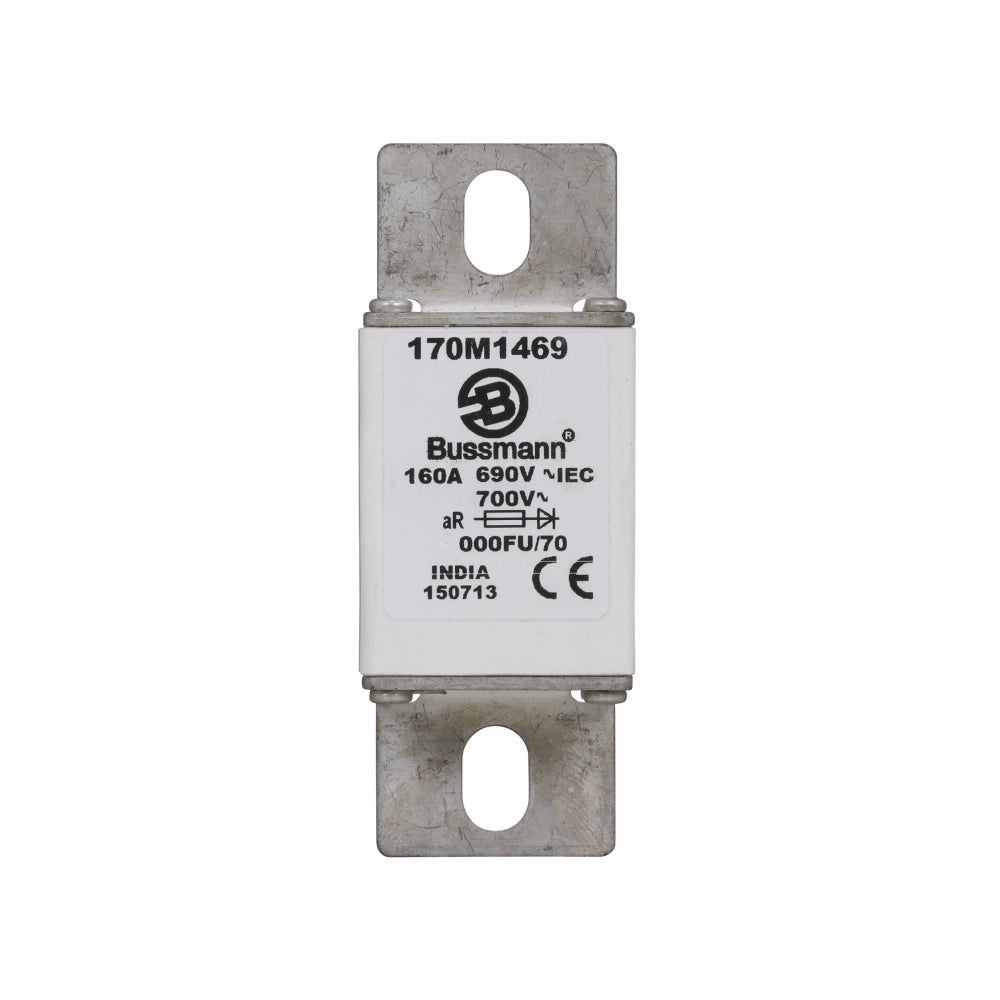

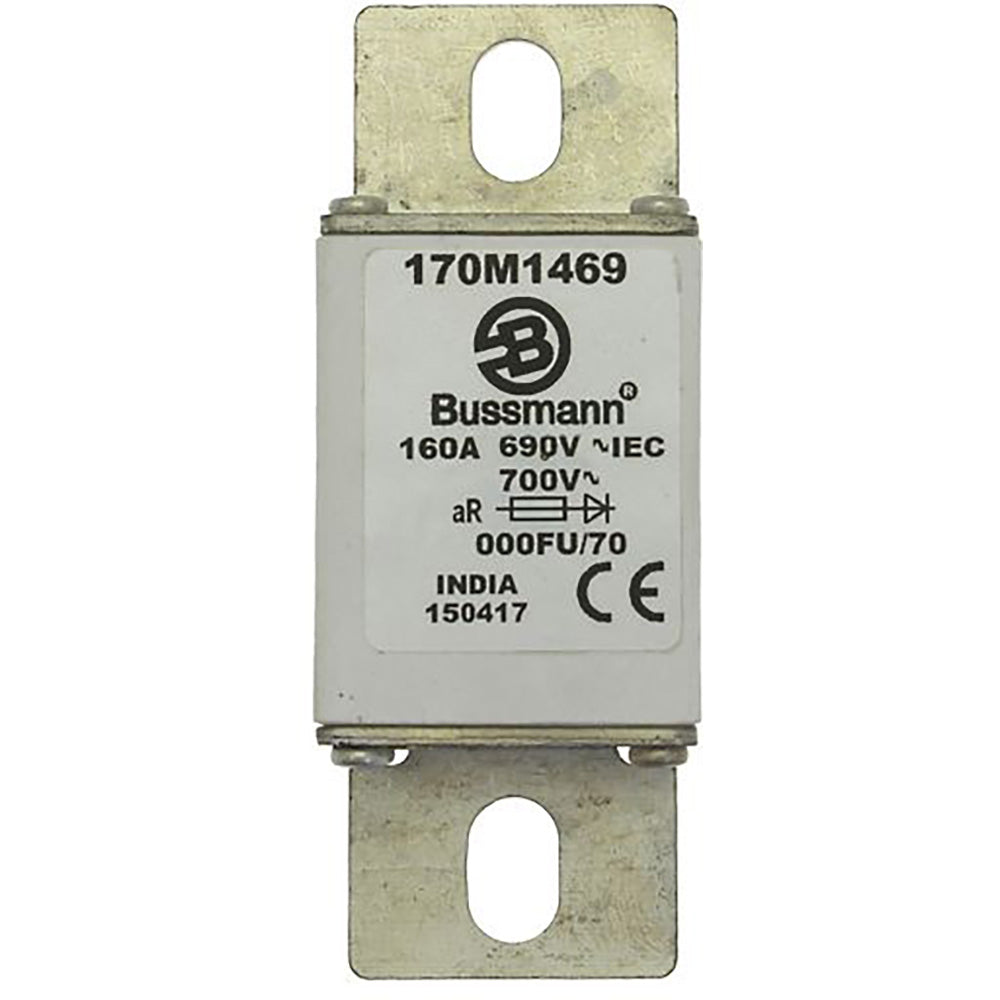

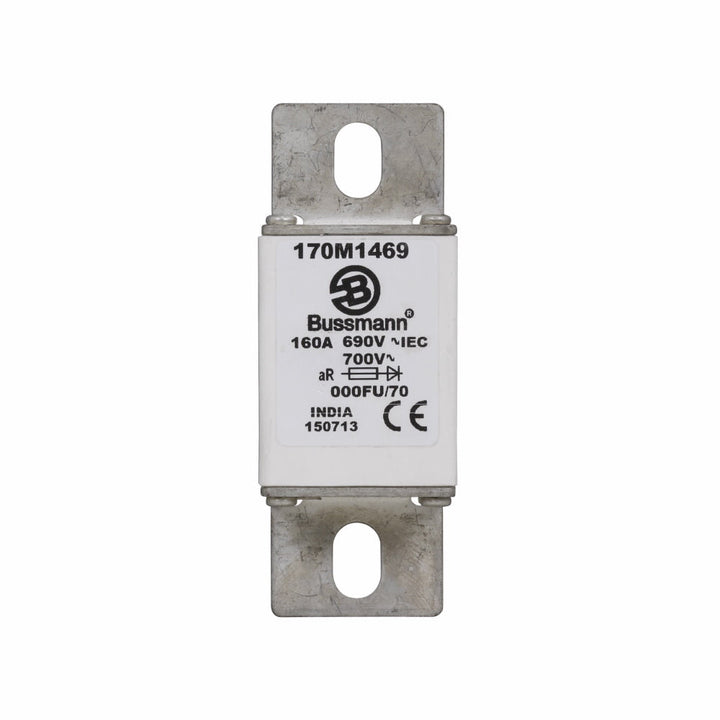

Bussmann 170M1469 - Low Voltage Fuse 160A (aR Class, 200kA AIC)

Bussmann 170M1469 is a low voltage fuse from the NH000 family designed to provide reliable overcurrent and short-circuit protection in demanding industrial power systems. It features a 160A current rating and a 690V voltage rating, engineered to safely interrupt high fault currents up to 200kA. The fuse is constructed with a stud mount connection for secure electrical integration and has a robust build with a weight of 10 lb. It complies with the aR (partial range) class rating, indicating its capability for backup protection of semiconductor devices. This fuse is typically applied in motor circuits, feeder protection, and industrial control panels where high breaking capacity is required.

Key Features & Specifications

• Type: Low Voltage Fuse, NH000 Family, 170M Type, aR Class (partial range)
• Voltage Rating: 690V
• Current Rating: 160A
• AIC Rating: 200kA @ 690V
• Connection: Stud Mount
• Class Rating: aR
• Weight: 10 lb

Product Identification

• UPC: 051712217002
• GTIN: 00051712217002
