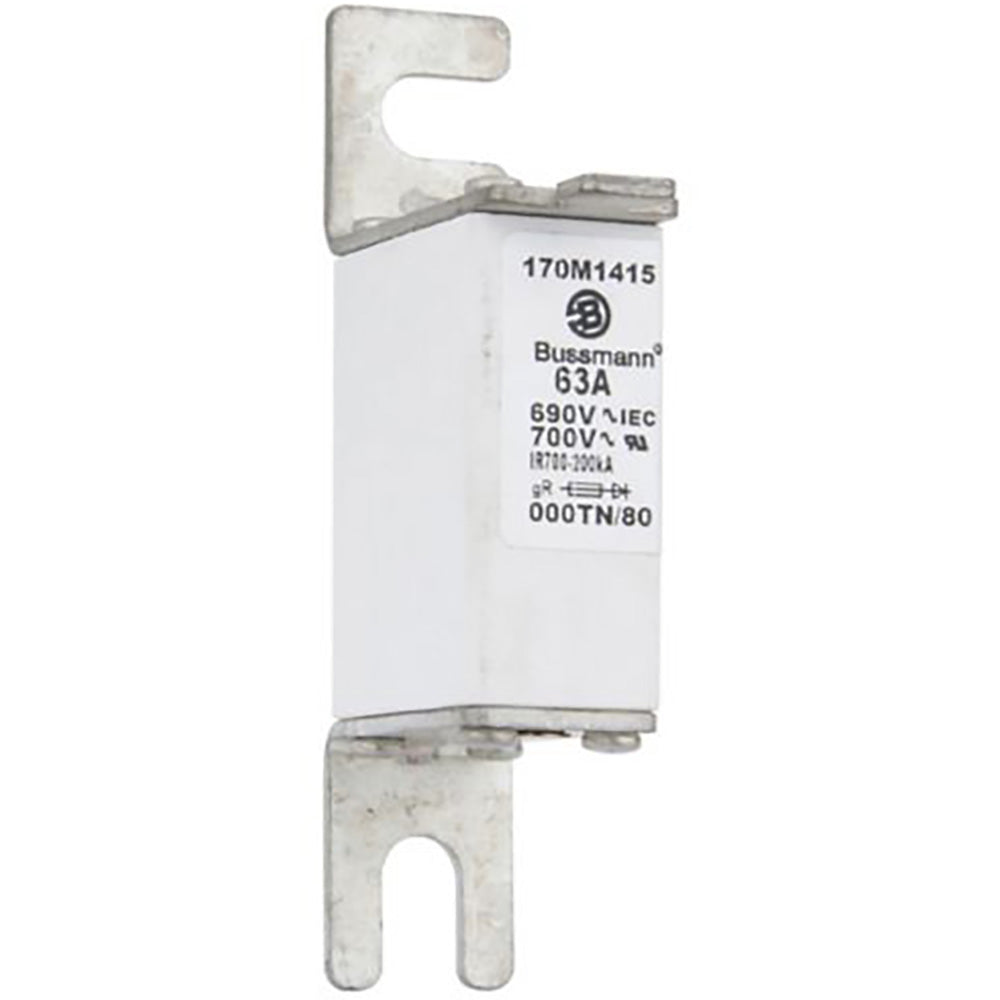

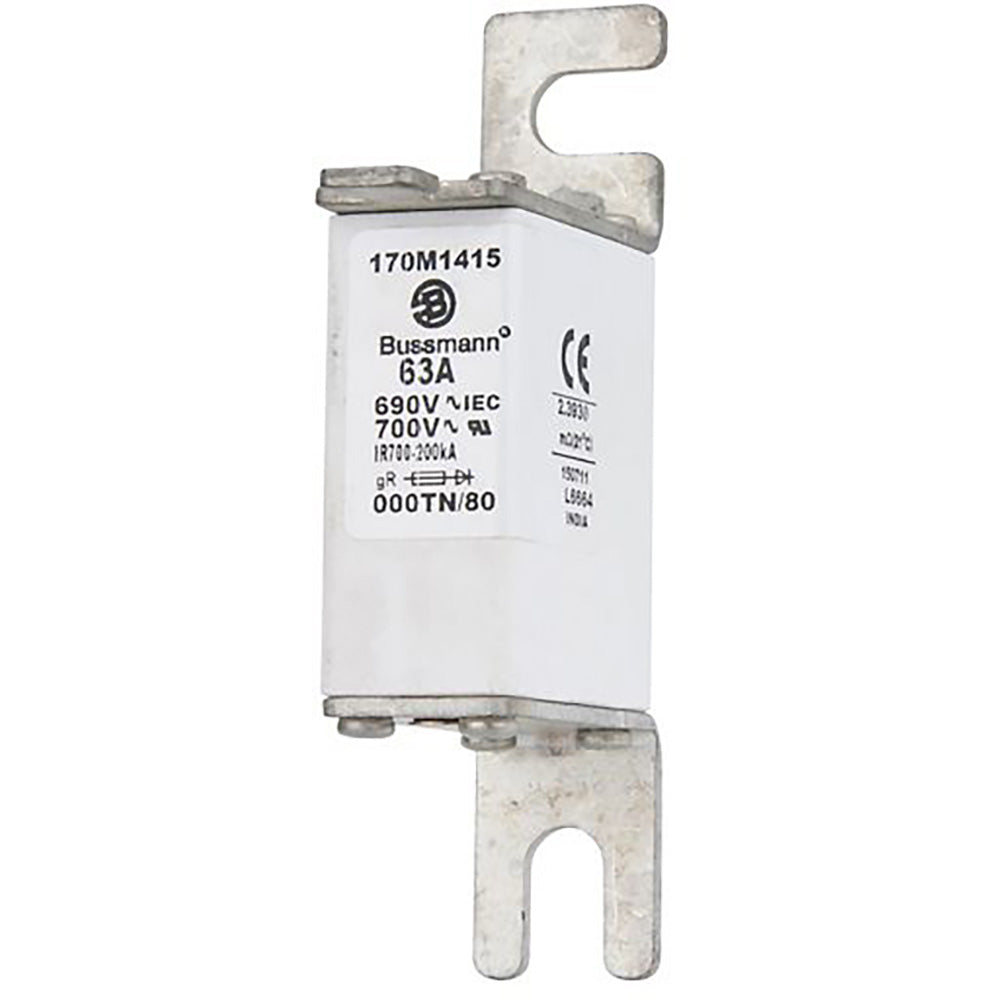

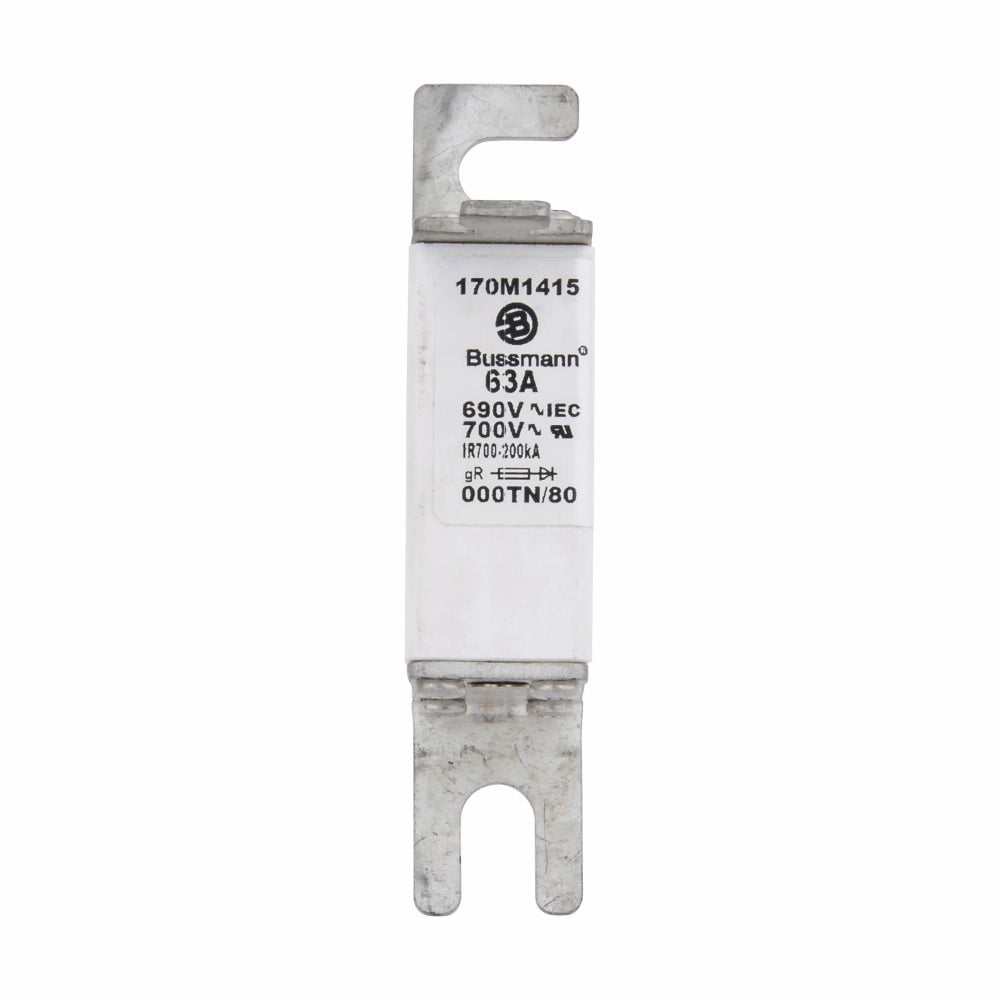

Bussmann 170M1415 - NH Fuse 63A 690V (200kA AIC)

Bussmann
Price
Save $-120.08
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 170M1415 is a low-voltage fuse designed for providing high-breaking-capacity protection in industrial power distribution systems. It features a 63A current rating and a 690V voltage rating, suitable for robust circuit protection. The fuse is constructed with an NH (knife-blade) style body measuring 100 mm x 53 mm x 21 mm and utilizes a stud mount connection for secure installation. It complies with aR class partial-range protection standards and offers an interrupting rating of 200kA at 690V AC. Typical applications include safeguarding motor circuits, transformers, and capacitor banks from short-circuit faults.

Key Features & Specifications
  • Type: NH (knife-blade) style, low-voltage fuse with aR partial-range protection
  • Voltage Rating: 690V AC
  • Current Rating: 63A
  • Dimensions: 100 mm (Length/Depth) x 53 mm (Height) x 21 mm (Width)
  • Weight: 0.31 lb
  • Standards: aR Class Rating
  • Applications: Protection for industrial motor circuits, transformers, and capacitor banks
  • Connection: Stud Mount
  • AIC Rating: 200kA @ 690V AC
  • Family: NH000


Product Identification
  • UPC: 051712216814
  • GTIN: 00051712216814
