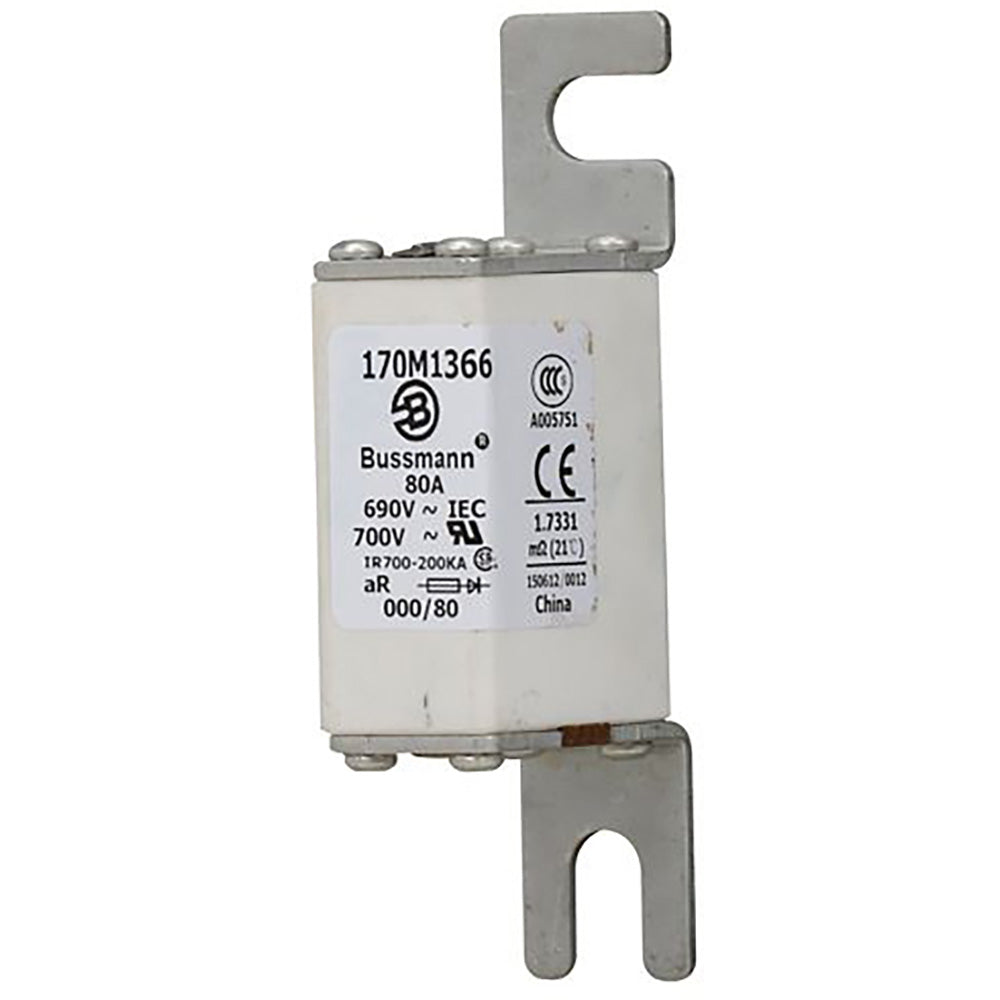

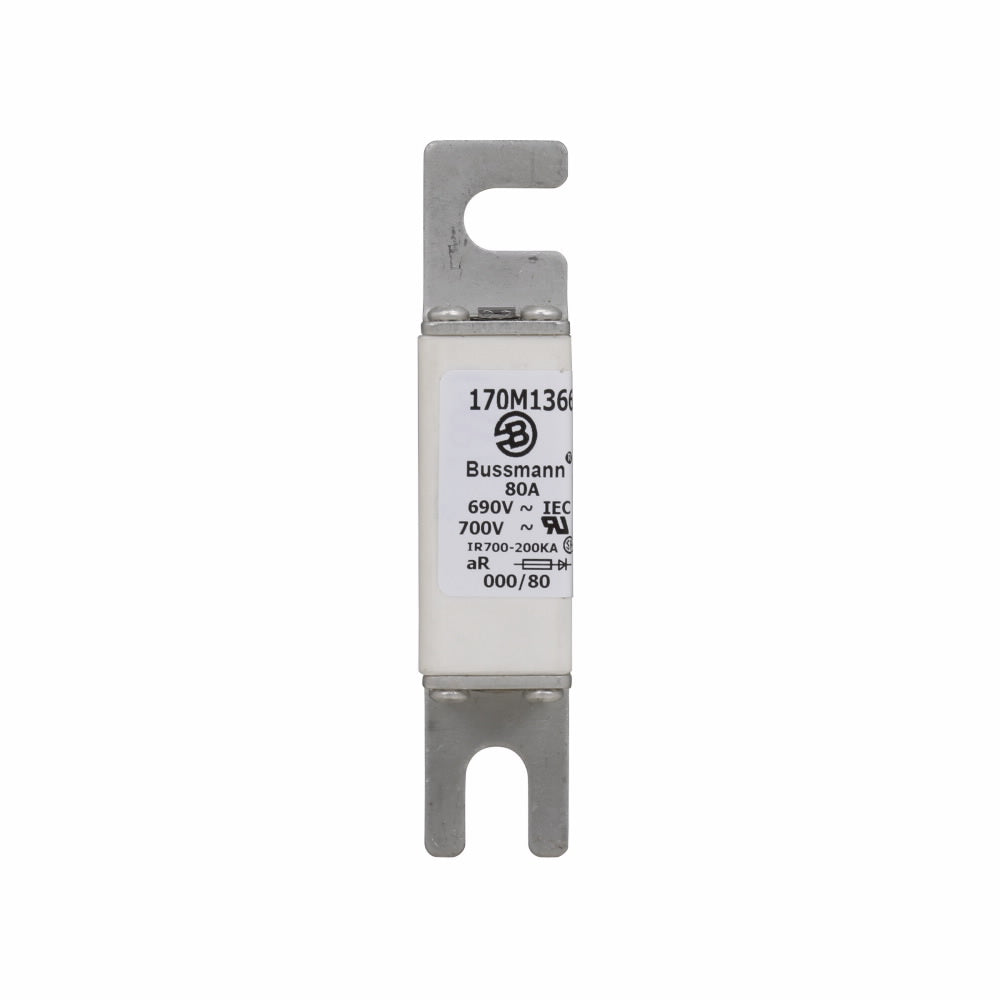

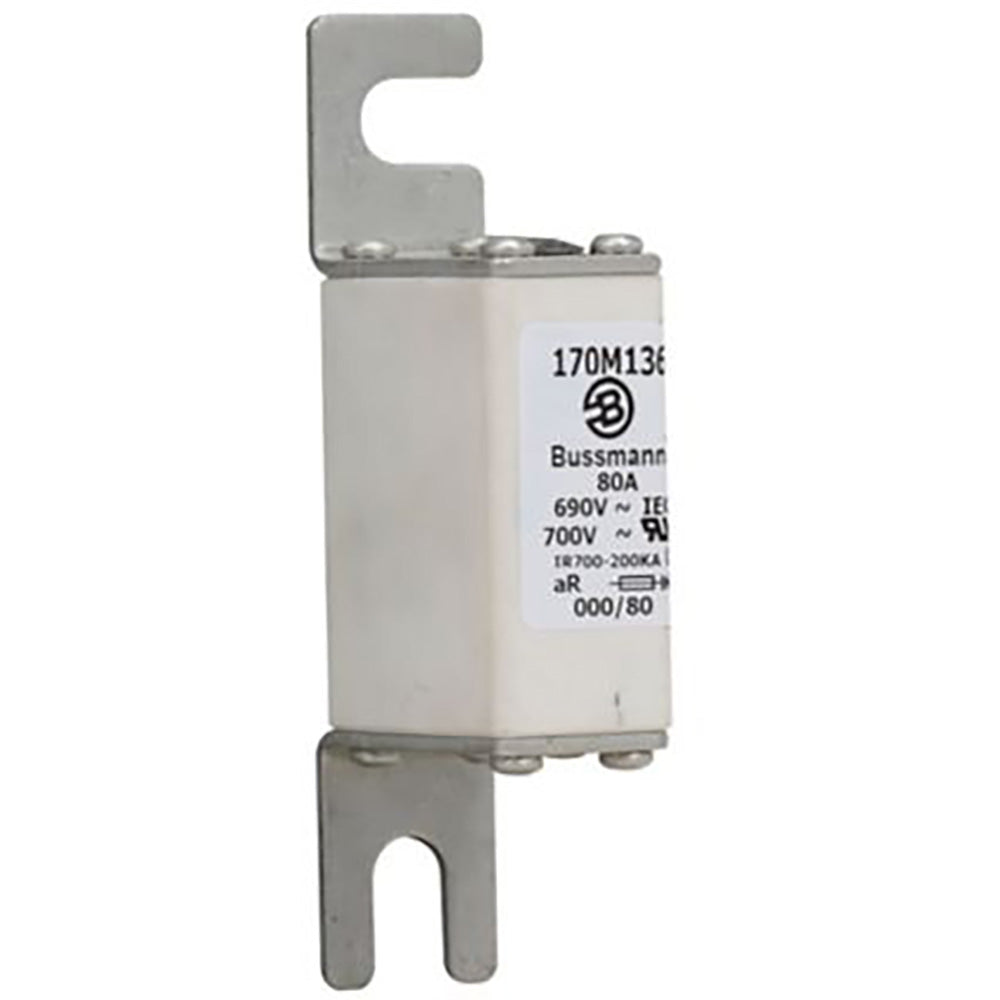

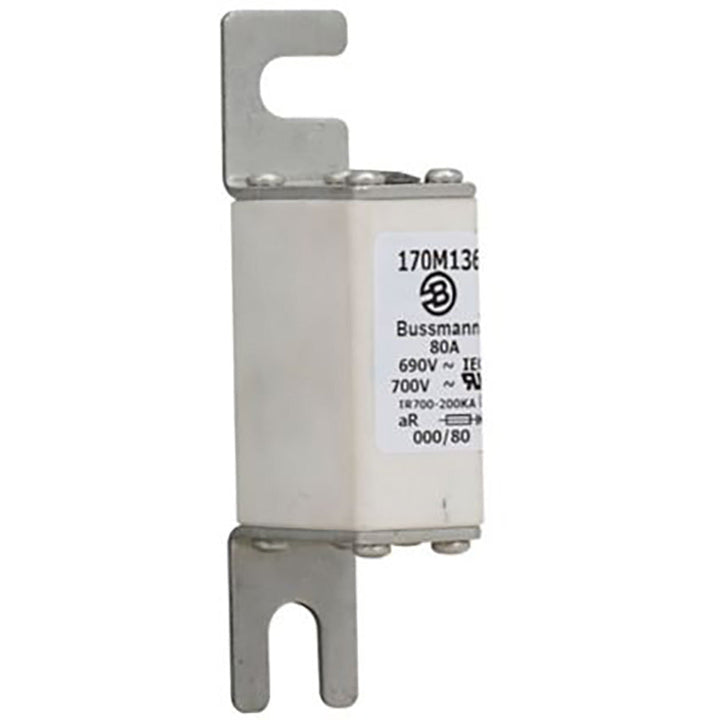

Bussmann 170M1366 - NH Fuse 80A (690V AC, 200kA AIC)

The Bussmann 170M1366 is an NH-type low-voltage fuse engineered to provide reliable protection against short-circuit currents in industrial electrical systems. It features a 690V AC voltage rating and an 80A current rating, ensuring robust performance in demanding applications. Constructed with European blade connections and weighing 10 lb, this fuse offers durable physical characteristics suitable for industrial environments. The component meets international standards with its aR class rating, indicating partial-range breaking capacity for motor circuit protection. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where high interrupting capacity is required.

Key Features & Specifications

• Type: NH (European DIN-style) fuse with partial-range breaking capacity
• Voltage Rating: 690V AC
• Current Rating: 80A
• Dimensions: Standard NH dimensions with European blade connection
• Standards: IEC 60269-1, IEC 60269-2-1
• Applications: Motor protection, industrial control panels, feeder circuits
• AIC rating: 200kA@690V
• Class Rating: aR (partial-range)
• Connection: European Blade
• Weight: 10 lb

Product Identification

• UPC: 051712216678
• GTIN: 00051712216678
