Bussmann 17.5TDMEJ40 - Medium Voltage Fuse 40A (17.5kV, 50kA AIC)

Bussmann
Price
Save $597.87
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

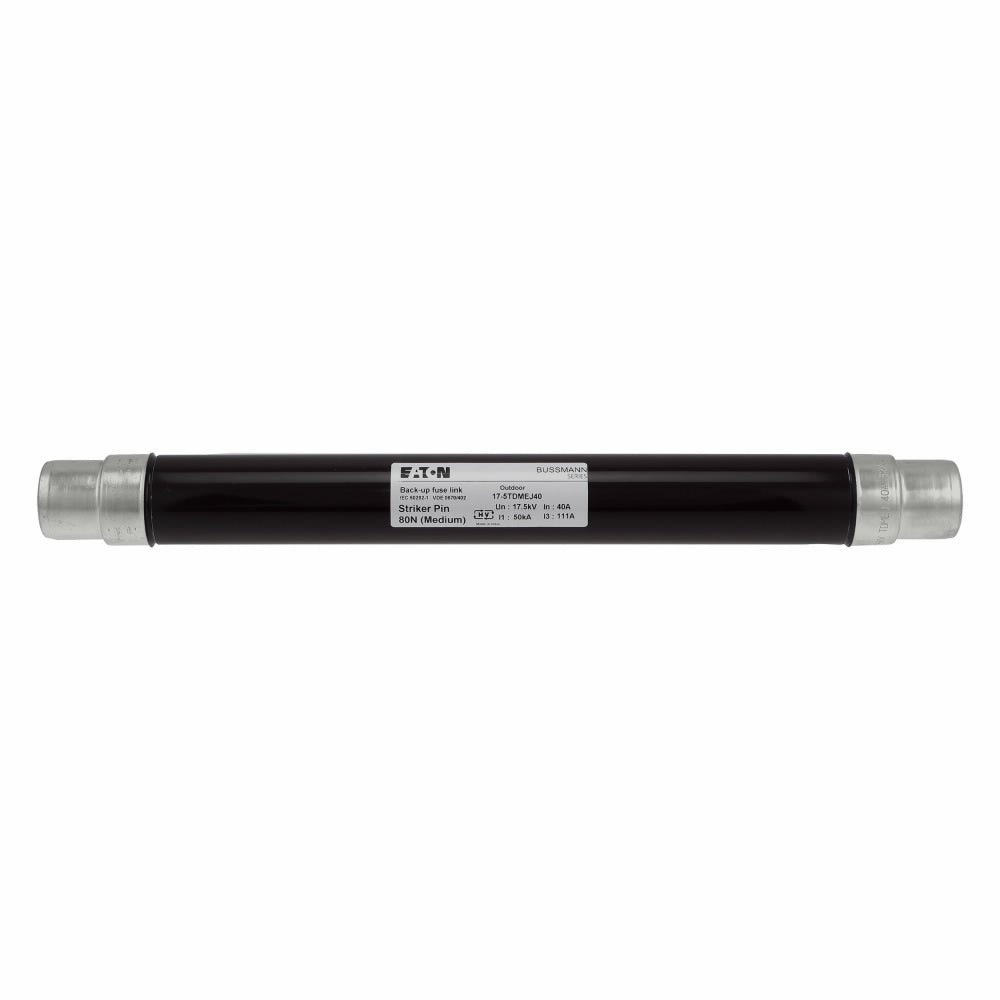

The Bussmann 17.5TDMEJ40 is a DIN-style medium-voltage current-limiting fuse designed to provide reliable overcurrent and short-circuit protection for industrial power distribution systems. It is rated for 17.5 kV AC systems with a 40A continuous current rating and an interrupting capacity of 50 kA at 17.5 kV. The fuse features a robust, single-barrel construction with Class R rejection characteristics, housed in a compact form factor measuring 442 mm in length, 54 mm in height, and 51 mm in width, with a weight of 5.75 lb. It is engineered to meet stringent industry standards for medium-voltage applications, making it suitable for protecting transformers, motors, and feeders in utility and heavy industrial environments.

Key Features & Specifications
  • Type: DIN-style, current-limiting, medium-voltage fuse with Class R rejection
  • Voltage Rating: 17500V AC
  • Current Rating: 40A
  • Dimensions: 442 mm x 54 mm x 51 mm (L x H x W)
  • Weight: 5.75 lb
  • Standards: Designed for industrial medium-voltage applications
  • Applications: Protection for transformers, motors, and feeders in utility and industrial power distribution
  • AIC rating: 50kA @ 17.5kV
  • Class Rating: R
  • Barrels: 1
  • Diameter: 2 in


Product Identification
  • UPC: 051712186230
  • GTIN: 00051712186230
