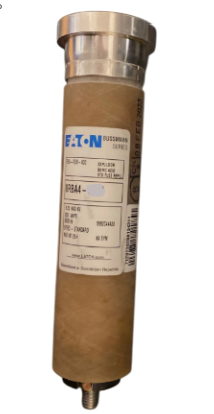

Eaton 15RBA4-65E - Medium Voltage Fuse 14.4kV/65A (29.4kA AIC Rating)

Eaton 15RBA4-65E is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. Rated for 14.4kV AC systems with a 65A current rating, this Class E fuse features a single-barrel construction with standard interrupting capacity of 29.4kA at rated voltage. The 8.88-inch long fuse meets IEEE Std. C37.41 standards for medium-voltage protection devices, constructed with durable materials for reliable operation in demanding environments. Typical applications include transformer protection, motor circuits, and feeder protection in utility and industrial power distribution systems.

Key Features & Specifications

• Type: RBA4 current-limiting medium-voltage fuse
• Voltage Rating: 14400V AC
• Current Rating: 65A
• Dimensions: 8.88 in length
• Weight: 2.04 lb
• Standards: IEEE Std. C37.41
• Applications: Transformer/motor protection, power distribution
• Class Rating: E
• Barrels: 1
• Velocity: Standard
• AIC rating: [email protected]
• Certification: IEEE Std. C37.41
• Section: Fuse Refills

Product Identification

• UPC: 786670232971
• GTIN: 00786670232971
