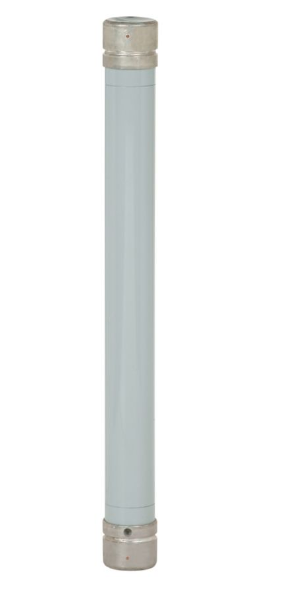

Eaton 15RBA4-25E - Medium Voltage Fuse 14.4kV/25A (29.4kA AIC Rating)

Eaton 15RBA4-25E is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. Rated for 14.4kV with a 25A current capacity, this Class E fuse features a single-barrel construction with standard interrupting capacity of 29.4kA at rated voltage. Its robust design complies with IEEE Std. C37.41 for medium-voltage applications, making it suitable for transformer protection, capacitor banks, and feeder circuits in utility and industrial power distribution systems.

Key Features & Specifications

• Type: RBA4 current-limiting fuse with silver-sand construction
• Voltage Rating: 14,400V AC
• Current Rating: 25A
• Dimensions: Standard RBA series barrel configuration
• Standards: IEEE Std. C37.41 compliant
• Applications: Transformer protection, capacitor banks, feeder circuits
• Class Rating: E
• Barrels: 1
• AIC rating: [email protected]
• Certification: IEEE Std. C37.41
• Weight: 2 lb

Product Identification

• UPC: 78667023272
• GTIN: 00786670232728
