Eaton Bussmann 15HLE-125E-D - Medium Voltage Fuse 125A (65kA AIC)
15HLE-125E-D Bussmann HLE Medium Voltage Fuse 15000V 125A Fuse - Essential Electric Supply
Eaton Bussmann 15HLE-125E-D - Medium Voltage Fuse 125A (65kA AIC)
15HLE-125E-D Bussmann HLE Medium Voltage Fuse 15000V 125A Fuse - Essential Electric Supply

Eaton Bussmann 15HLE-125E-D - Medium Voltage Fuse 125A (65kA AIC)

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

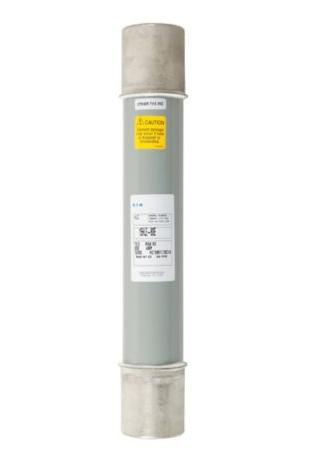

Eaton Bussmann 15HLE-125E-D is a medium voltage current-limiting fuse designed for high-interrupting capacity protection in industrial power distribution systems. It features a 15 kV voltage rating and a 125 ampere current rating, providing reliable overcurrent and short-circuit protection. The fuse is constructed with a single-barrel, ferrule-connection design, measuring 18.9 inches in length with a 3-inch diameter, and is built to withstand high fault currents. It complies with industry standards for Class E fuses and is typically applied in motor control centers, transformers, and feeder circuits requiring a 65 kA interrupting rating at 15 kV.

Key Features & Specifications
  • Type: HLE series, medium voltage, current-limiting fuse with ferrule connection
  • Voltage Rating: 15000 V AC
  • Current Rating: 125 A
  • Dimensions: 18.9 in L x 3 in H x 3 in W
  • Standards: Class E rating
  • Applications: Industrial power distribution, motor protection, transformer protection
  • AIC rating: 65 kA at 15 kV
  • Connection: Ferrule
  • Barrels: 1
  • Diameter: 3 in
  • Class Rating: E
  • Weight: 0.001 lb


Product Identification
  • UPC: 05171275065
  • GTIN: 00051712750653
