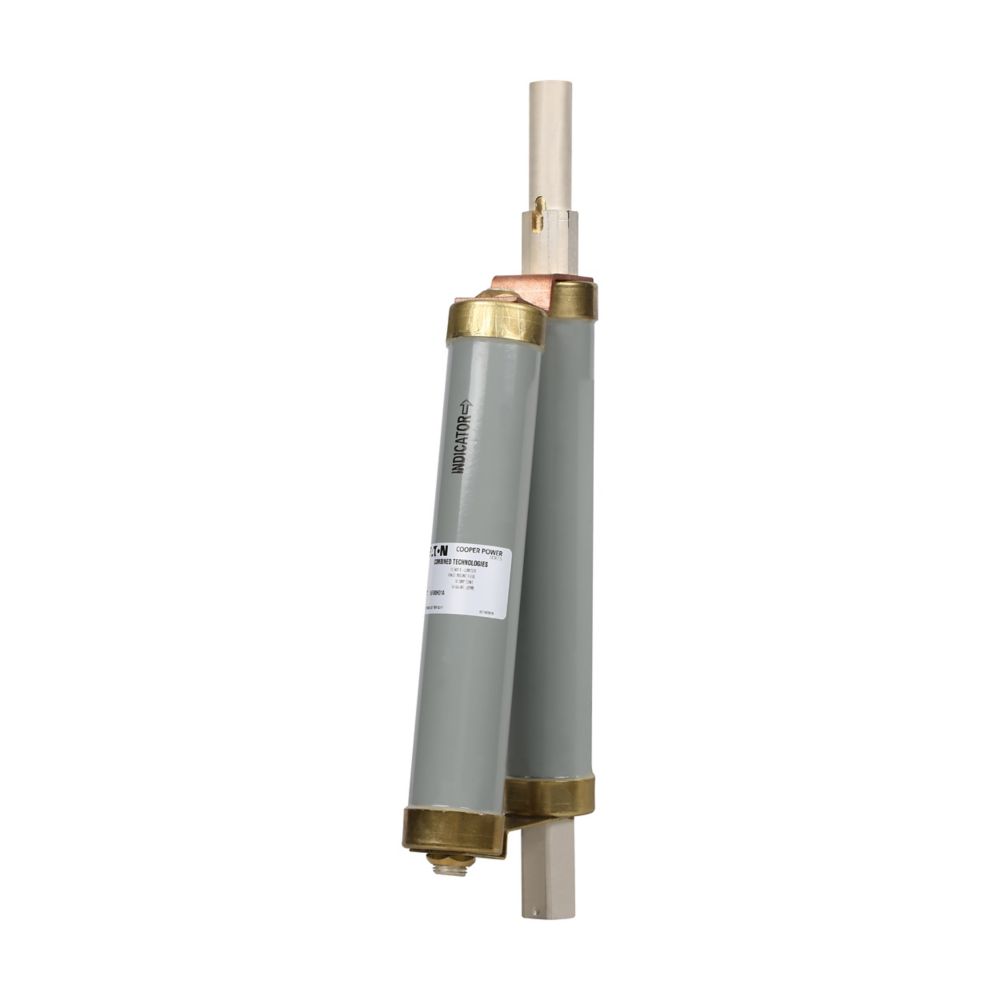

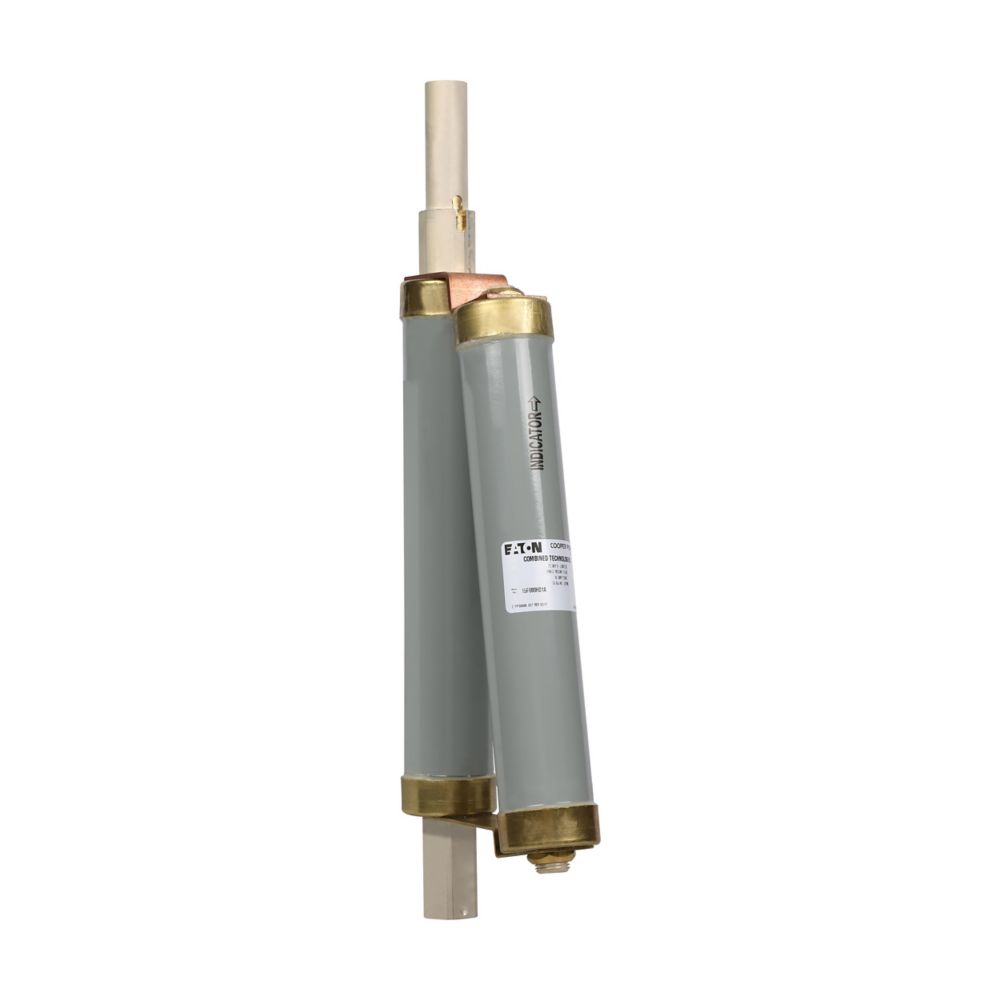

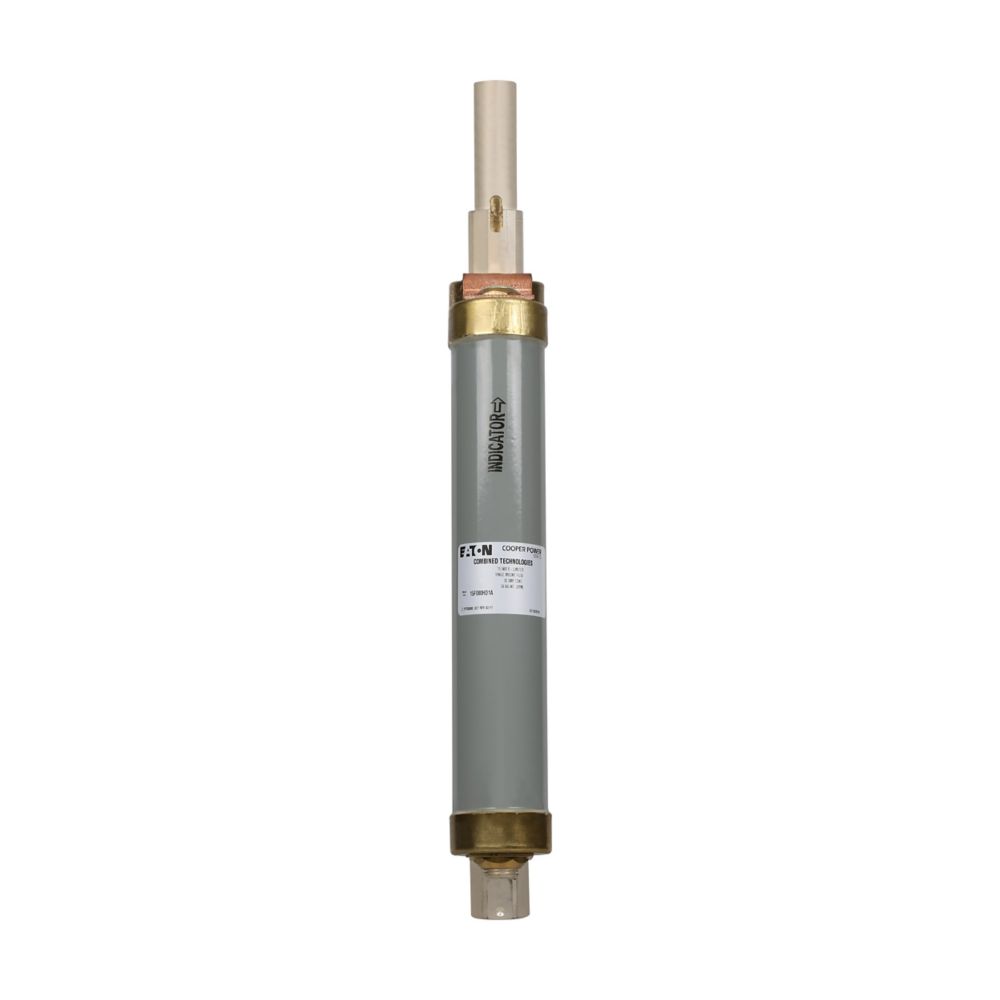

Eaton 15F100HD1A - Medium Voltage Fuse 15.5kV/100A (Single-Barrel Current-Limiting Design)

Eaton 15F100HD1A is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 100A current rating, with a robust single-barrel construction using special connection terminals for secure installation. The fuse meets industry standards for medium-voltage applications with its 2-inch diameter cylindrical design and 9 lb weight, engineered for reliable operation in demanding environments. Typical applications include transformer protection, motor starter circuits, and switchgear protection in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with single-barrel construction
• Voltage Rating: 15,500V AC
• Current Rating: 100A
• Dimensions: 2" diameter cylindrical design
• Weight: 9 lb
• Connection: Special terminal configuration
• Standards: Meets industrial medium-voltage protection requirements
• Applications: Transformer protection, motor starters, switchgear
