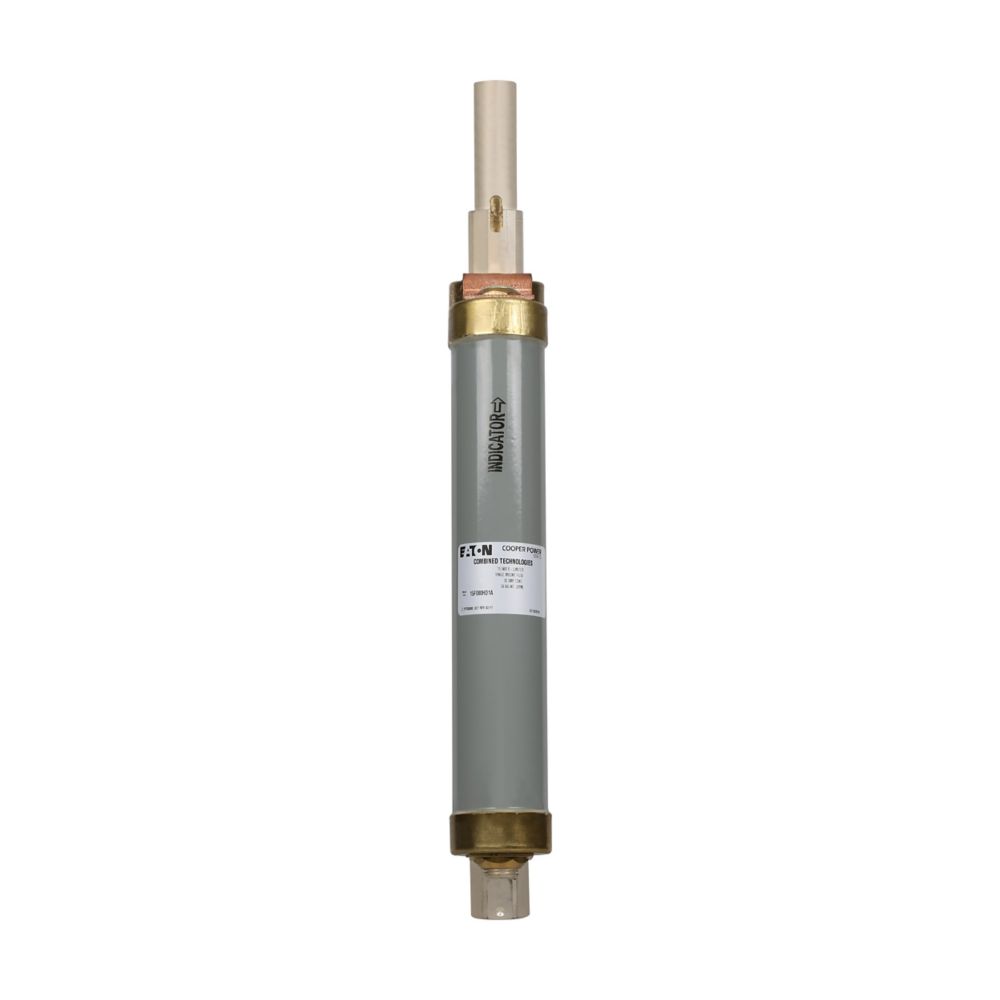

Eaton 15F080VHA2A - Medium Voltage Fuse 15.5kV/80A (Single-Barrel Current-Limiting Design)

Eaton 15F080VHA2A is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 80A current capacity, housed in a robust single-barrel construction with a 3-inch diameter for reliable arc interruption. The fuse utilizes a special connection design and weighs 9 lb, meeting stringent industry standards for medium-voltage applications. Its current-limiting technology provides effective short-circuit protection for transformers, capacitors, and feeder circuits in utility and industrial power distribution networks.

Key Features & Specifications

• Type: Medium-voltage current-limiting fuse with single-barrel design
• Voltage Rating: 15500V AC
• Current Rating: 80A
• Dimensions: 3-inch diameter
• Weight: 9 lb
• Connection: Special termination
• Barrels: 1
• Applications: Transformer protection, capacitor banks, feeder circuits
• Standards: Meets industry requirements for medium-voltage protection
