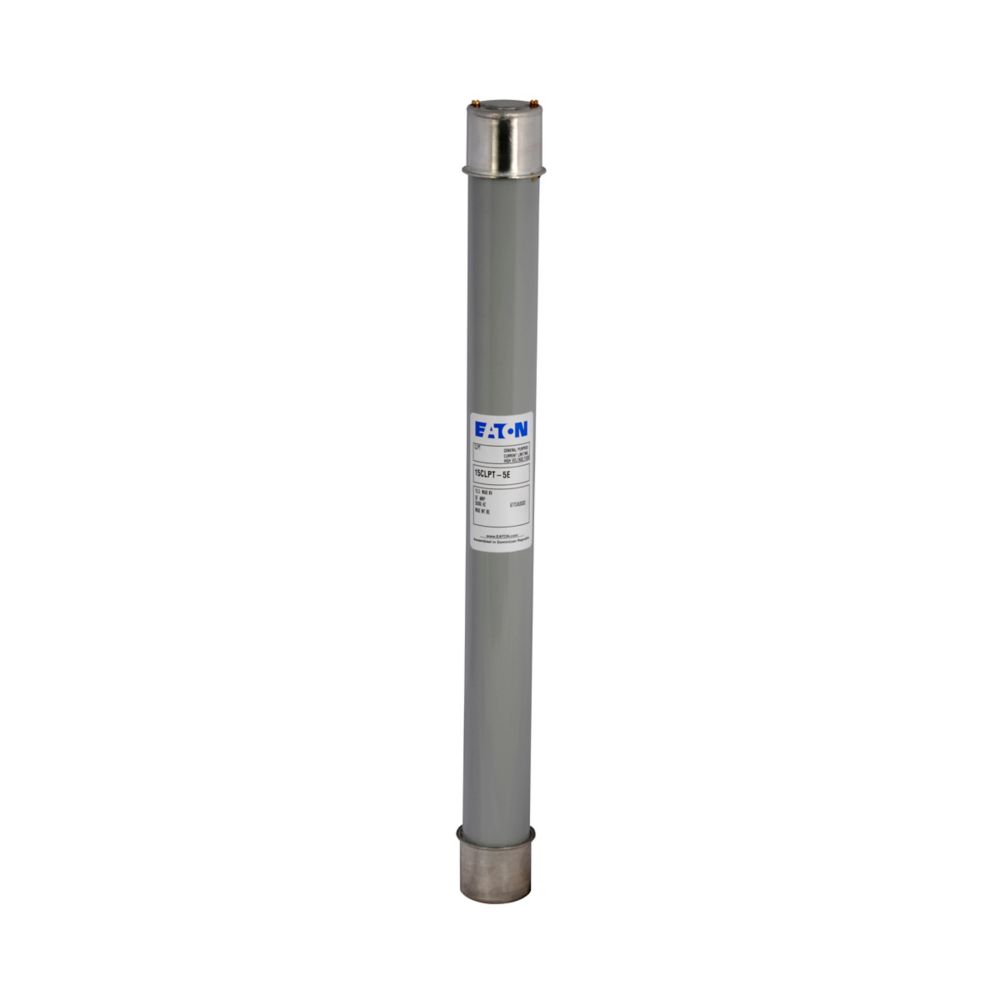

Eaton 15CLPT-.5E - Medium Voltage Fuse 15.5kV/0.5A (80kA AIC @15.5kV)

Eaton 15CLPT-.5E is a medium-voltage current-limiting power fuse designed for high-voltage circuit protection in industrial applications. It features a 15.5kV voltage rating and 0.5A current rating with an 80kA interrupting capacity at 15.5kV for reliable fault protection. The fuse has a compact 1.6-inch diameter barrel construction with 11.5-inch clip centers and meets Class E rating standards for medium-voltage systems. It complies with industry requirements for high-voltage protection in demanding environments. Typical applications include transformer protection, motor circuits, and feeder protection in industrial power distribution systems.

Key Features & Specifications

• Type: CLPT current-limiting power fuse
• Voltage Rating: 15,500V AC
• Current Rating: 0.5A
• Dimensions: 1.6" diameter
• Standards: Class E rated
• Applications: Industrial power distribution, transformer protection
• AIC rating: [email protected]
• Barrels: 1
• Clip Center: 11.5"
• Weight: 2 lb

Product Identification

• GTIN: 00786670215073
