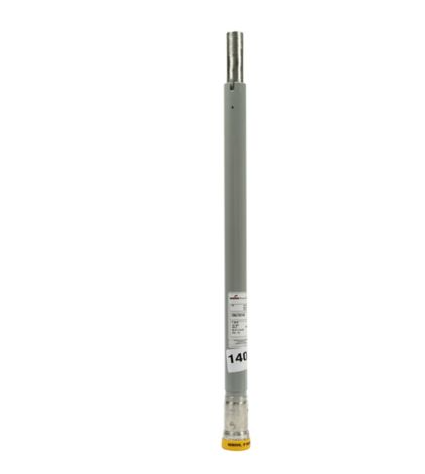

Eaton 15CLPT-1.5E - Medium Voltage Fuse 15.5kV/1.5A (80kA AIC)

Eaton 15CLPT-1.5E is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 1.5A current rating with an 80kA interrupting capacity at 15.5kV, housed in a durable single-barrel construction with 1.6" diameter and Class E rating. The fuse meets industry standards for medium-voltage applications with 11.5" clip center spacing and 2.2 lb weight, suitable for transformer protection, motor circuits, and feeder protection in utility and industrial environments.

Key Features & Specifications

• Type: CLPT current-limiting fuse, single-barrel design
• Voltage Rating: 15,500V AC
• Current Rating: 1.5A
• Dimensions: 1.6" diameter, 11.5" clip center
• Standards: Class E rated
• Applications: Transformer protection, industrial motor circuits
• AIC rating: [email protected]
• Weight: 2.2 lb
• Barrels: 1

Product Identification

• UPC: 78667021536
• GTIN: 00786670215363
