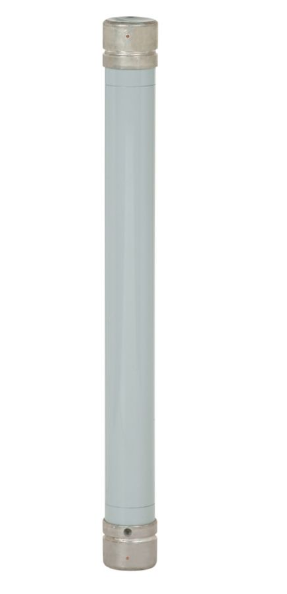

Eaton 15CLE3-150E - Medium Voltage Current-Limiting Fuse 150A (50kA AIC @ 15.5kV)
Eaton 15CLE3-150E - Medium Voltage Current-Limiting Fuse 150A (50kA AIC @ 15.5kV)

Eaton 15CLE3-150E - Medium Voltage Current-Limiting Fuse 150A (50kA AIC @ 15.5kV)

Eaton
Price
Save $5,546.43
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 15CLE3-150E is a medium voltage current-limiting fuse designed for high-capacity circuit protection in industrial power systems. It features a 15.5kV voltage rating and a 150A current rating to handle substantial electrical loads. The fuse is constructed with a robust three-barrel design, measures 3 inches in diameter with a 20-inch clip center, and has a weight of 25 lb for durable installation. This Class E fuse complies with industry standards for medium voltage applications and offers an interrupting rating of 50kA at 15.5kV for reliable fault protection. It is typically employed in switchgear, motor control centers, and transformer protection circuits where high interrupting capacity is required.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, Class E, 3-Barrel Design
  • Voltage Rating: 15500V AC
  • Current Rating: 150A
  • Dimensions: 3" Diameter, 20" Clip Center
  • Standards: Industry Standard for Medium Voltage Protection
  • Applications: Industrial Switchgear, Motor Control Centers, Transformer Protection
  • AIC rating: [email protected]
  • Class Rating: E
  • Barrels: 3
  • Weight: 25 lb
