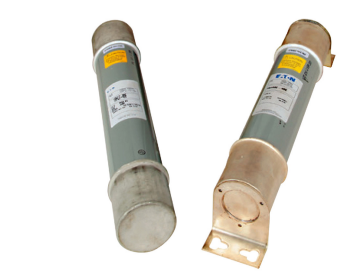

Eaton 15CLE1-40E - Medium Voltage Fuse 15.5kV/40A (63kA AIC Rating)

Eaton 15CLE1-40E is a medium-voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 40A current rating, with a ferrule connection and single-barrel construction for reliable performance. The fuse has a 3-inch diameter, Class E rating, and weighs 12 lb, built to withstand 63kA interrupting capacity at 15.5kV. Compliant with industry standards for medium-voltage protection, it is commonly used in transformer protection, motor circuits, and feeder applications requiring robust short-circuit protection.

Key Features & Specifications

• Type: CLE-1 current-limiting fuse with silver-sand construction
• Voltage Rating: 15,500V AC
• Current Rating: 40A
• Dimensions: 3" diameter, 21" clip center spacing
• Standards: ANSI/IEEE C37.40-41, UL 248-12
• Applications: Transformer protection, motor circuits, feeder protection
• AIC rating: 63kA at 15.5kV
• Connection: Ferrule
• Barrels: 1
• Class Rating: E
• Weight: 12 lb
