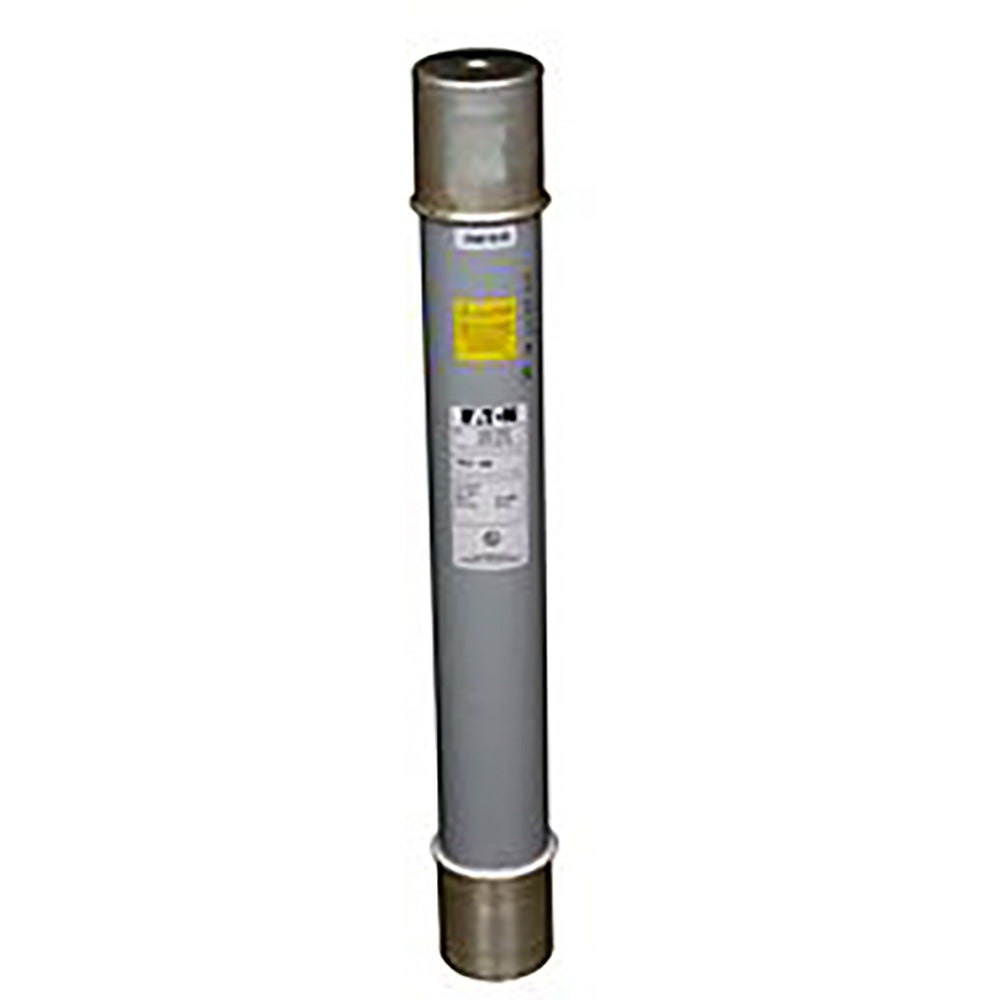

Eaton 15CLE-40E - Medium Voltage Fuse 40A 15.5kV (63kA AIC)

Eaton
Price
Save $-889.80
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 15CLE-40E is a medium voltage current-limiting fuse designed for overcurrent protection in high-voltage electrical distribution systems. It features a 40A current rating and a 15.5kV voltage rating for robust circuit protection. The fuse is constructed with a single-barrel ferrule connection, measures 23.9 inches in length with a 3-inch diameter, and weighs 13 lb. It complies with the IEEE Std. C37.41 standard and is rated for an interrupting capacity of 63kA at 15.5kV. Typical applications include protecting transformers, capacitors, and feeders in utility and industrial power networks.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, Class E, single-barrel ferrule connection
  • Voltage Rating: 15500V
  • Current Rating: 40A
  • Dimensions: 23.9 in (Length) x 3 in (Height) x 3 in (Width)
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, capacitors, and feeders in utility/industrial systems
  • AIC rating: 63kA @ 15.5kV
  • Connection: Ferrule
  • Barrels: 1
  • Diameter: 3 in
  • Class Rating: E
  • Clip Center: 21 in
  • Weight: 13 lb


Product Identification
  • UPC: 782116200474
  • GTIN: 00782116200474
