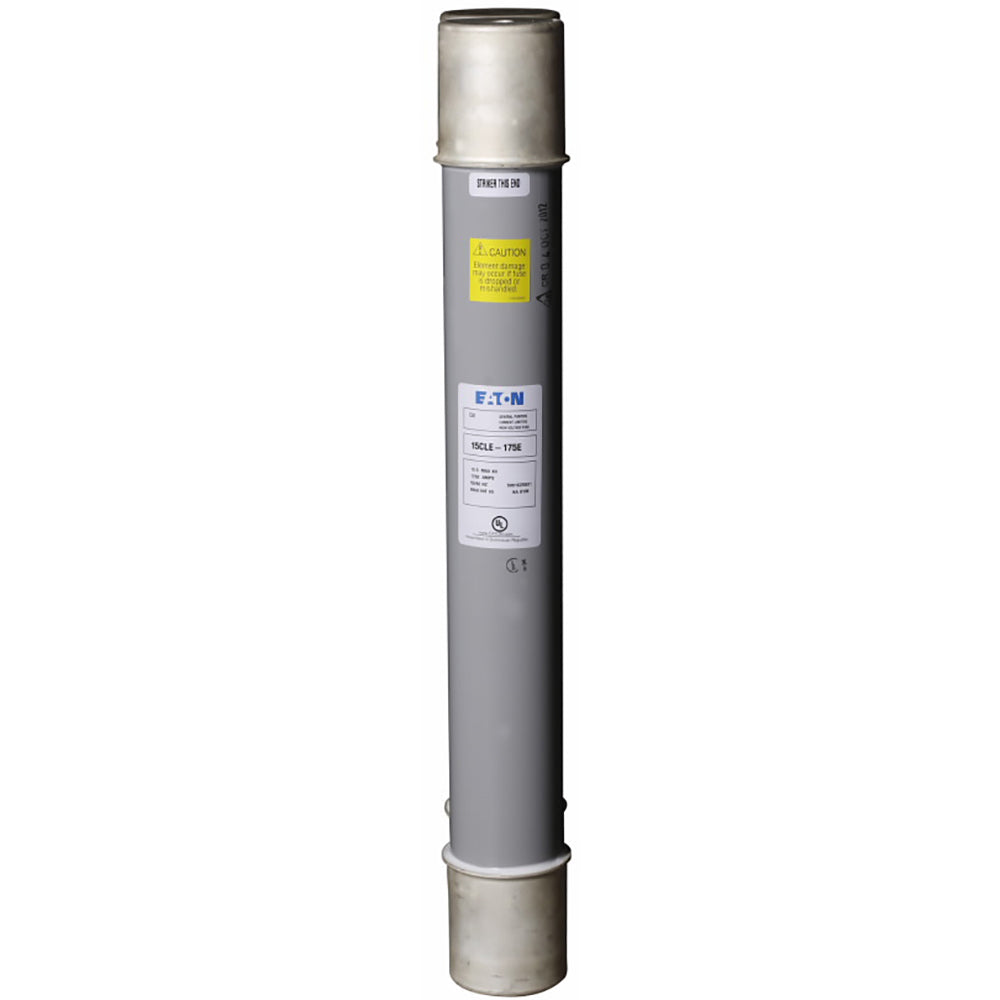

Eaton 15CLE-200E - Medium Voltage Fuse 200A 15.5kV

Eaton
Price
Save $1,599.48
/
Title
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Eaton 15CLE-200E is a medium voltage current-limiting fuse designed for high-interrupting capacity protection in industrial power distribution systems. It features a 200A current rating and a 15.5kV voltage rating, engineered to safely interrupt fault currents up to 63kA. The fuse is constructed with a two-barrel ferrule connection design, measures 23.9 inches in length with a 3-inch diameter, and weighs 26 lb, built for robust performance. It complies with the IEEE Std. C37.41 standard and is typically applied in transformer protection, feeder circuits, and motor starters within medium voltage switchgear and control equipment.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, 2-Barrel Ferrule Connection
  • Voltage Rating: 15500V
  • Current Rating: 200A
  • Dimensions: 23.9 in (Length) x 6.3 in (Height) x 3 in (Width)
  • Standards: IEEE Std. C37.41
  • Applications: Transformer Protection, Feeder Circuits, Motor Starters
  • Class Rating: E
  • AIC rating: [email protected]
  • Clip Center: 20 in
  • Diameter: 3 in
  • Weight: 26 lb
  • Connection: Ferrule
  • Barrels: 2


Product Identification
  • UPC: 786670001843
  • GTIN: 00786670001843
