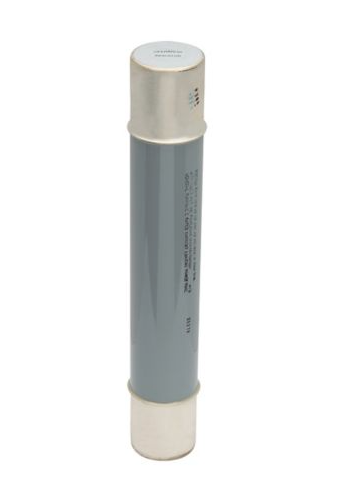

Bussmann 15CLE-150E-D - Medium Voltage Current-Limiting Fuse 150A (15.5kV, 63kA AIC)

Bussmann 15CLE-150E-D is a medium voltage current-limiting fuse designed for overcurrent protection in high-power electrical systems. It features a 150A current rating and a 15.5kV voltage rating, providing reliable circuit interruption. The fuse is constructed with a dual-barrel ferrule connection design, measures 3 inches in diameter with a 20-inch clip center spacing, and weighs 30 lb for robust industrial use. It complies with Class E standards and offers an impressive 63kA interrupting capacity at 15.5kV for maximum safety. This fuse is typically applied in industrial power distribution, motor protection, and transformer circuits where high-voltage protection is critical.

Key Features & Specifications

• Type: Medium Voltage Current-Limiting Fuse, dual-barrel construction with ferrule connection
• Voltage Rating: 15,500V AC
• Current Rating: 150A
• Dimensions: 3" diameter, 20" clip center spacing
• Standards: Class E rated
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: 63kA at 15.5kV
• Connection: Ferrule
• Barrels: 2
• Weight: 30 lb
• Class Rating: E
• Family: CLE

Product Identification

• UPC: 051712750691
• GTIN: 00051712750691
