Bussmann 15CLE-100E - Medium Voltage Fuse 100A 15.5kV

Bussmann
Price
Save $-146.31
/
Title
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

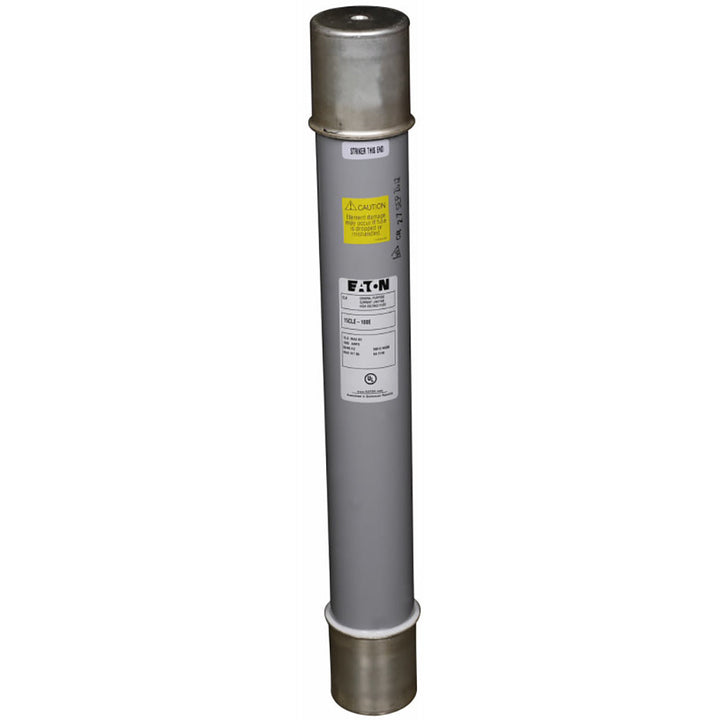

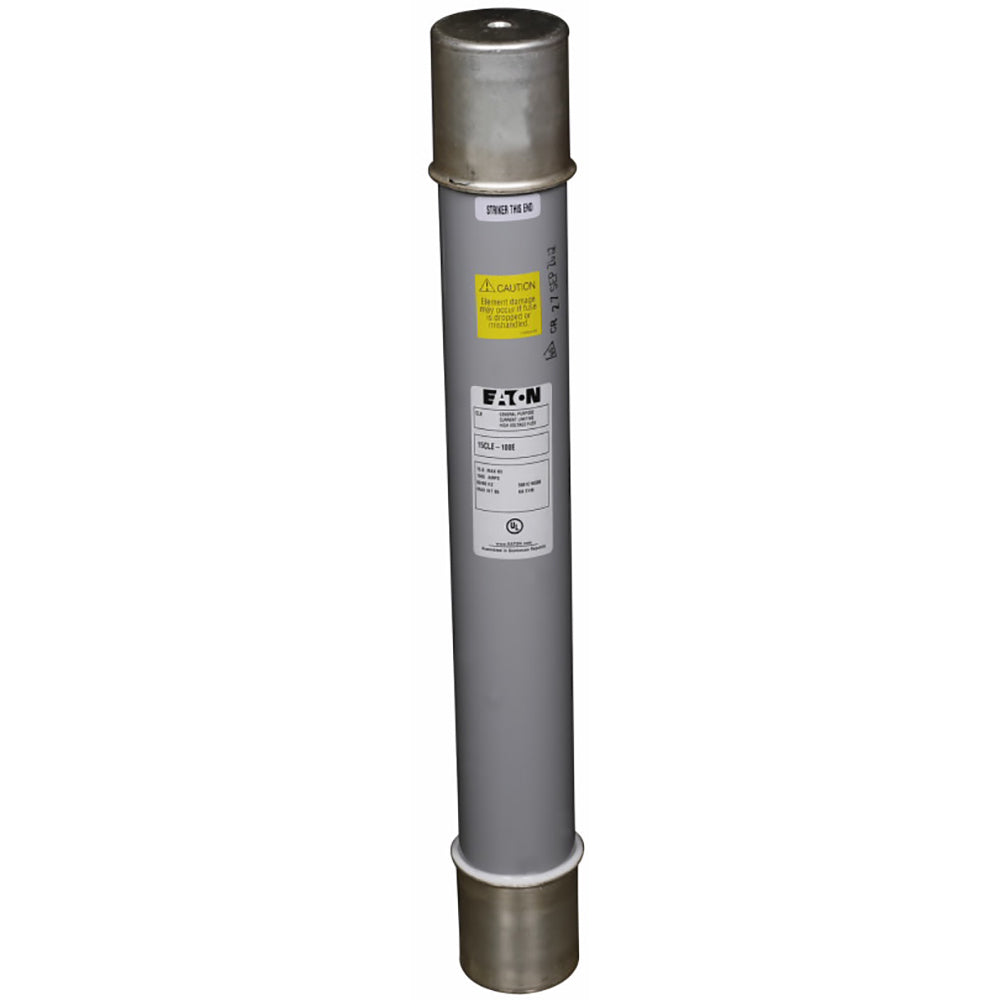

Bussmann 15CLE-100E is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems up to 15.5kV. It features a 100A current rating and a high 63kA interrupting capacity at its rated voltage, housed within a robust single-barrel ferrule connection design measuring 23.9 inches in length with a 3-inch diameter. This fuse is engineered and tested to comply with the IEEE Std. C37.41 standard, ensuring reliable performance for applications such as transformer protection, feeder circuits, and motor starters in utility and industrial settings.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, CLE Family, Single Barrel, Ferrule Connection
  • Voltage Rating: 15500V AC
  • Current Rating: 100A
  • Dimensions: 23.9 in (Length) x 3 in (Diameter)
  • Weight: 14 lb
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Transformer, feeder, and motor circuit protection in industrial power systems
  • Class Rating: E
  • AIC rating: 63kA @ 15.5kV
  • Clip Center: 21 in
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 051712526265
  • GTIN: 00786670001737
