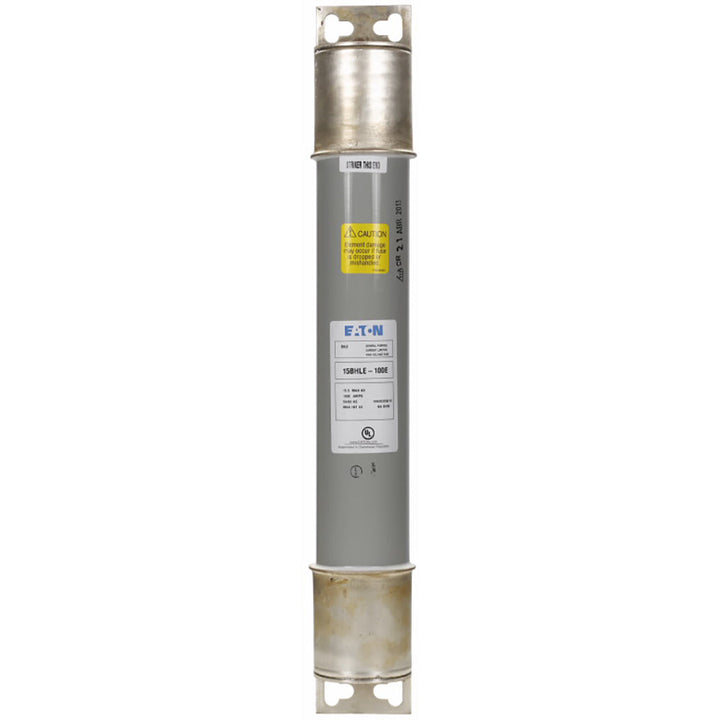

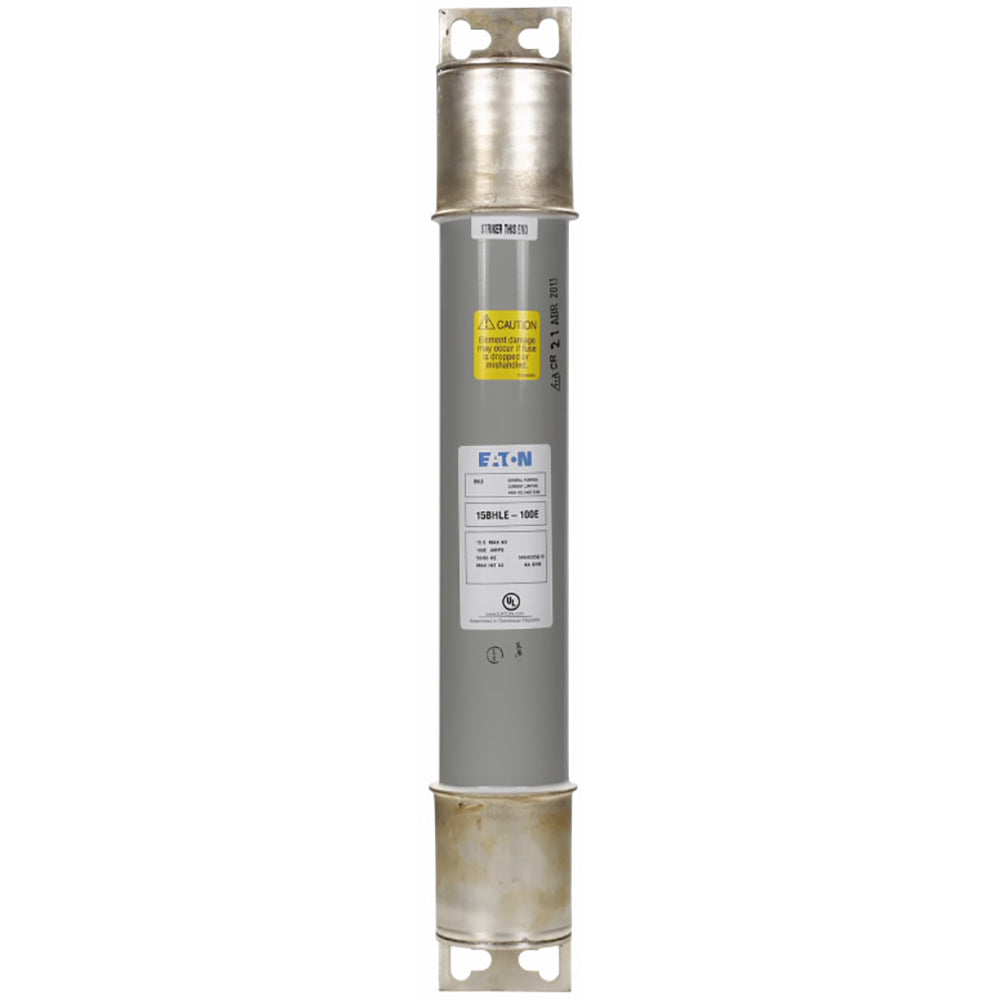

Eaton 15BHLE-50E - Medium Voltage Fuse 50A 15.5kV

Eaton
Price
Save $1,821.58
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 15BHLE-50E is a medium voltage current-limiting power fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 50A current rating and a 15.5kV voltage rating, with a high interrupting capacity of 63kA to safely clear fault currents. The fuse is constructed as a single-barrel, bolt-on unit with a 2-inch diameter and a 15-inch clip center spacing, housed within a robust assembly measuring 22.25" x 3.6" x 3" (LxHxW) and weighing 10 lb. It is engineered and tested to comply with the IEEE Std. C37.41 standard, ensuring reliable performance in demanding medium-voltage applications such as switchgear, motor starters, and capacitor banks.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Power Fuse, Single Barrel, Bolt-On Connection
  • Voltage Rating: 15500V AC
  • Current Rating: 50A
  • Dimensions: 22.25 in (Length) x 3.6 in (Height) x 3 in (Width)
  • Standards: IEEE Std. C37.41
  • Applications: Transformer, Motor, and Feeder Protection in Industrial Power Systems
  • AIC rating: 63kA @ 15.5kV
  • Class Rating: C
  • Connection: Bolt-On
  • Barrels: 1
  • Diameter: 2 in
  • Clip Center: 15 in
  • Weight: 10 lb


Product Identification
  • UPC: 782116108169
