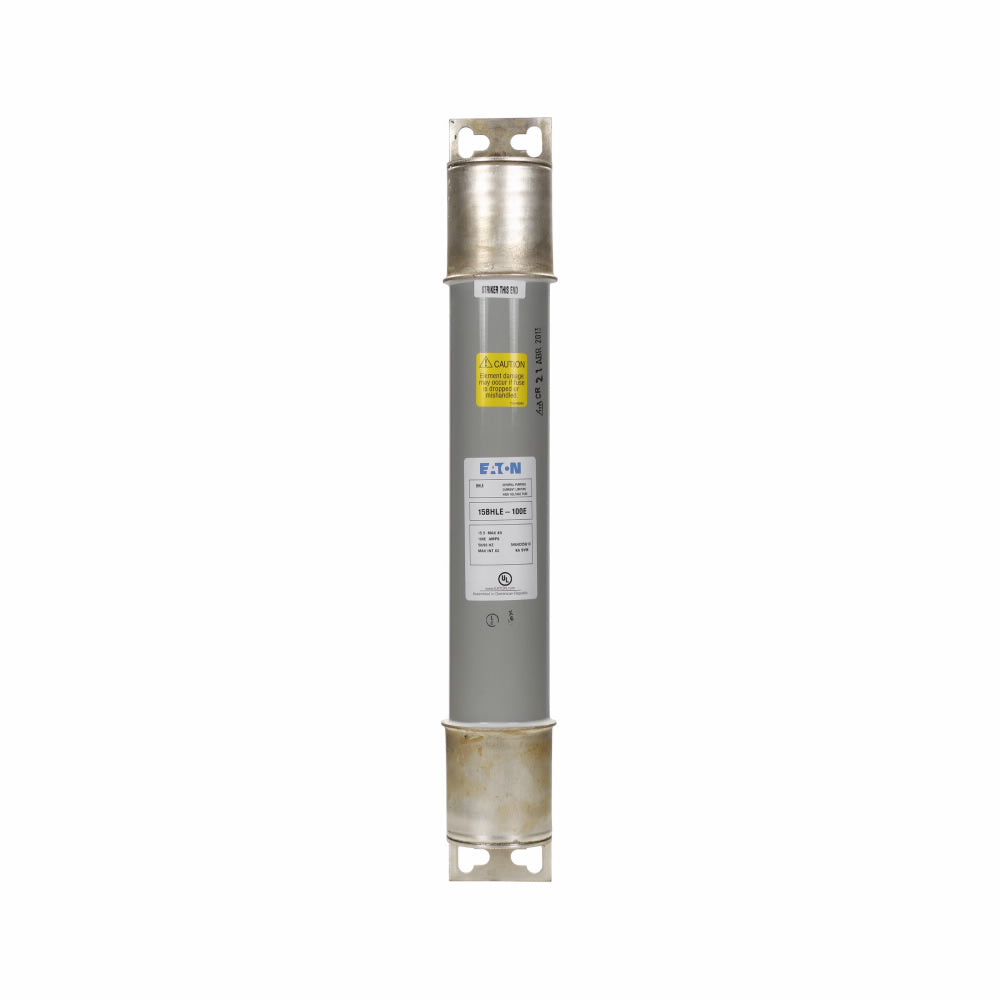

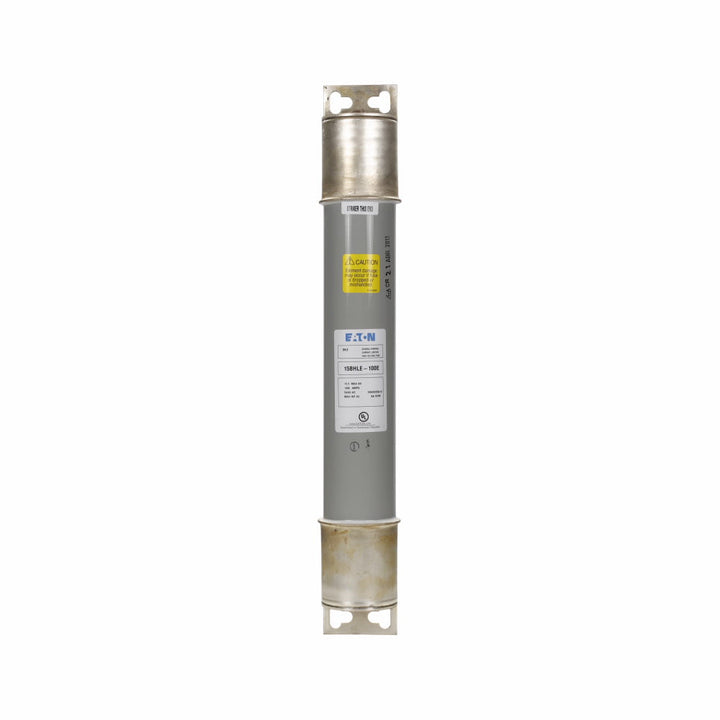

Eaton 15BHLE-200E - Medium Voltage Fuse 200A 15.5kV

Eaton
Price
Save $704.56
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 15BHLE-200E is a medium voltage current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power systems. It features a 200A current rating and a 15.5kV voltage rating, with a high interrupting capacity of 63kA. The fuse is constructed with a two-barrel design, measures 22.25 in x 7 in x 3 in, and utilizes a bolt-on connection for secure installation. It is engineered to comply with IEEE Std. C37.41 and is typically applied in medium-voltage switchgear and motor starters for reliable overcurrent and short-circuit protection.

Key Features & Specifications
  • Type: BHLE, Medium Voltage Current-Limiting Fuse, 2-Barrel Design
  • Voltage Rating: 15500V
  • Current Rating: 200A
  • Dimensions: 22.25 in (L) x 7 in (H) x 3 in (W)
  • Standards: IEEE Std. C37.41
  • Applications: Transformer, Motor, and Feeder Protection
  • AIC rating: 63kA @ 15.5kV
  • Connection: Bolt-On
  • Barrels: 2
  • Class Rating: E
  • Diameter: 3 in
  • Clip Center: 15 in
  • Weight: 20 lb


Product Identification
  • UPC: 782116108220
  • GTIN: 00782116108220
