Bussmann 155GXQSJ200ES - Medium Voltage Fuse 200A (15.5kV, 65kA AIC)
Bussmann 155GXQSJ200ES - Medium Voltage Fuse 200A (15.5kV, 65kA AIC)
Bussmann 155GXQSJ200ES - Medium Voltage Fuse 200A (15.5kV, 65kA AIC)
Bussmann 155GXQSJ200ES - Medium Voltage Fuse 200A (15.5kV, 65kA AIC)

Bussmann 155GXQSJ200ES - Medium Voltage Fuse 200A (15.5kV, 65kA AIC)

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

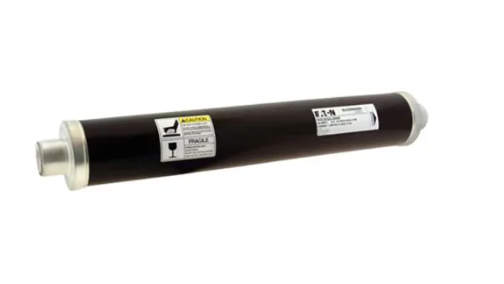

Bussmann 155GXQSJ200ES is a medium voltage fuse designed for overcurrent protection in high-voltage electrical systems. It features a 15.5kV voltage rating and 200A current rating with a 65kA interrupting capacity at 15.5kV for reliable circuit protection. The fuse construction includes a single-barrel design with DIN connection, measuring 442mm x 76mm x 76mm (HxLxW) and weighing 11.5 lb with an 89mm diameter. This Class E rated fuse meets industrial standards for medium voltage applications, making it suitable for power distribution systems, industrial controls, and electrical equipment protection.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, single barrel construction
  • Voltage Rating: 15,500V AC
  • Current Rating: 200A
  • Dimensions: 442 mm x 76 mm x 76 mm (Height x Length x Width)
  • Standards: Class E rated
  • Applications: Medium voltage power distribution, industrial control systems
  • AIC rating: [email protected]
  • Connection: DIN
  • Barrels: 1
  • Diameter: 89mm
  • Class Rating: E
  • Weight: 11.5 lb


Product Identification
  • UPC: 051712540353
