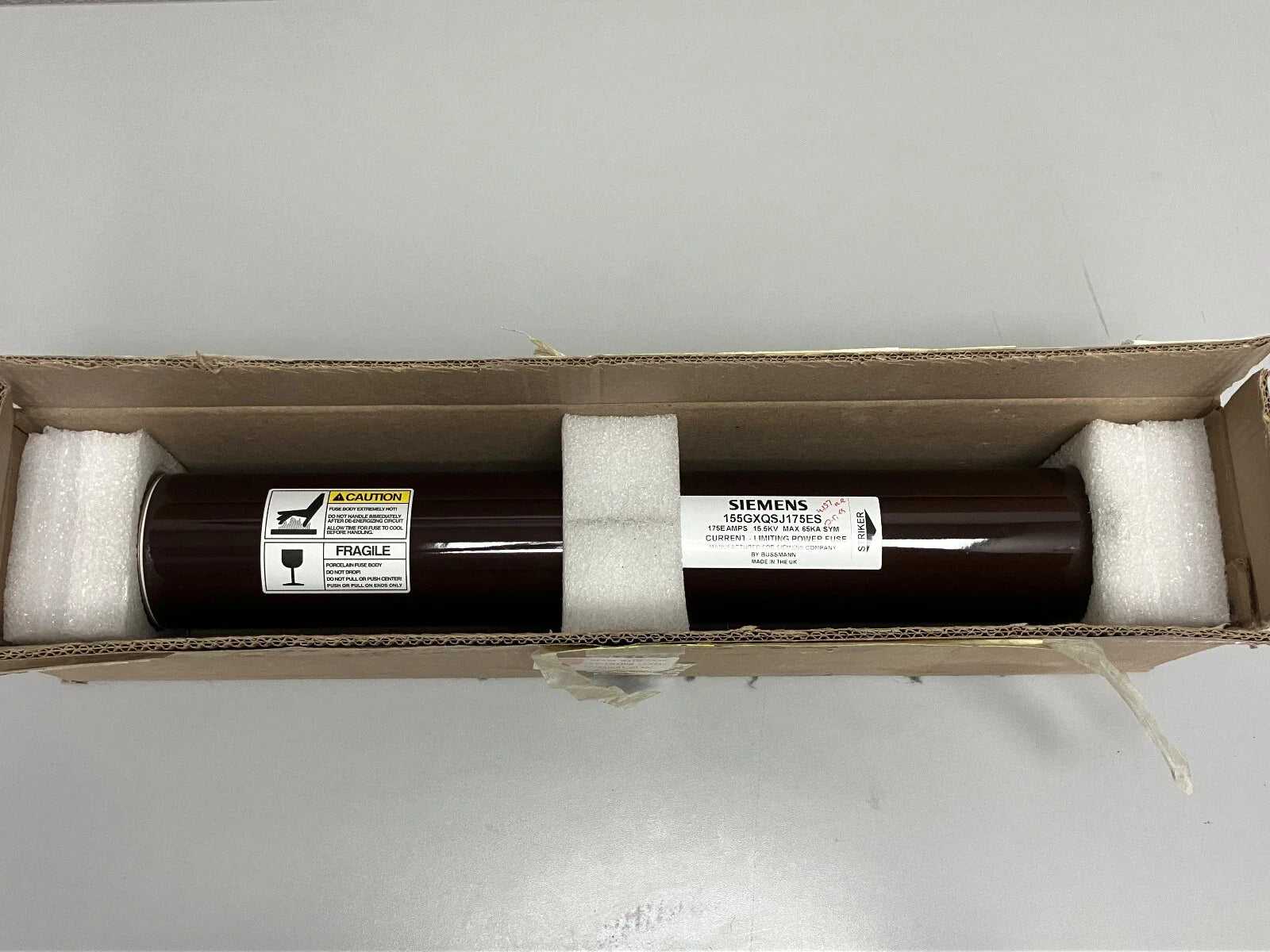

Bussmann 155GXQSJ175ES - Medium Voltage Fuse 175A (15.5kV, 65kA AIC)
Bussmann 155GXQSJ175ES - Medium Voltage Fuse 175A (15.5kV, 65kA AIC)
Bussmann 155GXQSJ175ES - Medium Voltage Fuse 175A (15.5kV, 65kA AIC)
Bussmann 155GXQSJ175ES - Medium Voltage Fuse 175A (15.5kV, 65kA AIC)

Bussmann 155GXQSJ175ES - Medium Voltage Fuse 175A (15.5kV, 65kA AIC)

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 155GXQSJ175ES is a medium voltage power fuse designed for circuit protection in high-voltage industrial applications. It features a 175A current rating and a 15.5kV voltage rating, providing reliable overcurrent protection. The fuse is constructed with a single-barrel design measuring 89mm in diameter and utilizes a DIN connection system, weighing 18 lb for robust installation. It complies with Class E standards and delivers a 65kA interrupting capacity at 15.5kV for maximum safety. Typical applications include industrial power distribution systems, motor control centers, and electrical substations requiring high-voltage protection.

Key Features & Specifications
  • Type: Medium voltage power fuse, single-barrel construction
  • Voltage Rating: 15500V AC
  • Current Rating: 175A
  • Dimensions: 89mm diameter
  • Standards: Class E
  • Applications: Industrial power distribution, motor control centers, electrical substations
  • AIC rating: [email protected]
  • Connection: DIN
  • Barrels: 1
  • Weight: 18 lb
