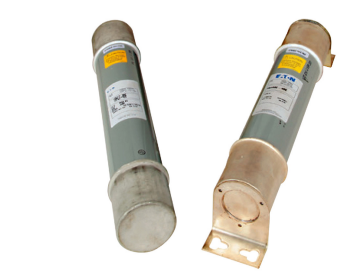

Eaton 155F1DBX20ECPS - Medium Voltage Power Fuse 20A (Class E, 15500V)

The Eaton 155F1DBX20ECPS is a medium-voltage power fuse designed for circuit protection in industrial electrical systems. It features a 15500V voltage rating and 20A current rating for reliable overcurrent protection in high-voltage applications. The fuse construction includes a single-barrel design with ferrule connections and measures 3 inches in diameter with 15-inch clip center spacing. This Class E rated fuse complies with industry standards for medium-voltage protection requirements. Typical applications include motor control centers, switchgear, and industrial power distribution systems.

Key Features & Specifications

• Type: Medium-voltage power fuse, single-barrel construction with ferrule connections
• Voltage Rating: 15500V AC
• Current Rating: 20A
• Dimensions: 3" diameter, 15" clip center spacing
• Standards: Class E rated for medium-voltage applications
• Applications: Industrial power distribution, motor control centers, switchgear protection
• Class Rating: E
• Connection: Ferrule
• Barrels: 1
• Clip Center: 15 inches
• Weight: 22 lb
