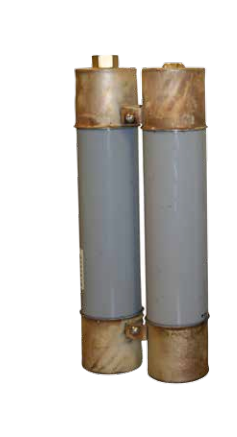

Eaton 155F1DBX100ECPS - Medium Voltage Fuse 15.5kV/100A (Class E Ferrule Connection)

Eaton 155F1DBX100ECPS is a medium voltage fuse designed for high-voltage circuit protection in industrial power systems. This Class E fuse features a 15,500V AC rating and 100A current capacity, housed in a durable 3-inch diameter ferrule-connected barrel construction. The 22 lb unit meets stringent industry standards for medium-voltage applications with its 15-inch clip center spacing. Typical applications include transformer protection, motor circuits, and feeder protection in utility and industrial power distribution systems.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E rating
• Voltage Rating: 15,500V AC
• Current Rating: 100A
• Dimensions: 3" diameter, 15" clip center spacing
• Standards: Meets industry requirements for medium-voltage protection
• Applications: Transformer/motor circuit protection, power distribution
• Connection: Ferrule terminal
• Barrels: Single-barrel design
• Weight: 22 lb
• Class Rating: E
