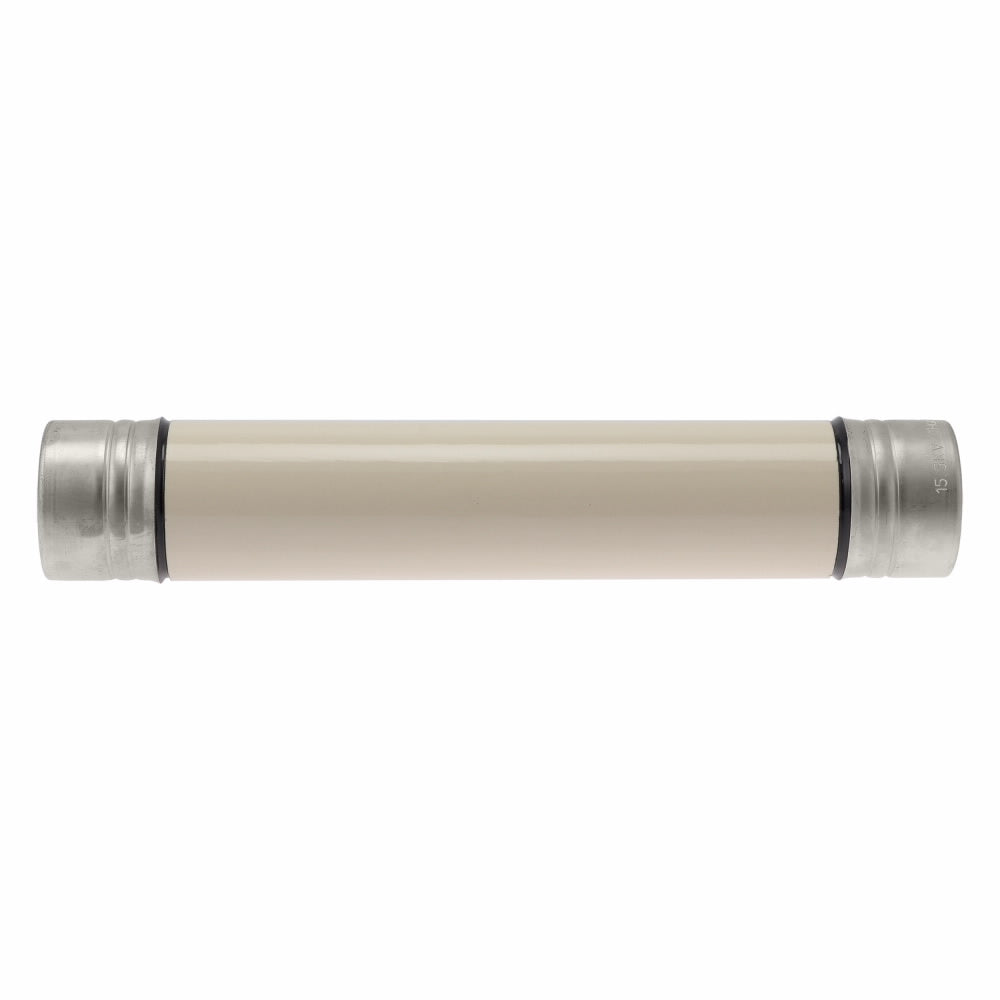

Bussmann 15.5OHGMA80 - Medium Voltage Fuse 80A (40kA AIC @ 15.5kV)

The Bussmann 15.5OHGMA80 is a medium voltage current-limiting fuse from the O Series, engineered to provide reliable overcurrent and short-circuit protection for industrial electrical systems. It features a 15.5kV voltage rating and an 80A current rating, ensuring robust performance in high-voltage applications. The fuse is constructed with a single-barrel design featuring ferrule connections and measures 2.5 inches in diameter with a weight of 6 lb, providing a compact yet durable form factor. It complies with industry standards for medium voltage protection and offers an interrupting rating of 40kA at 15.5kV, making it suitable for protecting transformers, motors, and feeder circuits in utility and industrial power distribution networks.

Key Features & Specifications

• Type: Medium Voltage Current-Limiting Fuse, OHGMA Type, Single Barrel
• Voltage Rating: 15500V AC
• Current Rating: 80A
• Dimensions: 2.5 inch Diameter
• Standards: Industry Standards for Medium Voltage Protection
• Applications: Transformer, Motor, and Feeder Circuit Protection
• Connection: Ferrule
• Barrels: 1
• AIC rating: [email protected]
• Weight: 6 lb

Product Identification

• UPC: 051712831451
• GTIN: 00051712831451
