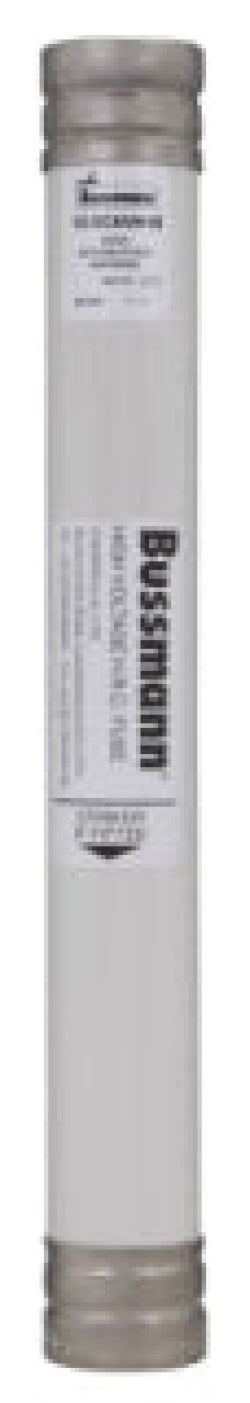

Bussmann 15.5CAVH1E - Medium Voltage Fuse 1A 15.5kV (80kA AIC)

Bussmann
Price
Save $29,140.32
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 15.5CAVH1E is a medium voltage current-limiting fuse designed for protecting transformers, motors, and capacitor banks in high-voltage industrial power systems. It features a 1A current rating and a 15.5kV voltage rating, with a high interrupting capacity of 80kA to safely clear severe fault currents. The fuse is constructed as a single-barrel, Class E device with dimensions of 328 mm x 41 mm x 41 mm and a 1.63-inch diameter, designed for use with 1.2-inch clip centers. It is manufactured to comply with BS and IEC 282-1 standards, ensuring reliable performance in utility and industrial medium-voltage switchgear and motor starter applications.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, CAV Family, Single Barrel
  • Voltage Rating: 15500V AC
  • Current Rating: 1A
  • Dimensions: 328 mm (L) x 41 mm (H) x 41 mm (W)
  • Standards: BS, IEC 282-1
  • Applications: Transformer, Motor, and Capacitor Bank Protection
  • AIC rating: 80kA @ 15.5kV
  • Class Rating: E
  • Diameter: 1.63 in
  • Barrels: 1
  • Clip Center: 1.2 in
  • Weight: 2.254 lb


Product Identification
  • UPC: 051712831161
  • GTIN: 00051712831161
