Bussmann 15.5CAV2E - Medium Voltage Fuse 2A 15.5kV

Bussmann
Price
Save $211.79
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

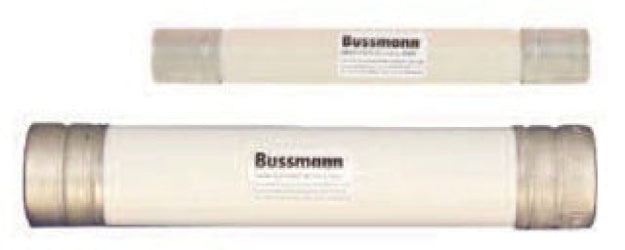

Bussmann 15.5CAV2E is a medium voltage fuse designed for high-voltage circuit protection in industrial power distribution systems. It features a 15.5kV voltage rating and a 2A current rating, providing precise overcurrent protection for sensitive equipment. The fuse is constructed as a single-barrel, Class E device with dimensions of 327 mm x 41.3 mm x 41.3 mm and a 1.63-inch diameter, engineered for reliable performance. It complies with industry standards for medium voltage applications, offering an interrupting rating of 80kA at 15.5kV. Typical applications include protecting transformers, motors, and capacitor banks in utility and industrial settings.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, CAV Family, Single Barrel
  • Voltage Rating: 15500V AC
  • Current Rating: 2A
  • Dimensions: 327 mm (Length) x 41.3 mm (Height) x 41.3 mm (Width)
  • Standards: Class E Rating
  • Applications: Transformer, Motor, and Capacitor Bank Protection
  • AIC rating: 80kA @ 15.5kV
  • Diameter: 1.63 inches
  • Barrels: 1
  • Clip Center: 1.2 inches
  • Weight: 2.07 lb


Product Identification
  • UPC: 051712831123
  • GTIN: 00051712831123
