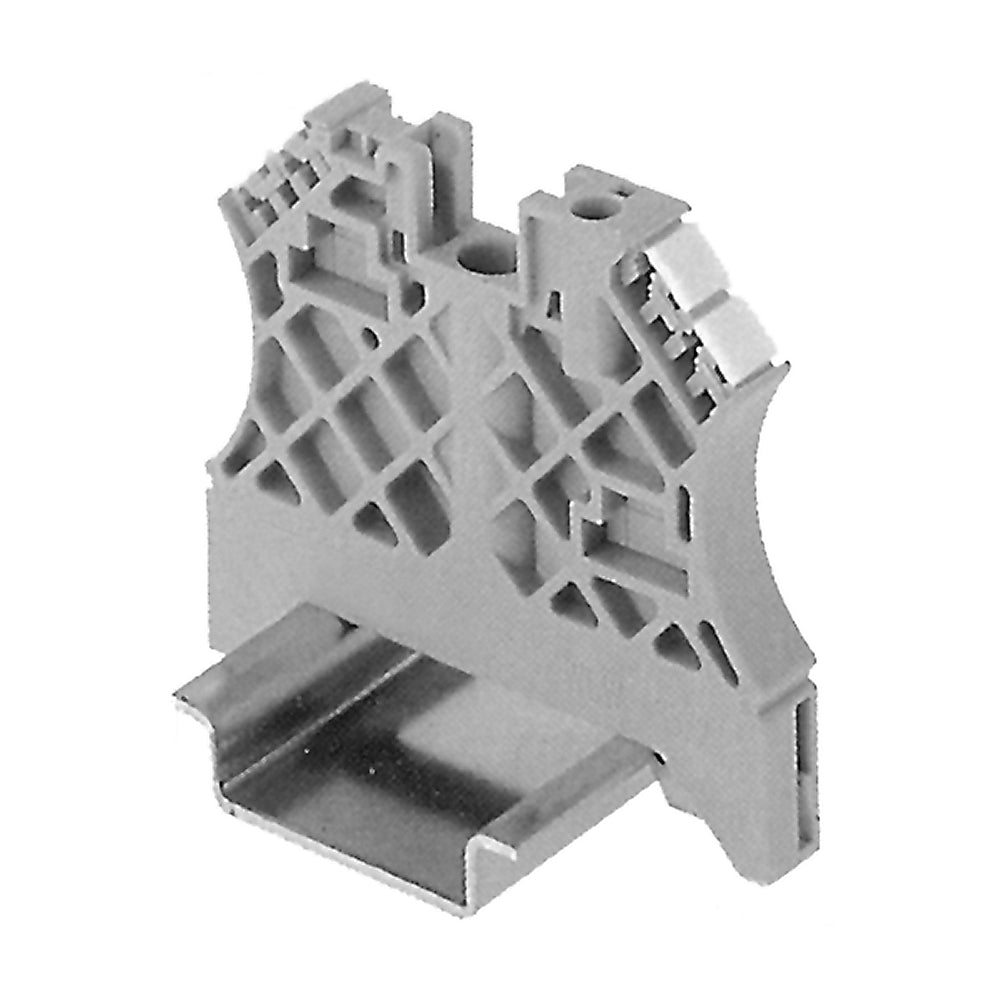

Allen-Bradley 1492-EAJ35 Terminal Block End Anchor for 35mm DIN Rail

Allen-Bradley 1492-EAJ35 Terminal Block End Anchor for 35mm DIN Rail

Need to keep a row of terminal blocks from sliding around on the rail? The Allen-Bradley 1492-EAJ35 is the small gray piece that solves it. Called an end anchor (or end stop), it clamps onto standard 35mm DIN rail at the end of a terminal block group and holds everything firmly in place. One goes at each end of the row.

In plain terms, an end anchor is a bracket that locks your blocks so they do not drift apart over time or from vibration. This one is part of the Allen-Bradley 1492 family and fits common rail types including 199-DR1, 199-DR2, and 1492-DR4 through 1492-DR8. It measures 8 x 56 x 47 mm (0.31 x 2.20 x 1.85 in), is RoHS compliant, and carries CCC and KC certifications.

Common Applications

• Holding terminal blocks in place inside electrical panels
• Keeping DIN-rail parts steady where there is vibration
• Control panels, automation cabinets, and machine wiring
• Any project using 35mm DIN rail that needs end support

Key Features

• Stops sliding: Locks your terminal blocks so they stay put.
• Easy to fit: Mounts on the standard 35mm rail most panels use.
• Wide fit: Works with many 199 and 1492 series rails.
• Compact: Small footprint for tight panel spaces.

Specifications

• Type: End anchor (end stop), normal duty
• Mounting: Standard 35mm DIN rail
• Fits rail: 199-DR1, 199-DR2, 1492-DR4 through 1492-DR8
• Color: Gray
• Certifications: CCC, KC; RoHS compliant
• Series: Allen-Bradley 1492 Terminal Block Accessories

Product Identification

• Dimensions: 8 x 56 x 47 mm (0.31 x 2.20 x 1.85 in)
• Weight: Roughly 0.04 lb (18 g) each
• UPC: 662073059813
• GTIN: 00662073059813

FAQ

What is an end anchor? It is a bracket that locks terminal blocks onto a DIN rail so they cannot slide. The 1492-EAJ35 is Allen-Bradley's normal-duty version.

What rail size does it fit? Standard 35mm DIN rail, the most common rail in control panels.

How many do I need? Typically two per terminal block group, one at each end.

Does it carry electricity? No. It is a mechanical part with no electrical rating.

What is the UPC? The UPC is 662073059813 and the GTIN is 00662073059813.
