Eaton 10250T5B62 - Pushbutton Switch 6A 600V AC

Cutler Hammer
Price
Save $34.80
/
Title
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

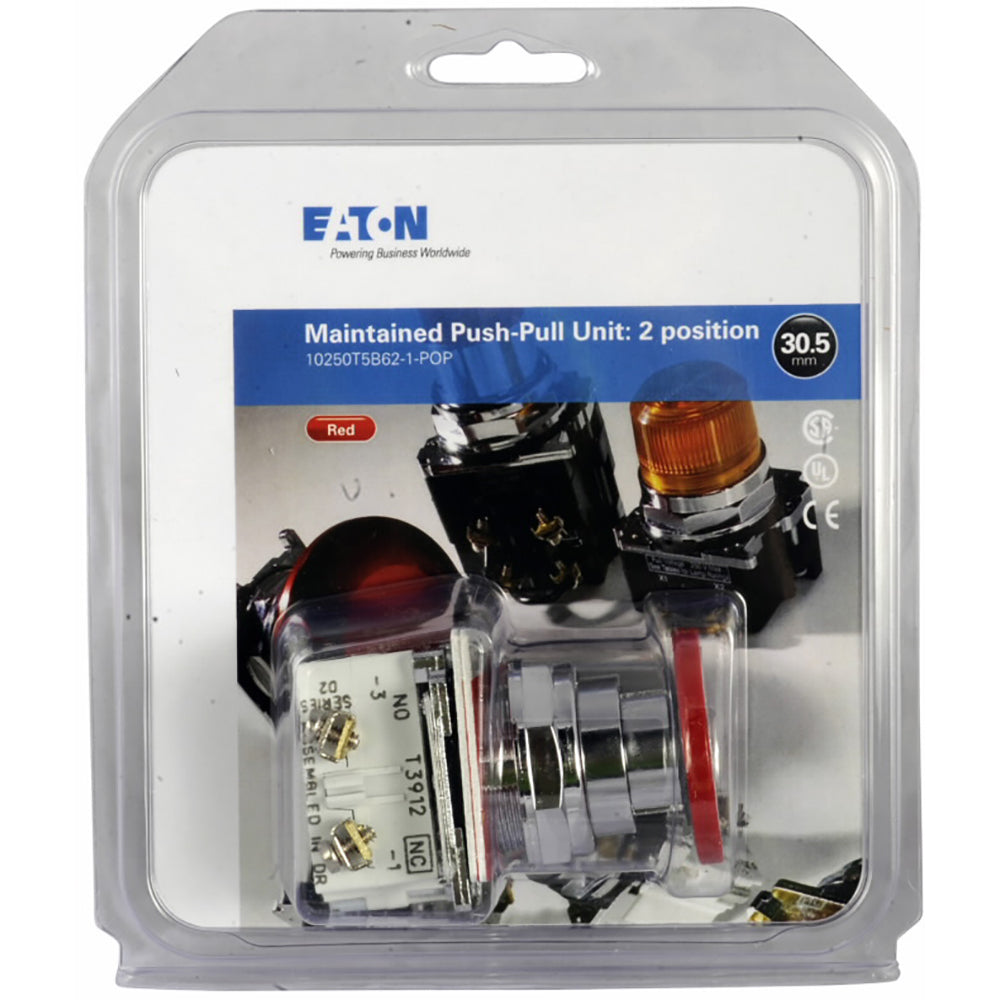

Eaton 10250T5B62 is a heavy-duty pushbutton switch from the 10250T Series designed for industrial emergency stop and control applications requiring reliable maintained push-pull operation. This non-illuminated, watertight/oiltight unit features a 40 mm round red mushroom-style actuator with a 30.5 mm panel cutout, SPST-NO contact configuration rated for 6A at 600V AC, and screw terminals for secure wiring. The switch measures 2.4 in x 3.2 in x 2.1 in (Length/Depth x Height x Width), weighs 0.4 lb, and is constructed for panel mounting with an IP65 rating and NEMA 3, 3R, 4, 4X, 12, 13 enclosures. It is UL Listed, CSA Certified, and CE Marked for compliance with global industrial standards, making it suitable for harsh environments in manufacturing, processing, and automation systems.

Key Features & Specifications
  • Manufacturer: Eaton
  • Item Subcategory: Pushbutton Switch
  • Family: 10250T Series
  • Type: 10250T
  • Country of Origin: Dominican Republic
  • Dimensions: 2.4 in x 3.2 in x 2.1 in (Length/Depth x Height x Width)
  • Weight: 0.4 lb
  • Certification: UL Listed, CSA Certified, CE Marked
  • Actuator: Standard button, 40 mm round red
  • Operation: Push-pull, maintained (two-position)
  • Contact Configuration: SPST-NO
  • Contact Current AC Max: 6A
  • Contact Voltage AC: 600V
  • Panel Cutout Diameter: 30.5 mm
  • Mounting: Panel mount
  • Terminals: Screw
  • IP Rating: IP65
  • NEMA Ratings: NEMA 3, 3R, 4, 4X, 12, 13
  • Illumination: Non-illuminated


Product Identification
  • UPC: 786685357546
  • GTIN: 786685357492
