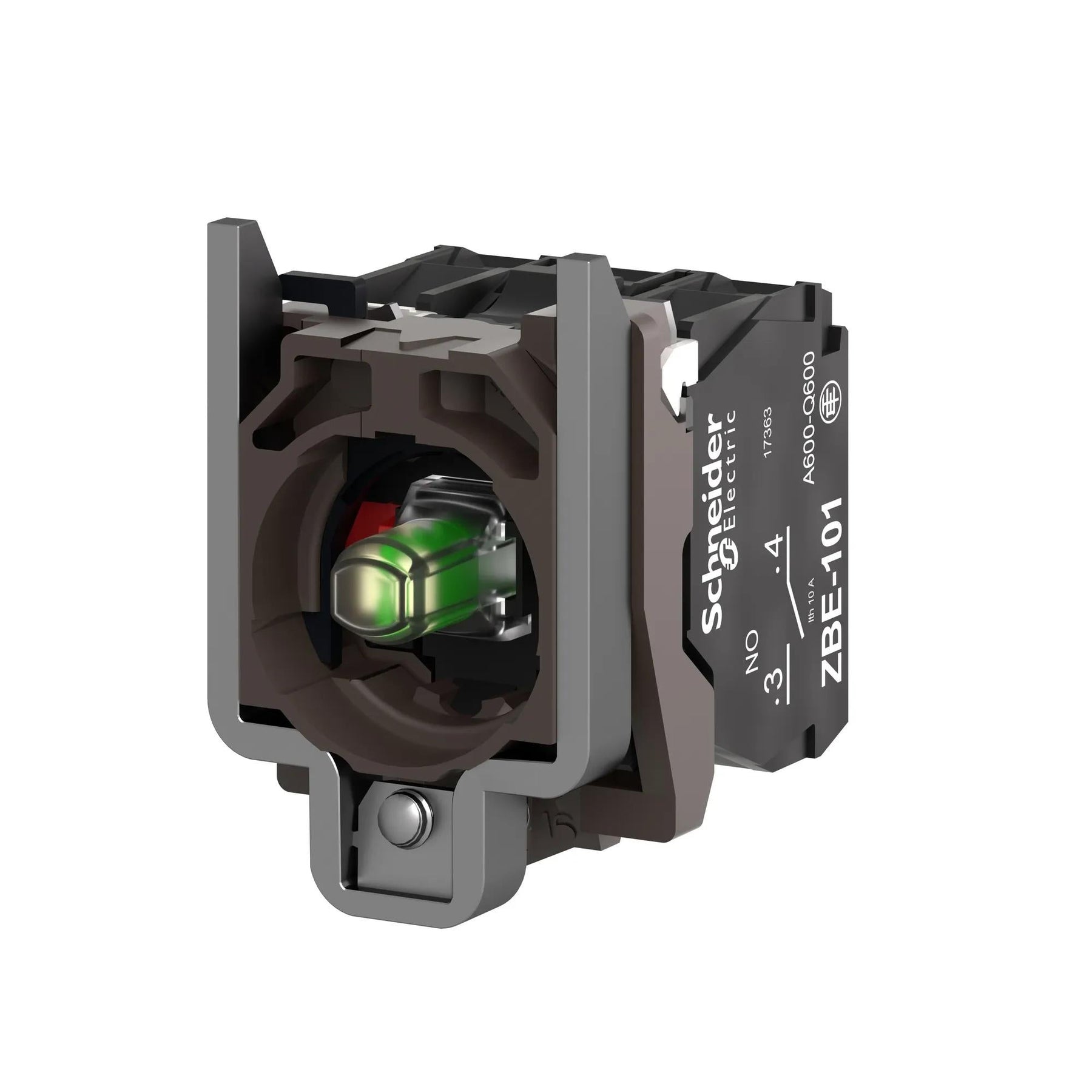

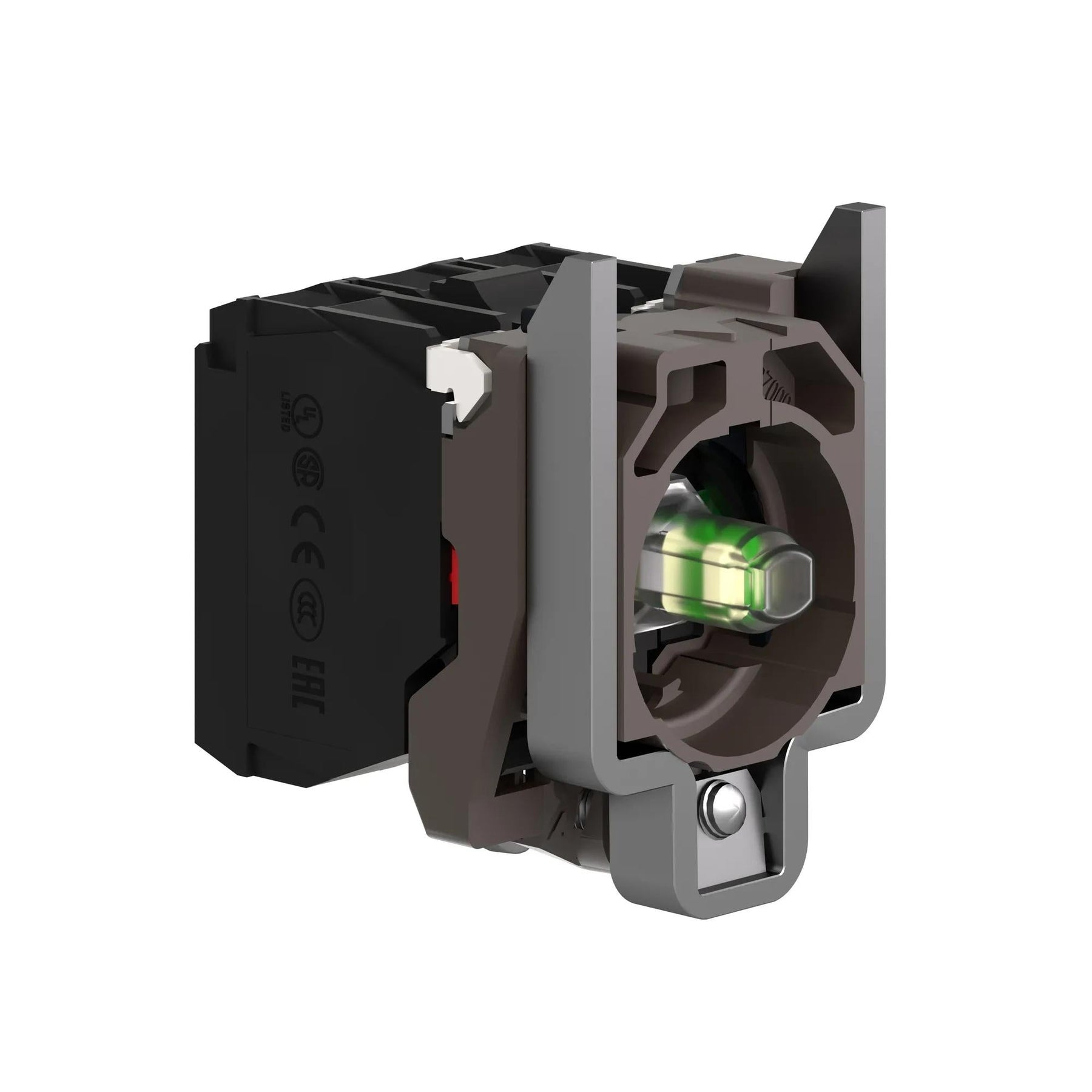

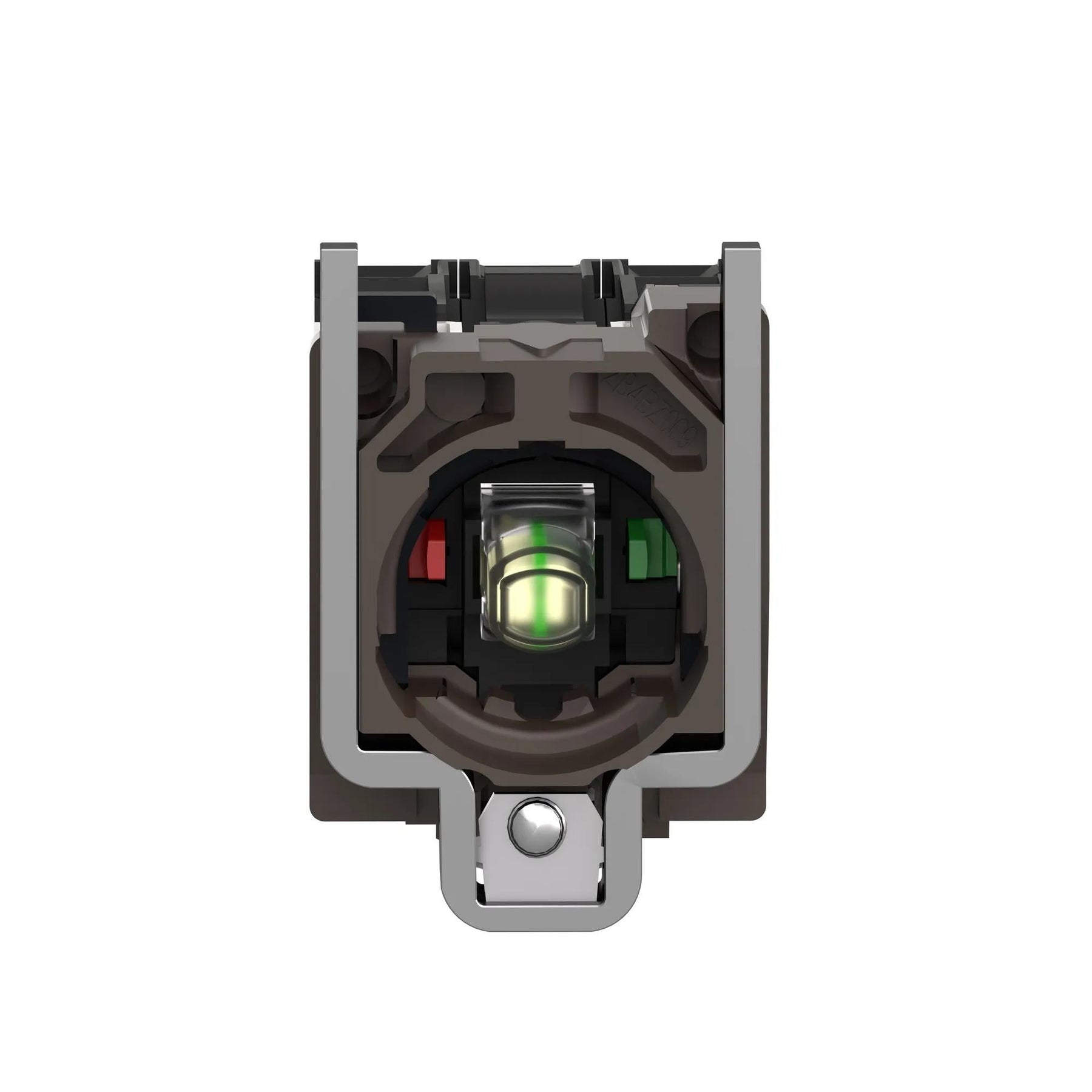

Schneider Electric ZB4BW0G15 is a Harmony XB4 series white LED light block designed for illuminated pushbutton and pilot light applications in industrial control panels. This component operates at 110 to 120 VAC and features a protected LED indicator with 1 normally open (NO) and 1 normally closed (NC) contact for versatile signaling. The unit is constructed with a metal body, mounts on a 22mm front panel, and uses screw terminals for secure wiring, weighing 0.154 lb. It is certified to BV, CSA, DNV, GL, LROS, RoHS, and UL Listed standards, with an operating temperature range of -13 to 158 °F (-25 to 70 °C). Typical applications include control stations, automation panels, and machinery interfaces requiring reliable visual status indication.
Key Features & Specifications
Manufacturer: Schneider Electric
Family: Harmony XB4 Family
Type: ZB4 Series
Section: Lamp Holders & Light Modules
Type: LED Light Block
Color: White
Voltage Rating: 110 to 120 ACV
Mounting: 22mm Front Panel

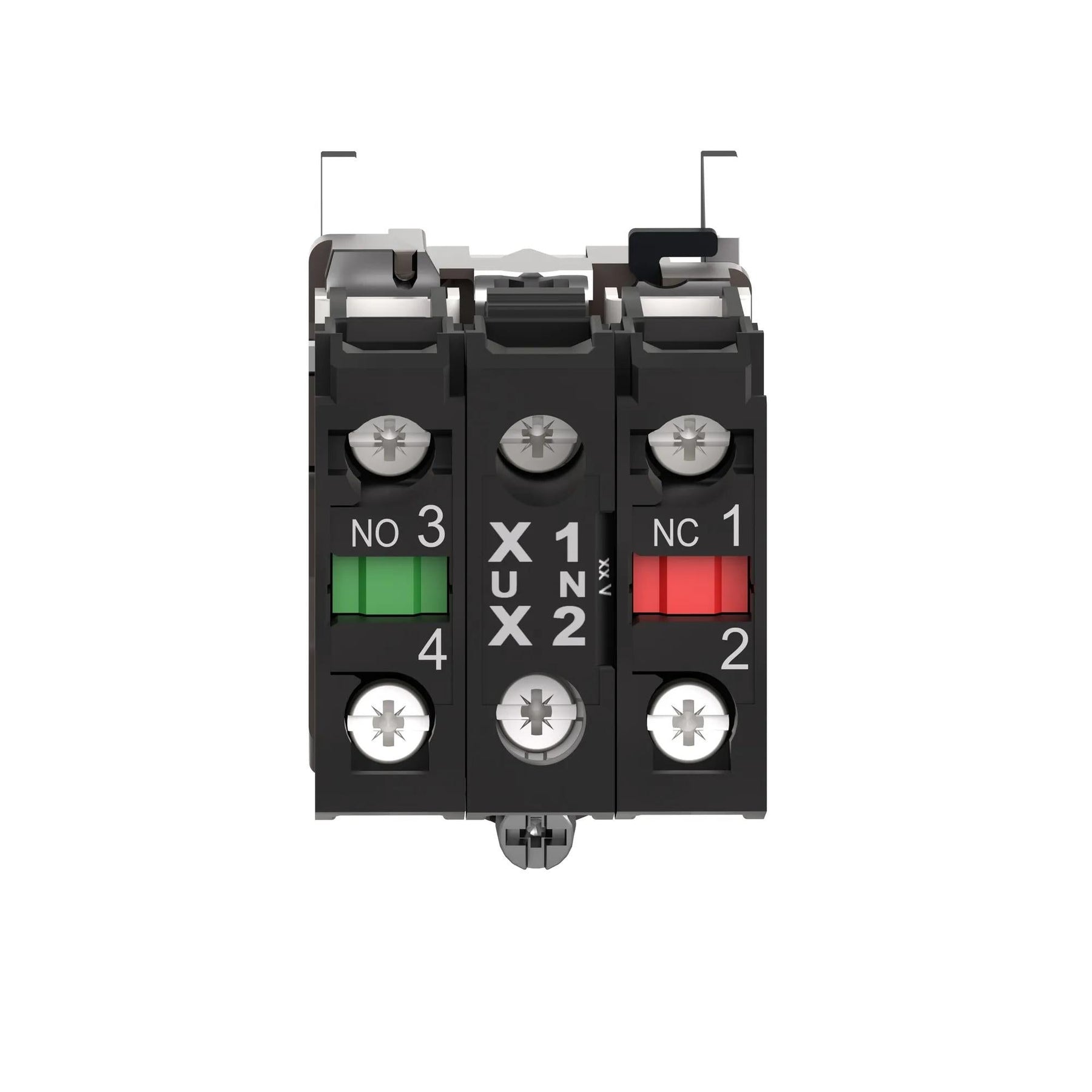

Contacts: 1 NO + 1 NC
Terminals: Screw
Body Material: Metal
Weight: 0.154 lb
Temp Rating: -13–158 °F (-25–70 °C)
Certification: BV, CSA, DNV, GL, LROS, RoHS, UL Listed
Country of Origin: France
Product Identification
UPC: 38911089331
GTIN: 03389110893311
