Schneider Electric XB4BT845 - Emergency Stop Switch 40mm Mushroom
Schneider Electric XB4BT845 - Emergency Stop Switch 40mm Mushroom
Schneider Electric XB4BT845 - Emergency Stop Switch 40mm Mushroom
Schneider Electric XB4BT845 - Emergency Stop Switch 40mm Mushroom
XB4BT845 Schneider Electric Emergency Stop Switch - Essential Electric Supply
XB4BT845 Schneider Electric Emergency Stop Switch - Essential Electric Supply
Schneider Electric XB4BT845 - Emergency Stop Switch 40mm Mushroom
Schneider Electric XB4BT845 - Emergency Stop Switch 40mm Mushroom
Schneider Electric XB4BT845 - Emergency Stop Switch 40mm Mushroom
Schneider Electric XB4BT845 - Emergency Stop Switch 40mm Mushroom

Schneider Electric XB4BT845 - Emergency Stop Switch 40mm Mushroom

Schneider Electric
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

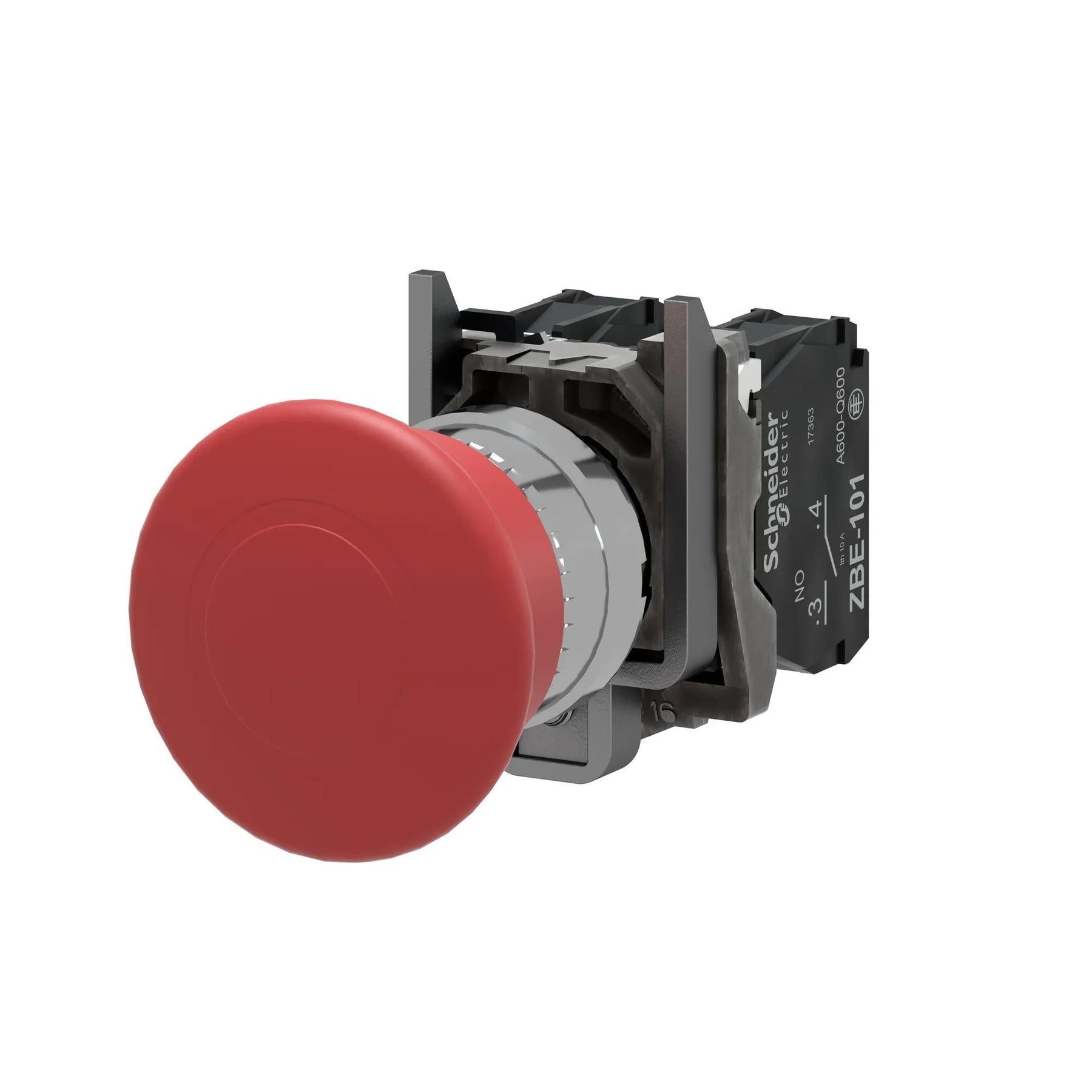

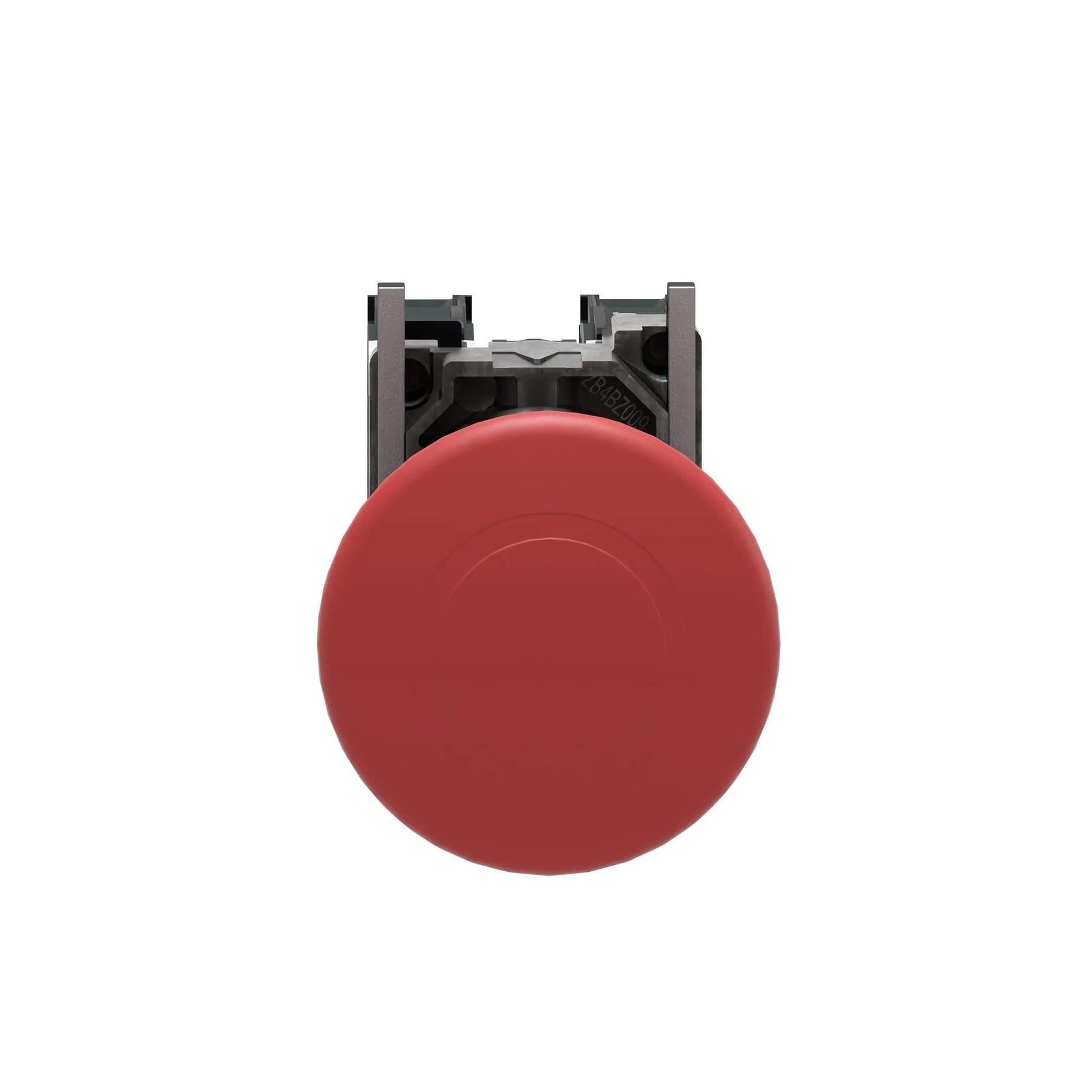

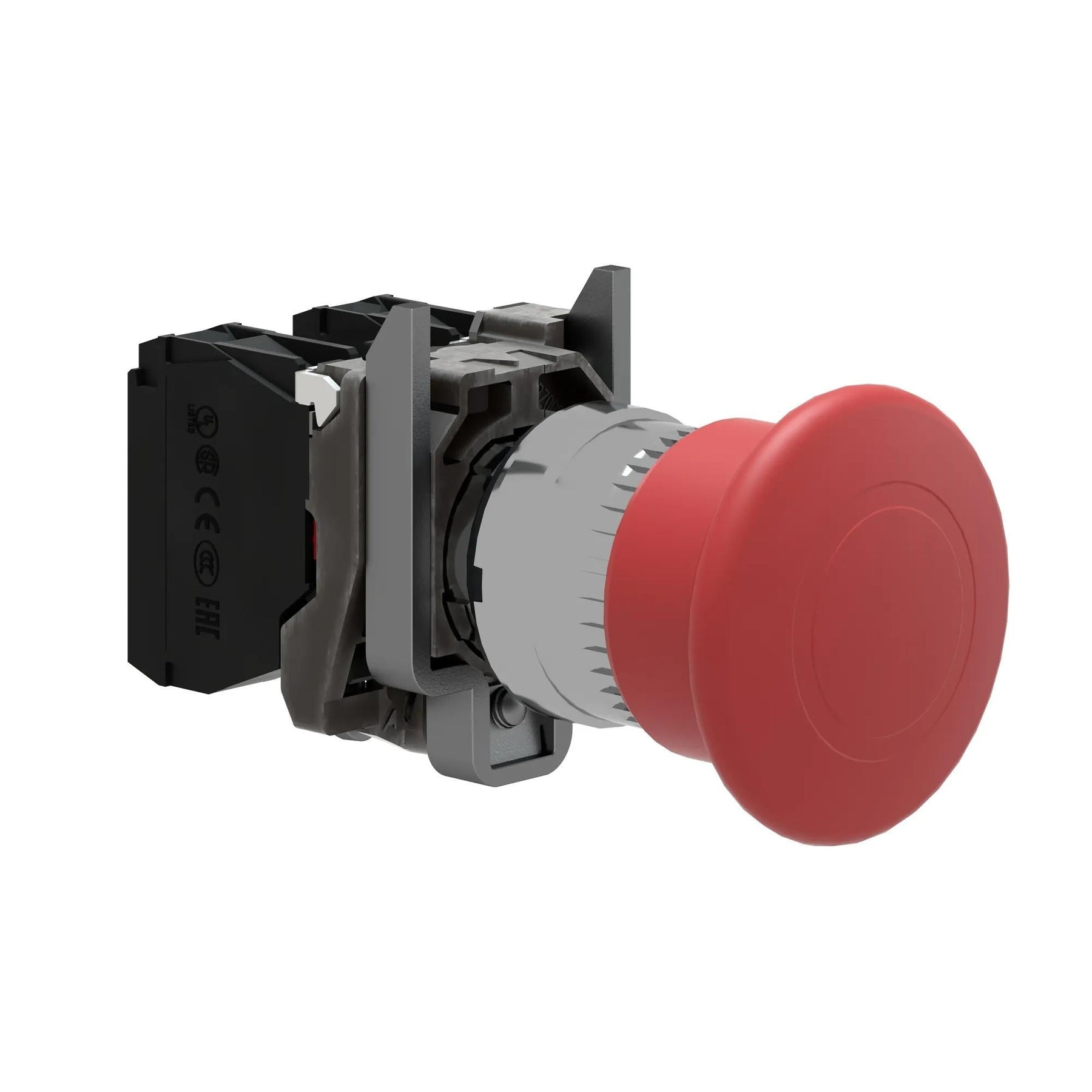

Schneider Electric XB4BT845 is an emergency stop switch from the Harmony XB4 series, designed for immediate machine shutdown in industrial environments. It features a 40mm red mushroom head operator with push-pull reset and 1NO + 1NC slow-break silver alloy contacts, rated for up to 10A IEC and 6A at 120V. The switch measures 1.9 in (47 mm) x 1.6 in (40 mm) x 3.2 in (82 mm), weighs 0.294 lb, and is constructed with a chromium-plated metal bezel for panel mounting in a 22mm cut-out with screw clamp terminals. It complies with multiple international standards including EN/IEC 60947 series, UL 508, CSA C22.2 No.14, and EN/ISO 13850, and is certified by Bureau Veritas, CSA, DNV, and Lloyd's Register. This switch is suitable for industrial, automotive, and commercial applications requiring reliable emergency stop functionality with IP66 and IK03 protection ratings.

Key Features & Specifications
  • Type: Harmony XB4 Series

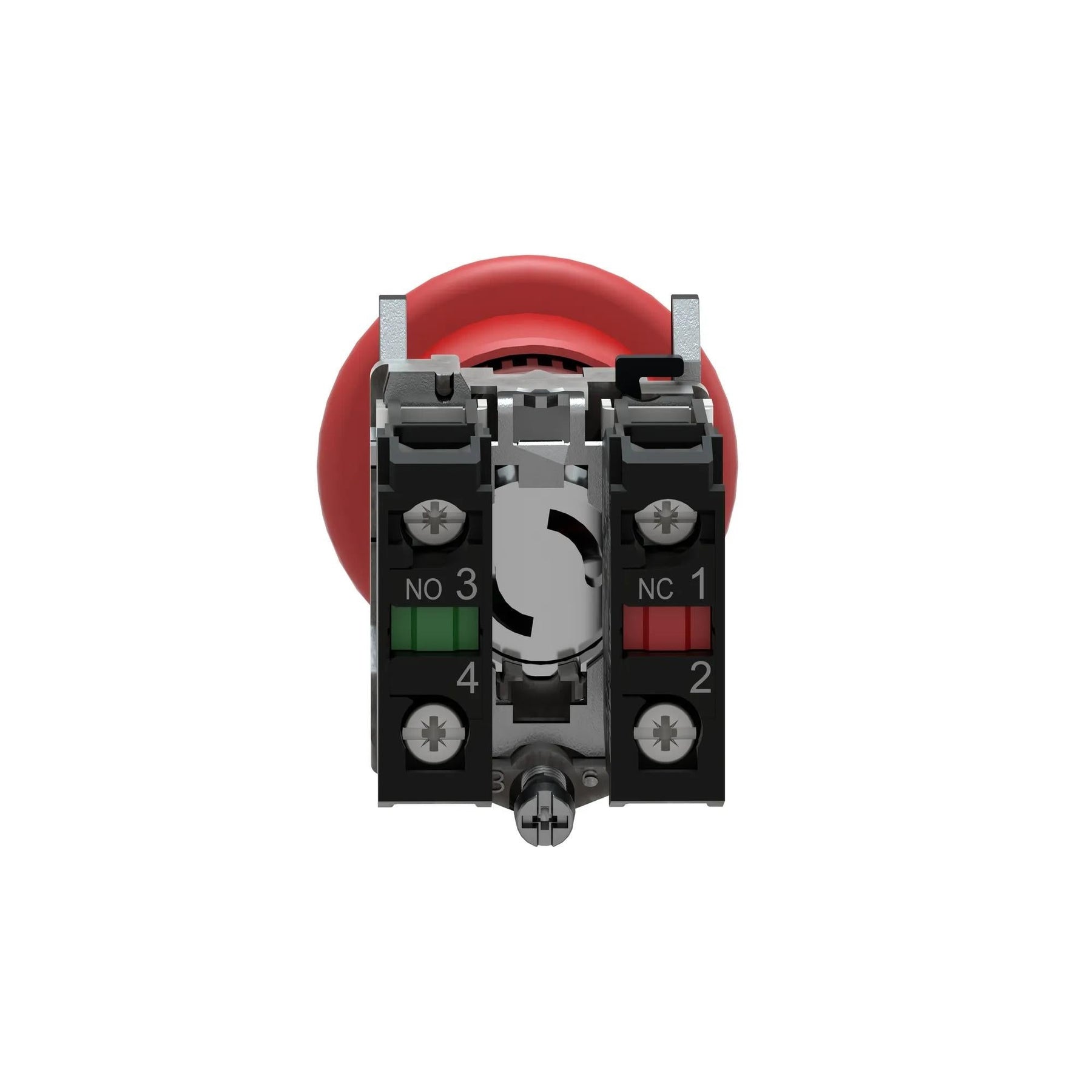

  • Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
  • Operator Type: Red Mushroom, Ø40mm, unmarked
  • Reset Type: Push-Pull
  • Mounting: Panel mount, 22mm cut-out
  • Contact Material: Silver alloy (Ag/Ni), slow-break
  • Electrical Rating: 6A, 120V (typical), up to 10A IEC rated
  • Protection Rating: IP66, IK03
  • Mechanical Durability: 300,000 cycles
  • Bezel Material: Chromium plated metal
  • Dimensions: 1.9 in (47 mm) x 1.6 in (40 mm) x 3.2 in (82 mm) (Height x Width x Depth)
  • Weight: 0.294 lb
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Certification: Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
  • Country of Origin: Czechia


Product Identification
  • UPC: 38911089190
  • GTIN: 03389110891904
