Square D VHU362SSGL - Non-Fusible Disconnect Switch 600V 60A 3-Pole

Price
Regular price $2,332.93
Regular price $3,444.00 Sale price $2,332.93
Save $1,111.07
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

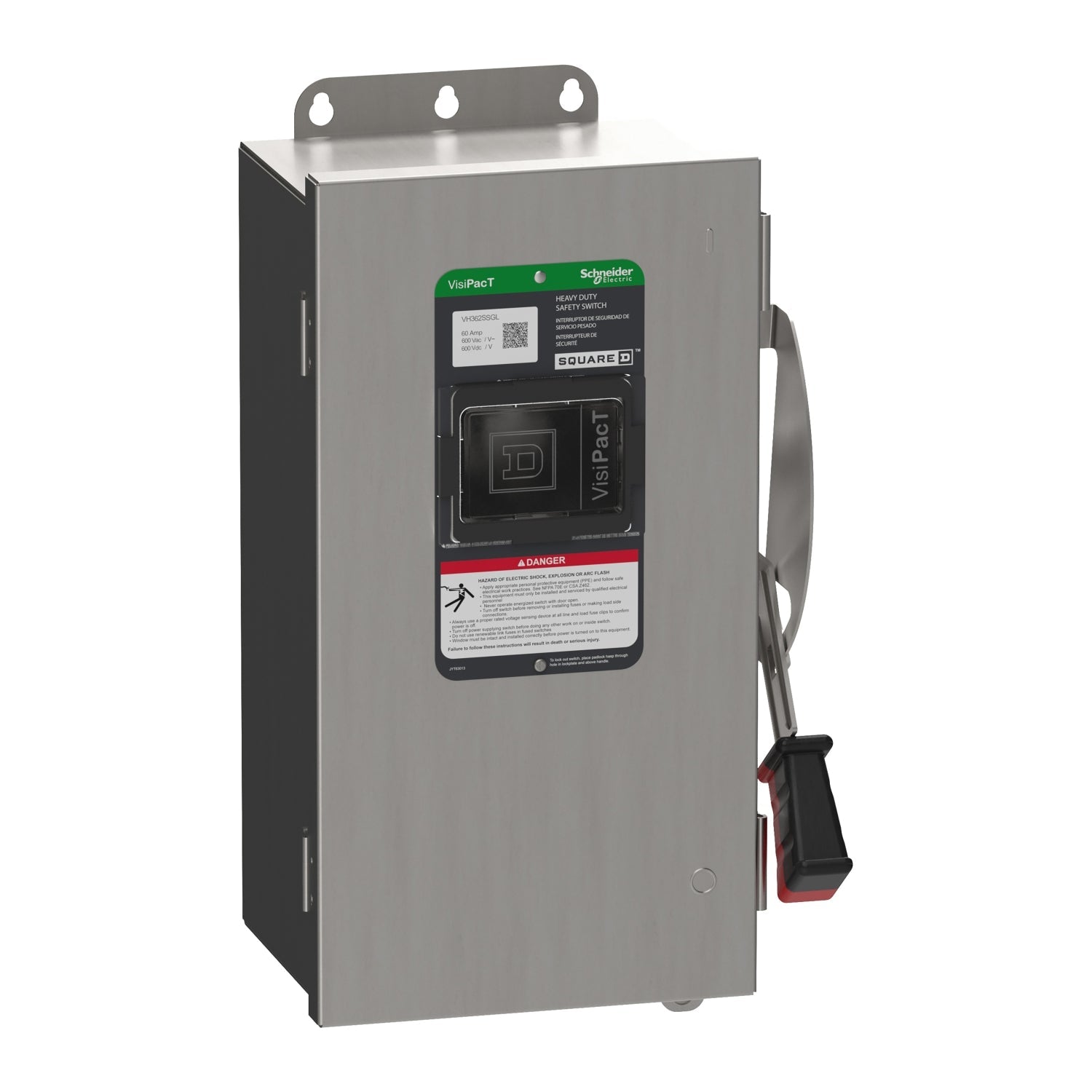

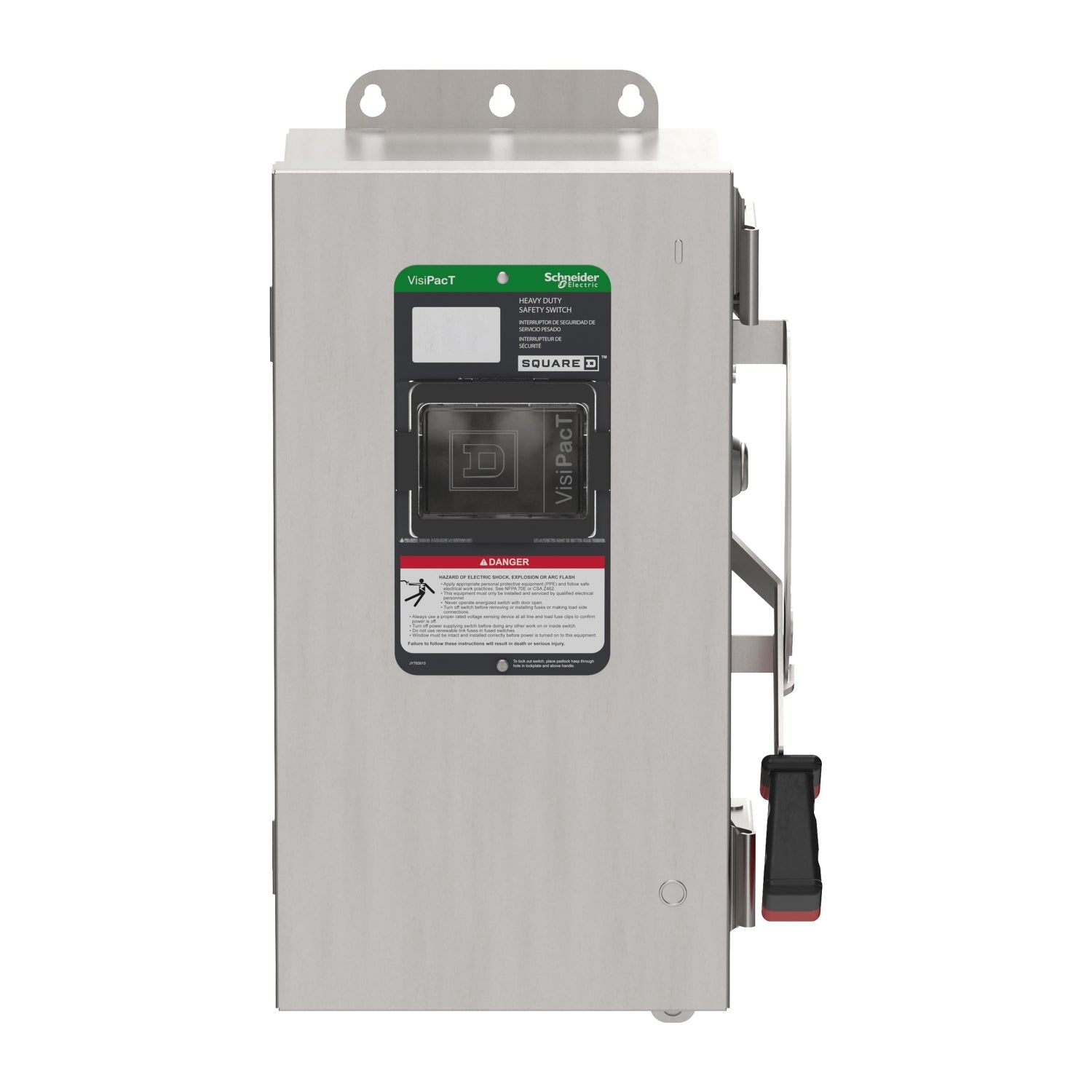

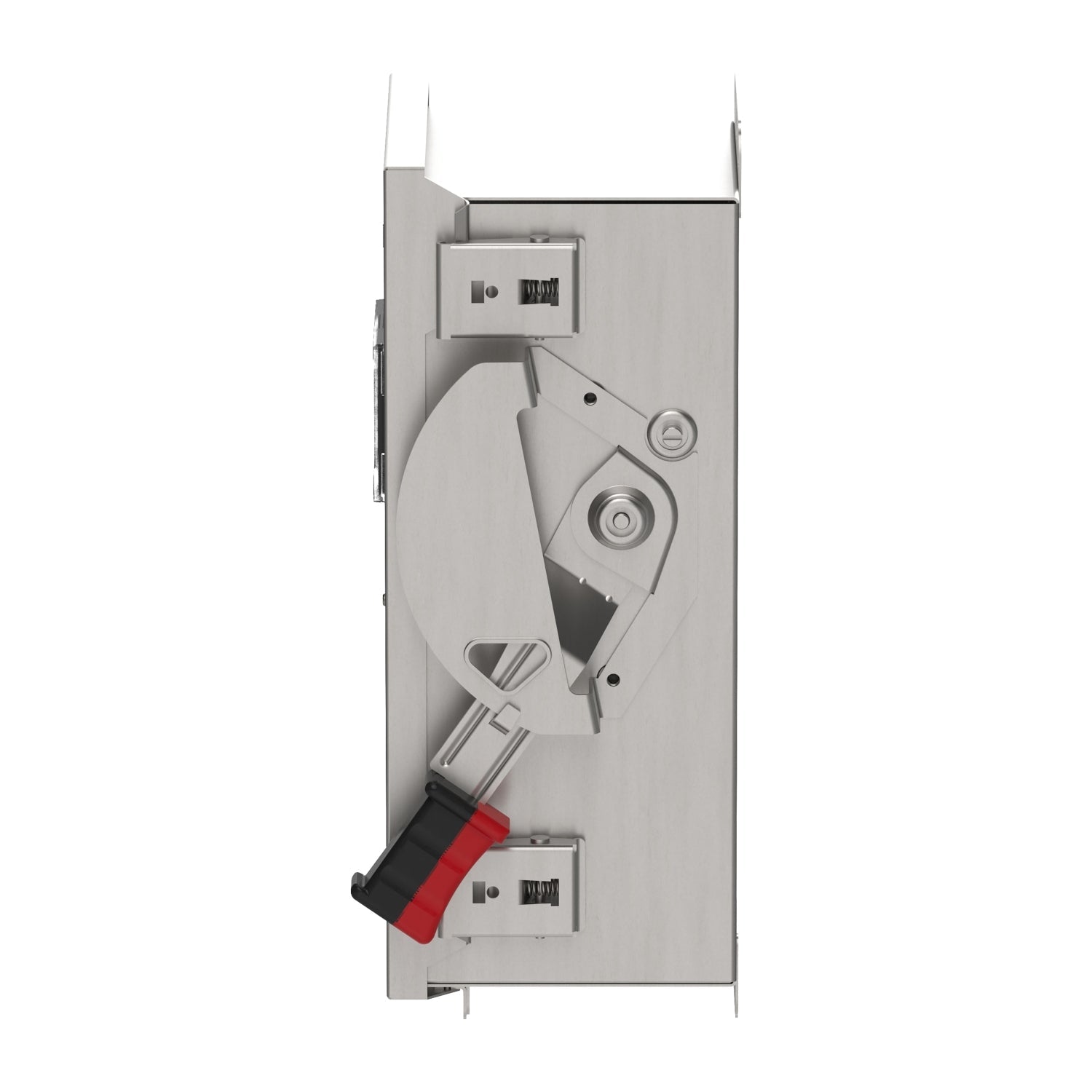

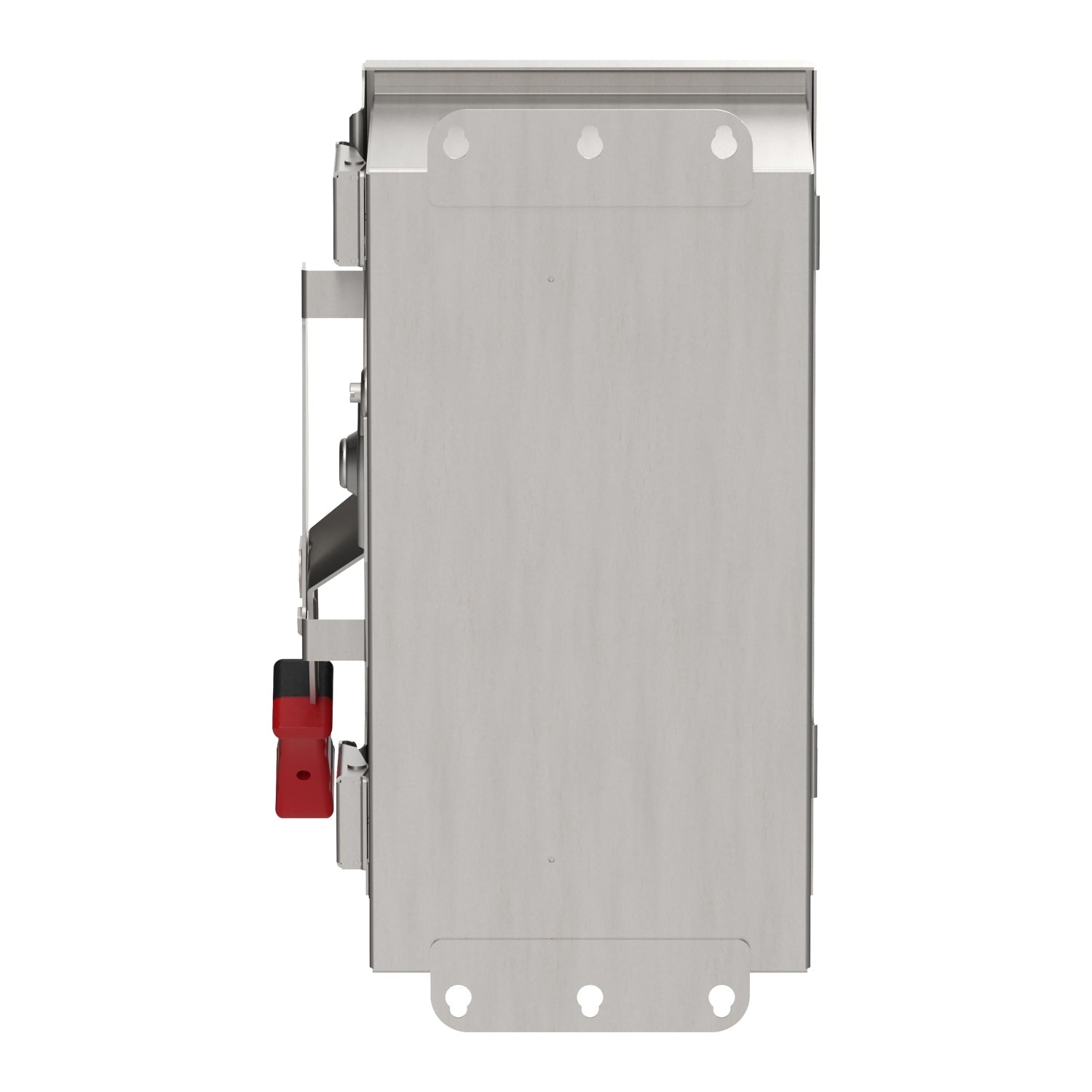

Square D VHU362SSGL is a heavy-duty industrial disconnect switch designed for the safe isolation of three-phase electrical circuits. It provides reliable circuit protection with a 600V AC voltage rating and a 60A current rating, housed within a robust NEMA 4X enclosure measuring 430.02 mm H x 226.57 mm W x 184.40 mm D and weighing 20.9 lb. This non-fusible switch is UL listed (file E3043) and operates across a wide temperature range from -25°C to 70°C. It is engineered for demanding applications such as motor control centers, industrial machinery, and power distribution panels, accepting copper or aluminum conductors from AWG 14 to AWG 3.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Heavy-Duty Industrial Enclosure
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • Wire Size: AWG 14 to AWG 3 (Aluminum or Copper)
  • NEMA Rating: NEMA 4X (Corrosion and Weather Resistant)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 430.02 mm H x 226.57 mm W x 184.40 mm D (16.93 in x 8.92 in x 7.26 in)
  • Weight: 20.9 lb
  • Certification: UL Listed (File E3043)
  • Country of Origin: United States


Product Identification
  • UPC: 060648589469
  • GTIN: 03606485894690
