Square D VHU362AWKGL - Non-Fusible Safety Switch 600V 60A 3-Pole

Price
Regular price $738.13
Regular price $833.00 Sale price $738.13
Save $94.87
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

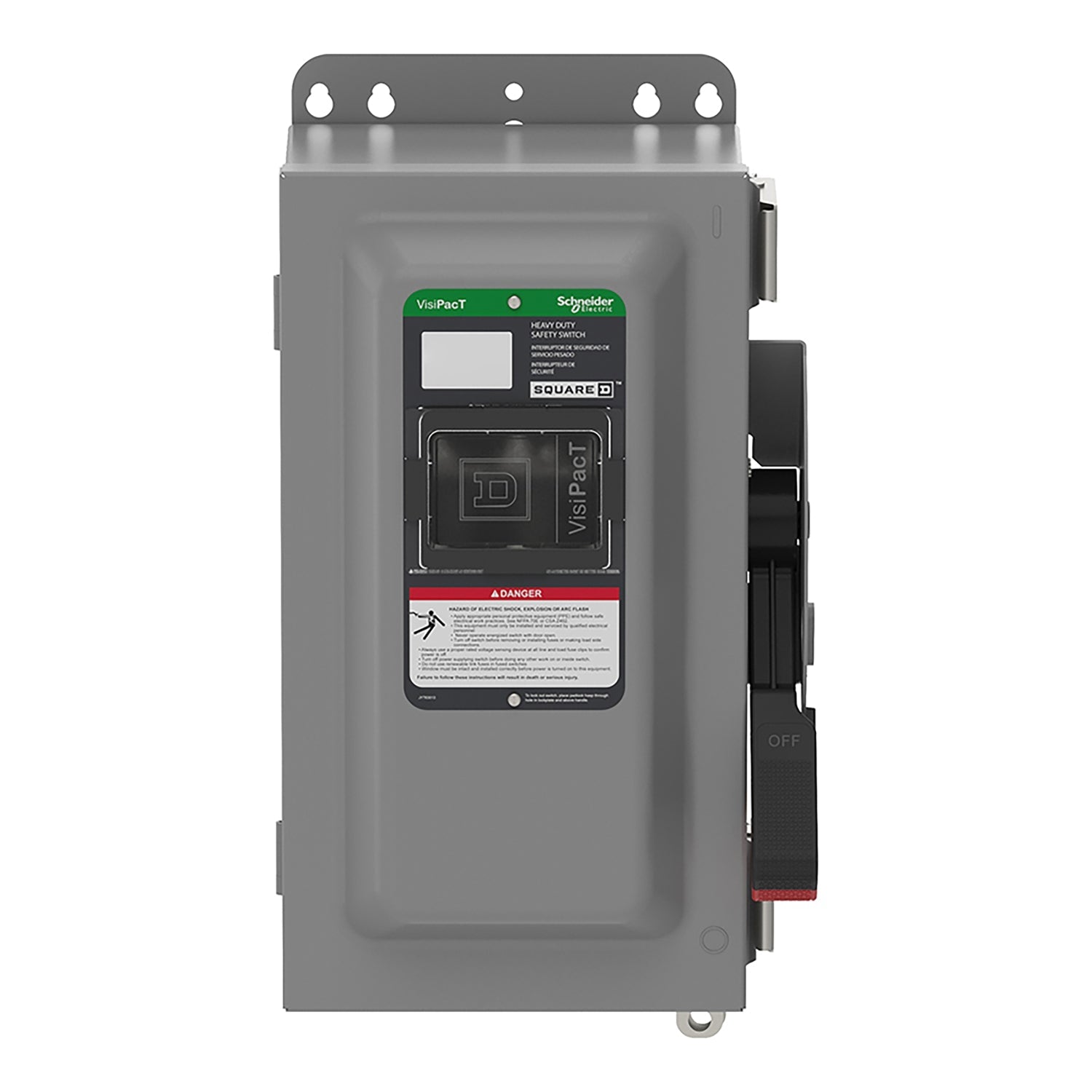

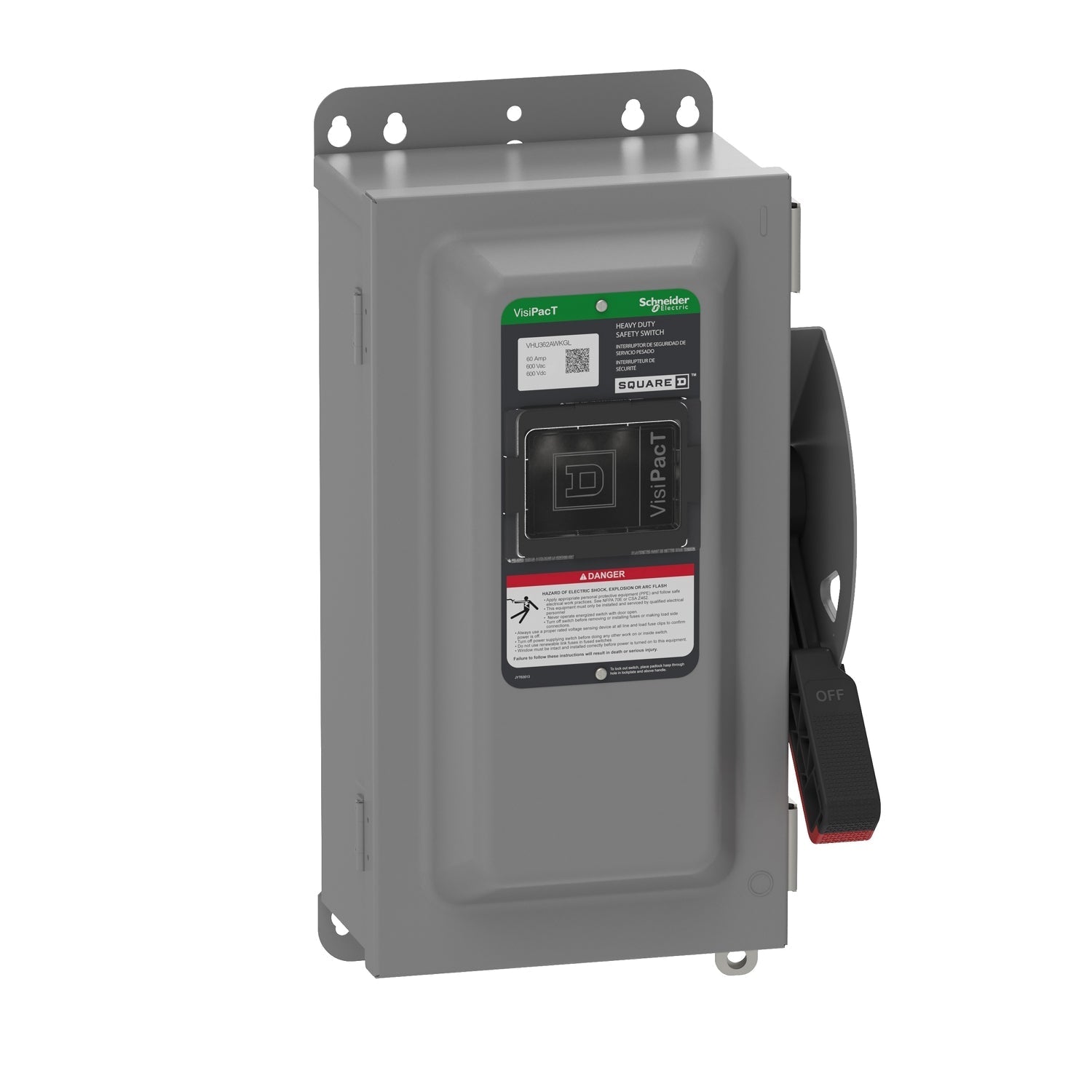

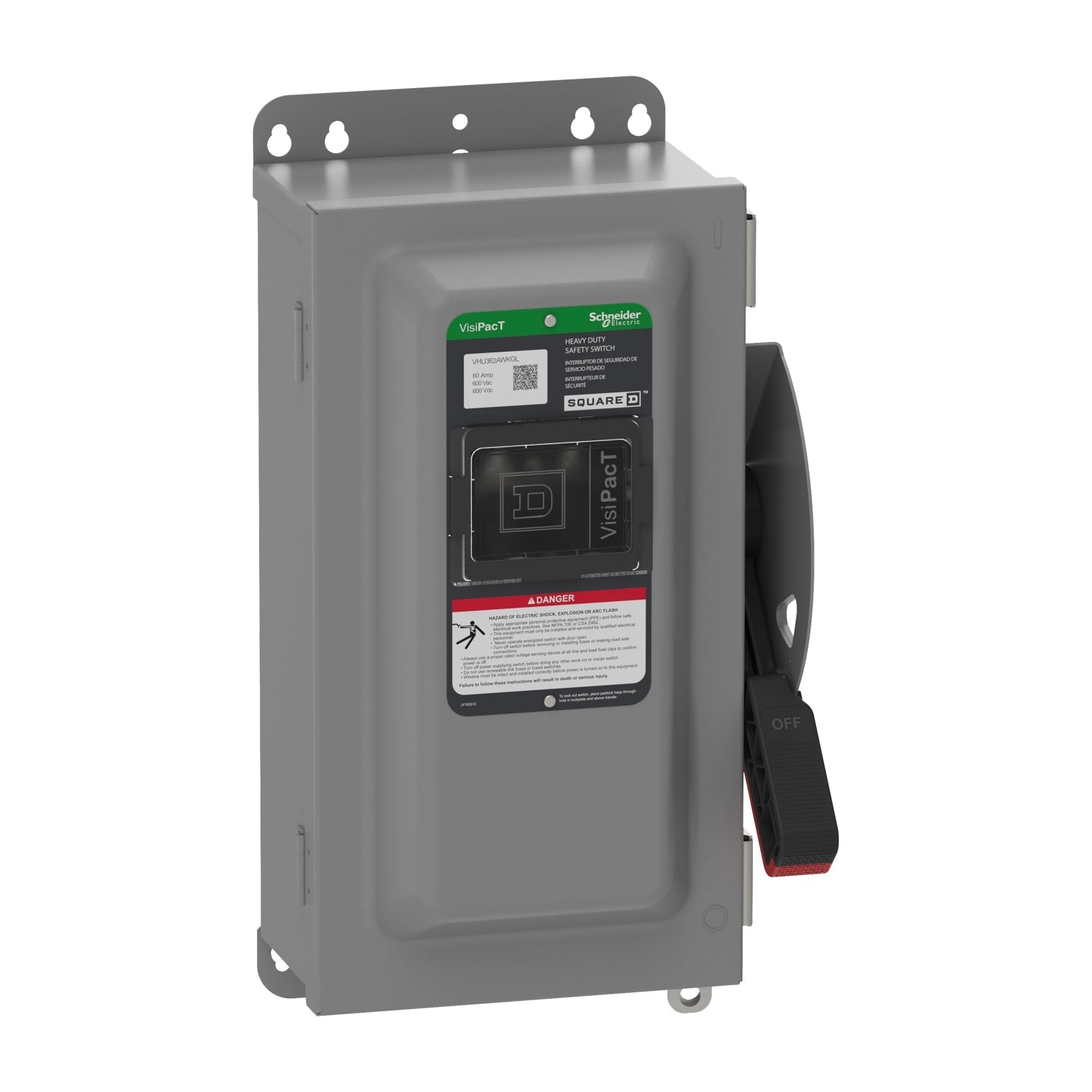

Square D VHU362AWKGL is a non-fusible safety switch designed for providing a visible disconnect and isolation point for three-phase electrical circuits. It is rated for 600V AC and 60A, constructed within a robust NEMA 12 enclosure measuring 420.12 mm H x 226.57 mm W x 181.97 mm D and weighing 20.9 lb for protection against dust and dripping liquids. The switch is UL listed (file E3033) and features a three-pole, single-throw configuration with terminals that accept copper or aluminum wire ranging from AWG 14 to AWG 3. This disconnect is typically applied in industrial and commercial settings for motor control and main feeder circuit isolation.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, Three-Pole, Single-Throw
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 420.12 mm H x 226.57 mm W x 181.97 mm D (16.54 in x 8.92 in x 7.16 in)
  • Weight: 20.9 lb
  • Standards: UL Listed (File E3033), NEMA 12 Enclosure
  • Applications: Motor Disconnect, Main Feeder Isolation, Industrial Control Panels
  • Configuration: Single
  • Poles: 3
  • Phase: 3-Phase
  • Wire Size: AWG 14 to AWG 3, AWG 12 to AWG 3 (Aluminum/Copper)
  • Switch Style: Non-Fusible
  • NEMA Rating: NEMA 12
  • Country of Origin: United States


Product Identification
  • UPC: 060648589467
  • GTIN: 03606485894676
