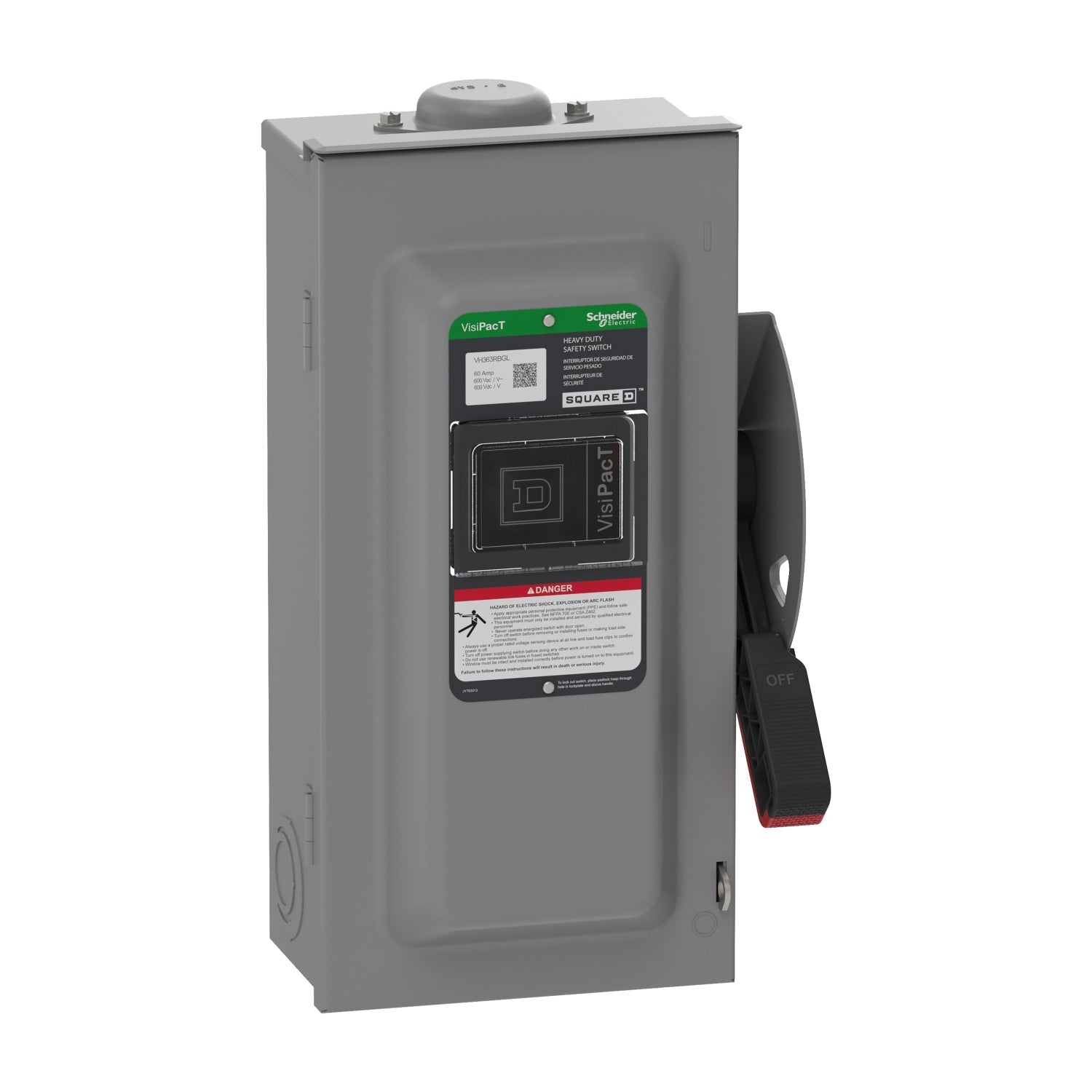

Square D VH363RBGL is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC and 100A, constructed with a rugged NEMA 3R enclosure measuring 561.4 mm H x 230.6 mm W x 178.3 mm D and weighing 19.8 lb for durability in outdoor applications. The switch is UL listed (file E3001) and is compatible with H, K, R, and J class fuses to facilitate proper coordination with downstream protective devices. Its three-pole, single-configuration design is typically applied in motor control centers, HVAC systems, and industrial machinery where a reliable, code-compliant means of isolation is required.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch
Voltage Rating: 600V AC
Current Rating: 100A
Dimensions: 561.4 mm H x 230.6 mm W x 178.3 mm D (22.103 in x 9.08 in x 7.019 in)
Weight: 19.8 lb
Standards: UL Listed (File E3001), NEMA 3R Enclosure Rating
Applications: Motor Control Centers, Industrial Machinery, HVAC Systems
Switch Style: Fusible
Configuration: Single
Phase: 3
Poles: 3
Wire: 3
Fuse Class: H, K, R, J
Country of Origin: United States
Product Identification
UPC: 060648589421
GTIN: 03606485894218
