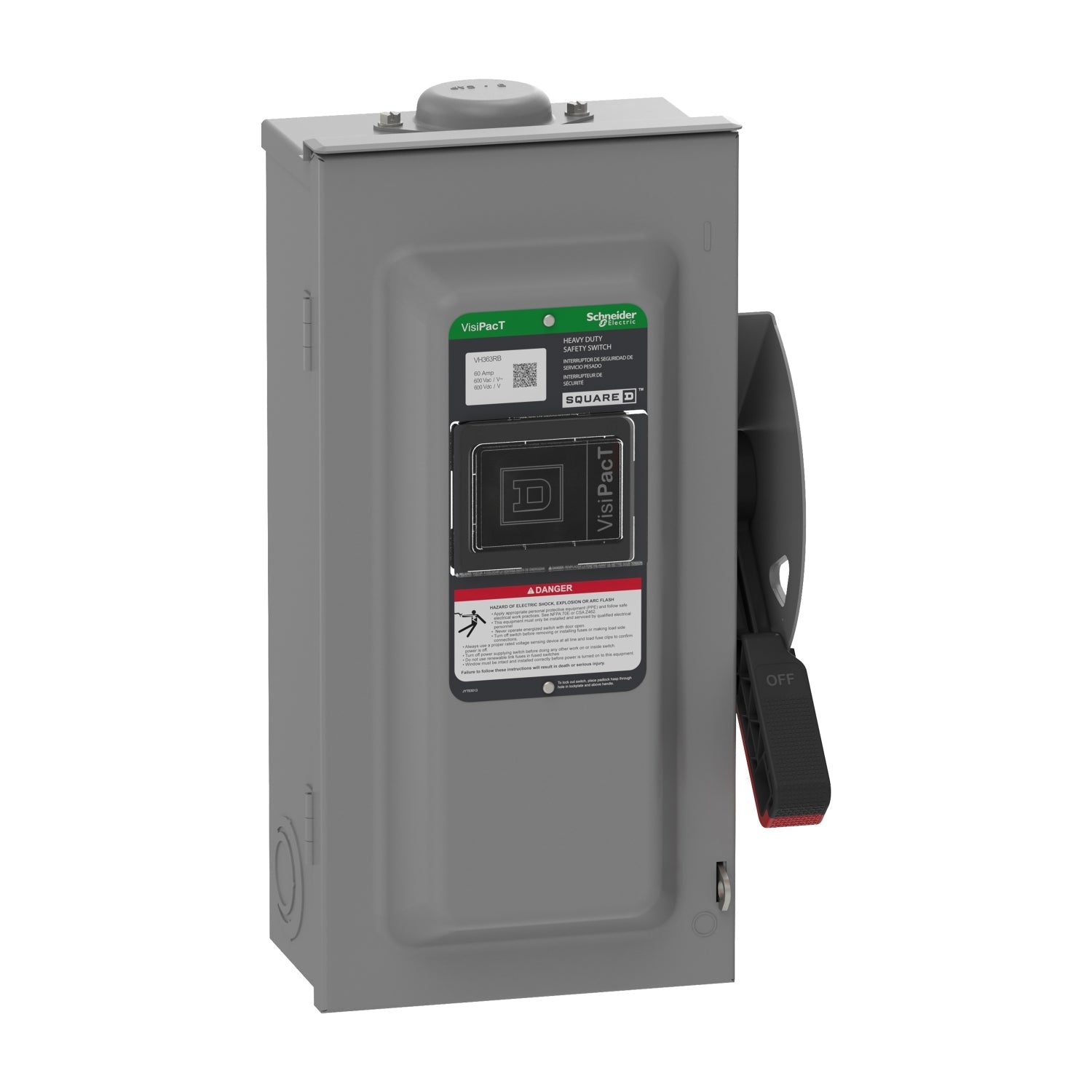

Square D VH363RB - Fusible Disconnect Switch 600V AC/DC 100A 3-Pole (NEMA 3R Enclosure)

Square D VH363RB is a fusible safety disconnect switch designed for reliable circuit protection and isolation in industrial power distribution systems. This heavy-duty switch features a 600V AC/DC voltage rating and 100A current capacity with three-pole single configuration for comprehensive phase protection. Constructed with rugged NEMA 3R rated enclosure measuring 9 x 22 inches and weighing 19.84 lb, it accommodates wire sizes from AWG 14 to AWG 1/0 for both aluminum and copper conductors. The switch complies with UL standard E2875 and EU RoHS certification requirements, ensuring safety and environmental compliance. Typical applications include industrial machinery, motor control centers, and electrical distribution panels where secure isolation and fuse protection are critical.

Key Features & Specifications

• Type: Fusible safety disconnect switch with visible blade mechanism
• Voltage Rating: 600V AC/DC
• Current Rating: 100A
• Dimensions: 9 in x 22 in
• Standards: UL listed file E2875, EU RoHS compliant
• Applications: Industrial power distribution, motor control centers, machinery isolation
• Switch Type: Safety disconnect
• Configuration: Single
• Poles: 3
• Phase: 3
• Wire: 3
• Wire Size: AWG 12 to AWG 1/0, AWG 14 to AWG 1/0, Aluminum/Copper
• Fuse Class: H, K, R, J
• Nema Rating: NEMA 3R
• Weight: 19.84 lb
• Country of Origin: United States
• Family: VH

Product Identification

• UPC: 060648589419
• GTIN: 03606485894195
