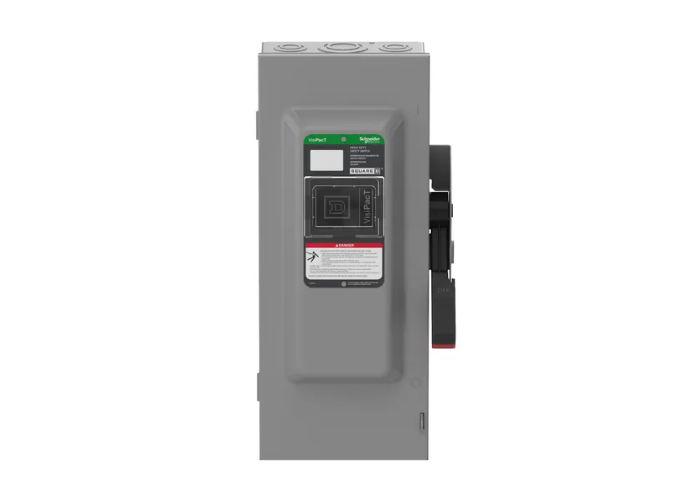

Square D VH363GL is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power circuits. It is rated for 600V AC and 100A, constructed within a robust NEMA 1 enclosure measuring 554.74 mm H x 226.31 mm W x 178.82 mm D and weighing 19.8 lb. The switch is UL listed (file E2994) and accommodates H, K, R, and J class fuses for flexible protection schemes. Its single-configuration, three-pole design is typically applied in motor control centers, industrial machinery, and power distribution panels where a secure and visible means of isolation is required.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, Single Configuration
Voltage Rating: 600V AC
Current Rating: 100A
Dimensions: 554.74 mm H x 226.31 mm W x 178.82 mm D (21.84 in x 8.91 in x 7.04 in)
Standards: UL Listed (File E2994)
Applications: Industrial power distribution, motor control, machinery isolation
Switch Style: Fusible
Configuration: Single
Phase: 3
Poles: 3
Fuse Class: H, K, R, J
Wire: 3
Nema Rating: NEMA 1
Weight: 19.8 lb
Country of Origin: United States
Product Identification
UPC: 060648589420
GTIN: 03606485894201
