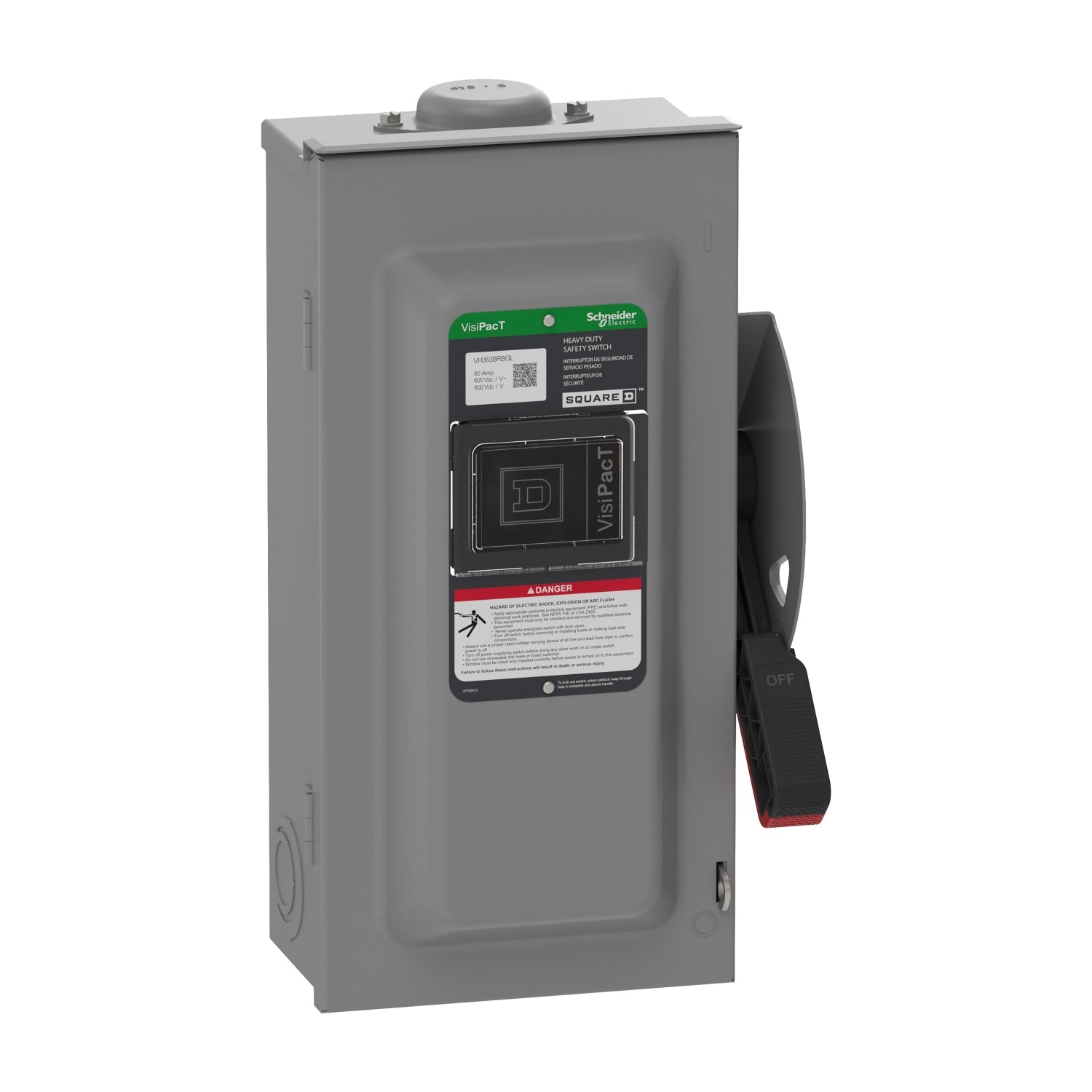

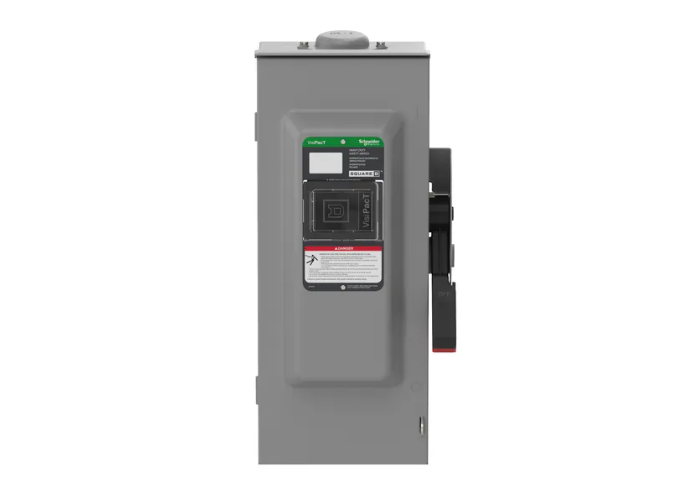

Square D VH363BRBGL is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power distribution systems. It is rated for 600V AC and 100A, constructed with a robust NEMA 3R enclosure measuring 561.4 mm H x 230.6 mm W x 178.3 mm D and weighing 18.691 lb for outdoor durability. The switch is UL listed (file E2992) and utilizes Class J fuses for high-interrupting capacity protection, making it suitable for applications such as motor control centers, HVAC systems, and industrial machinery disconnects.
Key Features & Specifications
Type: Fusible Safety Disconnect Switch, Single Configuration
Voltage Rating: 600V AC
Current Rating: 100A
Dimensions: 561.4 mm H x 230.6 mm W x 178.3 mm D (22.103 in x 9.08 in x 7.019 in)
Standards: UL Listed (File E2992), NEMA 3R Enclosure Rating
Applications: Industrial power distribution, motor disconnects, HVAC, machinery
Switch Style: Fusible
Configuration: Single
Phase: 3
Poles: 3
Fuse Class: J
Wire: 3
Country of Origin: United States
Weight: 18.691 lb
Product Identification
UPC: 060648589415
GTIN: 03606485894157
